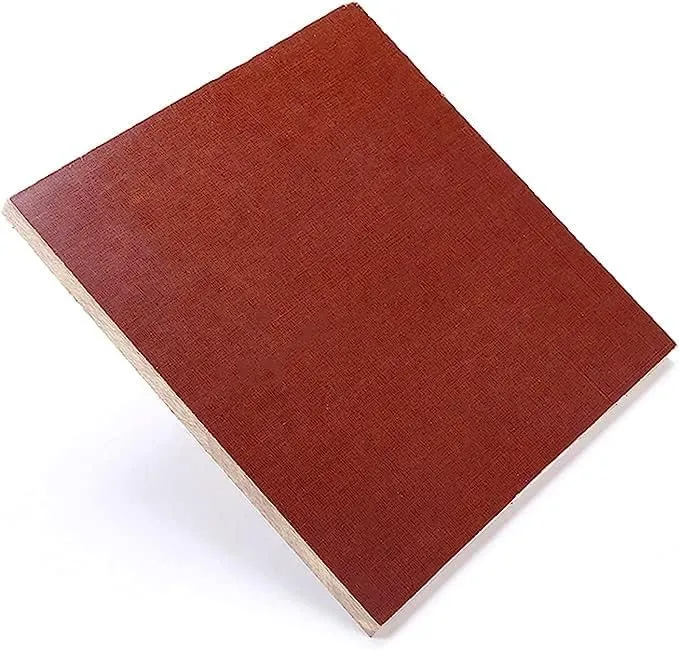

What Are the Steps in Phenolic Cotton Sheet Production?
Raw Material Preparation
The production of phenolic cotton sheets begins with the meticulous selection of raw materials. High-grade cotton fabric serves as the foundation, chosen for its strength, uniformity, and absorbency. This fabric undergoes a thorough cleaning process to remove any impurities that could compromise the final product's integrity. Concurrently, phenolic resin is prepared, typically through the condensation of phenol and formaldehyde. The resin formulation is carefully adjusted to achieve the desired properties in the finished sheet, such as heat resistance, electrical insulation, and mechanical strength.
Impregnation and Drying
Once the materials are prepared, the cotton fabric is fed through an impregnation bath filled with the liquid phenolic resin. This process ensures that the resin thoroughly penetrates the fabric fibers. The impregnated fabric then passes through precision-controlled rollers that remove excess resin and ensure an even distribution throughout the material. Following impregnation, the resin-saturated fabric enters a drying oven where it undergoes a gradual drying process. This step is crucial as it partially cures the resin, transforming the fabric into a semi-rigid state known as "prepreg" while maintaining its flexibility for subsequent processing.
Cutting and Layering
After drying, the prepreg material is carefully inspected for quality and then cut to the required dimensions. These cut sheets are then stacked in multiple layers, with the number of layers determined by the desired thickness of the final product. The stacking process requires precision to ensure uniform thickness and to prevent air pockets or misalignments that could weaken the finished sheet. Some manufacturers may incorporate additional materials between layers, such as special fabrics or films, to enhance specific properties of the final product.
Material Selection and Impregnation Process
Cotton Fabric Characteristics
The selection of cotton fabric is a critical factor in the production of high-quality phenolic cotton sheets. Manufacturers typically opt for woven cotton cloth with specific thread counts and weave patterns that provide the optimal balance of strength and resin absorption. The fabric's weight, measured in ounces per square yard, is carefully chosen to suit the intended application of the final product. Heavier fabrics generally result in stronger, more rigid sheets, while lighter fabrics may be used for applications requiring more flexibility or finer detail.
Phenolic Resin Formulation
The phenolic resin used in sheet production is a complex formulation that goes beyond basic phenol-formaldehyde chemistry. Advanced resins may incorporate additives to enhance specific properties such as flame retardancy, thermal stability, or chemical resistance. The molecular weight distribution of the resin is carefully controlled to achieve the optimal balance between flow characteristics during impregnation and the mechanical properties of the cured product. Some manufacturers may use modified phenolic resins or even hybrid systems that combine phenolic resins with other thermosetting polymers to achieve unique property profiles.
Impregnation Techniques
The impregnation process employs sophisticated equipment designed to ensure uniform resin distribution throughout the fabric. Modern impregnation lines may use multiple dip tanks or pressure impregnation chambers to achieve thorough penetration, especially for thicker or denser fabrics. The speed of fabric travel through the impregnation bath, the bath temperature, and the resin viscosity are all carefully controlled parameters. Some advanced processes may use vacuum-assisted impregnation to remove air from the fabric structure, allowing for more complete resin penetration and reducing the likelihood of voids in the final product.
Pressing and Curing Techniques for High-Quality Sheets
Hydraulic Press Operation
The pressing stage of phenolic cotton sheet production utilizes powerful hydraulic presses capable of exerting uniform pressure across large surface areas. These presses are equipped with heated platens that can maintain precise temperatures throughout the curing cycle. The pressure applied during this process can range from several hundred to several thousand pounds per square inch, depending on the specific formulation and desired properties of the final product. Advanced presses may incorporate computer-controlled systems that allow for complex pressure and temperature profiles to be applied during the curing cycle, optimizing the final product's properties.
Temperature Control and Curing Cycles
The curing process is a critical step that transforms the layered prepreg into a solid, unified sheet. Temperature control during curing is paramount, as it directly affects the rate and extent of the polymerization reaction. Typical curing temperatures range from 150°C to 180°C, but can vary based on the specific resin system used. The curing cycle may involve multiple stages, including an initial lower-temperature stage to allow for resin flow and air removal, followed by a higher-temperature stage to complete the cross-linking reaction. Some advanced processes may employ staged pressure cycles in conjunction with temperature control to further optimize the sheet's properties.
Post-Curing and Quality Control
After the primary curing process, many manufacturers subject the phenolic cotton sheets to a post-curing treatment. This additional heat exposure, often at temperatures slightly higher than the initial cure, helps to complete any residual cross-linking reactions and can improve the thermal stability and electrical properties of the final product. Following post-cure, the sheets undergo rigorous quality control checks. These may include dimensional measurements, hardness testing, electrical breakdown testing, and microscopic examination of cross-sections to ensure proper resin distribution and cure. Advanced non-destructive testing methods, such as ultrasonic inspection, may be employed to detect any internal defects or delaminations.
Conclusion
The manufacture of phenolic cotton sheets is a sophisticated process that combines traditional materials with advanced polymer science. From the careful selection of cotton fabrics to the precise control of resin chemistry and curing conditions, each step in the production process plays a crucial role in determining the final product's properties. As technology advances, manufacturers continue to refine these processes, developing new techniques to enhance product performance and consistency. The result is a versatile material that finds applications across various industries, from electrical insulation to aerospace components, testament to the enduring value of this engineered composite.
