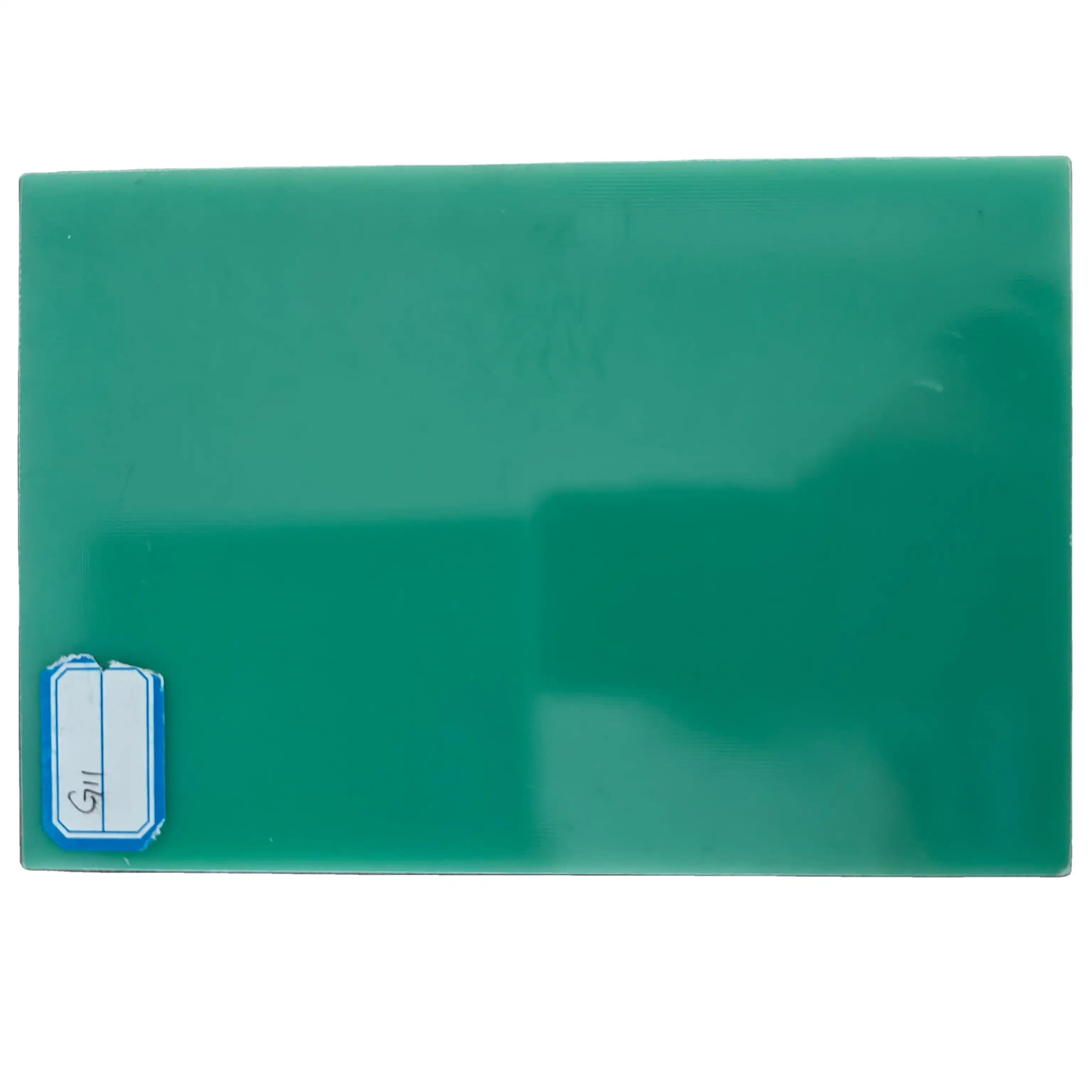

What Are the Key Steps in G11 Sheet Production?
Raw Material Selection and Preparation
The production of G11 sheets begins with the careful selection of raw materials. High-quality glass fibers, typically E-glass or S-glass, are chosen for their superior strength and electrical properties. The epoxy resin system is specially formulated to withstand high temperatures and provide excellent electrical insulation. These materials are meticulously prepared to ensure optimal performance in the final product.
Impregnation and Layering Process
The glass fibers are impregnated with the epoxy resin using advanced techniques to ensure uniform distribution. This creates prepreg sheets, which are then carefully layered according to specific design requirements. The number and orientation of layers significantly influence the final properties of the G11 sheet.
Curing and Pressing
The layered prepreg sheets are subjected to a controlled curing process in large hydraulic presses. Heat and pressure are applied precisely, allowing the epoxy resin to crosslink and bond with the glass fibers. This critical step determines the sheet's final thickness, density, and overall quality.
Mechanical and Electrical Testing Procedures
Mechanical Strength Evaluation
G11 sheets undergo comprehensive mechanical testing to confirm they meet strict industry performance standards. Tests such as flexural strength, tensile strength, and impact resistance are conducted using precision instruments to evaluate how the material responds to bending, stretching, and sudden forces. These assessments ensure that G11 sheets can endure mechanical stress without cracking or deforming. Such rigorous testing is critical for applications in high-performance environments, including switchgear, transformers, and industrial machinery, where structural reliability is essential for safe and long-lasting operation.
Electrical Insulation Tests
As a primary insulating material, G11 sheets are subjected to detailed electrical performance evaluations. Tests include dielectric strength measurement, volume resistivity determination, and arc resistance analysis, ensuring the material can reliably prevent current leakage and withstand high-voltage conditions. These procedures verify that the sheets maintain their insulating properties under various electrical stresses, including transient surges and continuous voltage loads. Such testing is vital for ensuring operational safety and performance in electrical distribution systems, power equipment, and other industrial applications where insulation failure could have serious consequences.
Thermal Stability Analysis
G11 sheets are renowned for their ability to maintain performance under elevated temperatures, and this property is rigorously tested. Heat deflection temperature (HDT) assessments and coefficient of thermal expansion (CTE) measurements evaluate the material’s resistance to thermal deformation and dimensional changes. These tests confirm that G11 sheets remain structurally sound and dimensionally stable even under prolonged heat exposure. Ensuring thermal stability is crucial for industrial applications where the material may experience continuous high temperatures, such as in motors, transformers, and other electrical components exposed to thermal stress.
Ensuring Quality and Performance for Industrial Use
Quality Control Measures
G11 sheets undergo rigorous quality control at every stage of production to guarantee consistent performance and reliability. This includes detailed inspection of raw materials, careful monitoring of resin impregnation and curing processes, and thorough evaluation of the finished sheets. Advanced techniques such as high-resolution imaging, ultrasonic testing, and other non-destructive methods are frequently used to detect internal voids, cracks, or inconsistencies. These measures ensure that only defect-free sheets reach industrial applications, maintaining the integrity and safety of high-voltage and structural components.
Performance Validation in Simulated Environments
To verify that G11 sheets can withstand real-world conditions, they are subjected to comprehensive simulated environmental testing. These tests often involve exposure to extreme temperatures, repeated thermal cycling, high humidity, and aggressive chemical environments. By replicating potential operational stresses, manufacturers can assess the sheets' long-term electrical insulation, mechanical stability, and dimensional integrity. This process ensures that G11 sheets will maintain their properties and reliability when installed in demanding industrial applications, from electrical switchgear to heavy-duty machinery.
Certification and Compliance
Ensuring compliance with industry standards is a critical step in validating the quality of G11 sheets. Manufacturers pursue certifications such as UL (Underwriters Laboratories) approval, NEMA (National Electrical Manufacturers Association) grade verification, and adherence to client-specific specifications. These certifications demonstrate that the material meets stringent safety, performance, and reliability criteria. By providing documented compliance, manufacturers give end-users confidence that G11 sheets are suitable for high-voltage, chemically challenging, and temperature-sensitive industrial environments, ensuring both safety and long-term operational performance.
Conclusion
The manufacturing and testing of G11 sheets is a complex process that combines advanced materials science with rigorous quality control. From the careful selection of raw materials to the final certification, every step is designed to produce a high-performance composite material. The extensive testing procedures ensure that G11 sheets meet the stringent requirements for electrical insulation, mechanical strength, and thermal stability across various industrial applications. As technology advances, the production and testing methods for G11 sheets continue to evolve, promising even better performance and reliability in the future.
FAQs
What makes G11 sheets different from other insulating materials?
G11 sheets offer superior thermal stability and electrical insulation properties, making them ideal for high-temperature and high-voltage applications.
How long do G11 sheets typically last in industrial applications?
With proper use and maintenance, G11 sheets can last for many years, often exceeding 20 years in some applications.
Can G11 sheets be customized for specific industrial needs?
Yes, G11 sheets can be tailored in terms of thickness, size, and specific properties to meet unique industrial requirements.
Trust J&Q for Premium G11 Sheets: Your Reliable Manufacturing Partner
At J&Q, we are a trusted G11 sheet manufacturer and supplier, leveraging over two decades of experience in insulating sheet production to deliver top-quality materials. Our state-of-the-art G11 sheet factory and rigorous testing procedures ensure that every sheet meets the highest industry standards. With our global reach as a reliable exporter and dedicated logistics support, we provide seamless service from production to delivery for industrial clients worldwide. For unparalleled quality and expertise in G11 sheets, contact us at info@jhd-material.com.
