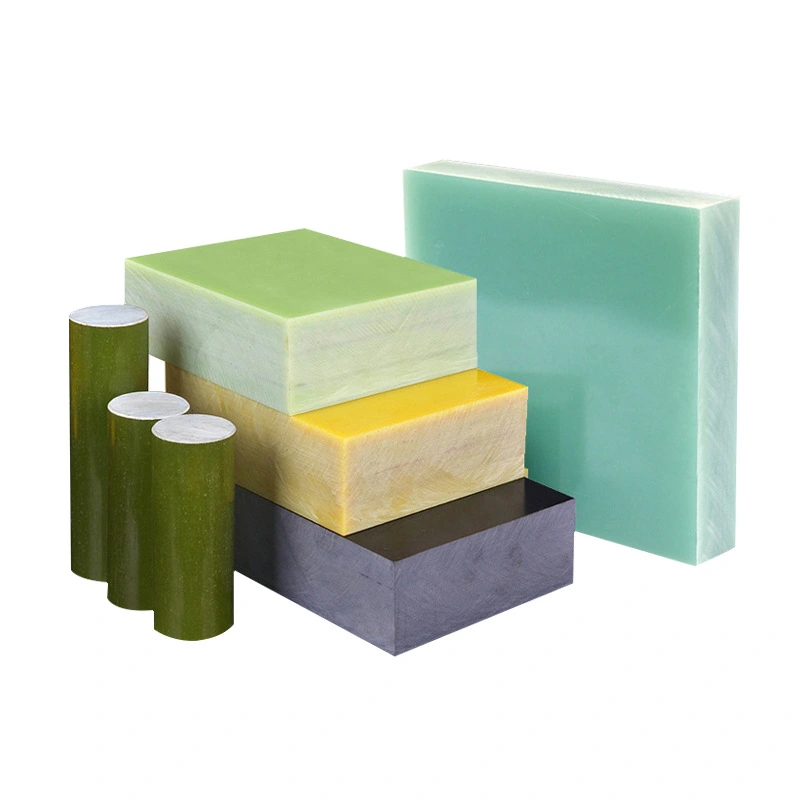

Why G10 Epoxy Sheet Performs Well in Harsh Environments?
Molecular Structure and Crosslinking
The exceptional performance of G10 epoxy sheet in harsh environments stems from its molecular structure. The epoxy resin used in G10 undergoes a curing process that results in extensive crosslinking between polymer chains. This highly crosslinked network creates a dense, tightly-packed structure that significantly impedes the penetration of moisture and chemicals. The strong covalent bonds formed during curing contribute to the material's stability and resistance to degradation, even when exposed to aggressive substances.
Fiberglass Reinforcement
The incorporation of fiberglass reinforcement in G10 epoxy sheet plays a crucial role in its ability to withstand harsh environments. The glass fibers, typically E-glass, are woven into a fabric and impregnated with epoxy resin. This composite structure not only enhances the mechanical strength of the material but also provides an additional barrier against moisture and chemical ingress. The fibers act as a tortuous path, forcing any penetrating substances to navigate a complex route through the material, thereby slowing their progress and limiting their impact on the overall structure.
Surface Properties
The surface characteristics of G10 epoxy sheet contribute significantly to its resistance against moisture and chemicals. The cured epoxy resin creates a smooth, non-porous surface that repels water and many chemical compounds. This hydrophobic nature prevents the absorption of moisture and reduces the likelihood of chemical reactions occurring at the surface. Additionally, the seamless integration of the glass fibers with the epoxy matrix eliminates potential weak points or pathways for moisture or chemical ingress, further enhancing the material's resistance to harsh environmental conditions.
Moisture Absorption and Chemical Resistance Characteristics
Low Moisture Absorption Rate
G10 epoxy sheet boasts an impressively low moisture absorption rate, typically less than 0.1% by weight over a 24-hour period. This minimal water uptake is attributed to the material's closed-cell structure and the hydrophobic nature of the epoxy resin. The low moisture absorption ensures that G10 maintains its dimensional stability and electrical insulation properties even in high-humidity environments. This characteristic is particularly valuable in applications where consistent performance is crucial, such as in electrical components or structural elements exposed to varying atmospheric conditions.
Broad Chemical Resistance Spectrum
The chemical resistance of G10 epoxy sheet extends across a wide spectrum of substances. It demonstrates excellent resistance to many acids, alkalis, organic solvents, and oils. This broad resistance spectrum is due to the inert nature of the cured epoxy resin and the protective barrier formed by the glass fibers. G10 can withstand prolonged exposure to common industrial chemicals without significant degradation of its mechanical or electrical properties. However, it's important to note that while G10 is highly resistant to many chemicals, it may show vulnerability to certain strong oxidizing agents or chlorinated compounds. Understanding the specific chemical environment is crucial for determining the suitability of G10 in a given application.
Temperature-Dependent Resistance Properties
The moisture and chemical resistance properties of G10 epoxy sheet are influenced by temperature. Generally, G10 maintains its excellent resistance characteristics across a wide temperature range, from cryogenic temperatures up to its maximum continuous operating temperature of approximately 155°C. At elevated temperatures, the mobility of polymer chains in the epoxy matrix may increase slightly, potentially affecting the material's resistance to certain chemicals. Conversely, at lower temperatures, the material becomes more rigid, which can enhance its barrier properties. Understanding these temperature-dependent characteristics is essential when selecting G10 for applications involving thermal cycling or extreme temperature conditions.
Longevity of G10 Epoxy Sheet Under Corrosive Conditions
Long-Term Performance in Corrosive Environments
G10 epoxy sheet demonstrates remarkable longevity when exposed to corrosive conditions. The material's inherent resistance to moisture and chemicals, combined with its high mechanical strength, allows it to maintain its integrity over extended periods. In industrial settings where exposure to corrosive substances is common, G10 often outperforms many metals and other composite materials. The epoxy matrix acts as a protective shield, preventing corrosive agents from reaching the reinforcing fibers. This protective mechanism ensures that the material's structural integrity and electrical properties remain largely unaffected, even after years of service in challenging environments.
Degradation Mechanisms and Prevention
While G10 epoxy sheet is highly resistant to degradation, prolonged exposure to certain conditions can lead to gradual deterioration. Potential degradation mechanisms include hydrolysis of the epoxy matrix in extremely humid environments, oxidation at elevated temperatures, and stress corrosion cracking under combined mechanical and chemical stress. To mitigate these risks, proper material selection and design considerations are crucial. Implementing protective measures such as surface coatings, optimizing part geometry to minimize stress concentrations, and ensuring proper ventilation in enclosed applications can significantly extend the service life of G10 components in corrosive environments.
Maintenance and Inspection Strategies
To ensure the continued performance and longevity of G10 epoxy sheet in corrosive conditions, implementing effective maintenance and inspection strategies is essential. Regular visual inspections can help identify early signs of surface degradation or discoloration. Non-destructive testing techniques, such as ultrasonic inspection or dielectric strength measurements, can be employed to assess the material's internal integrity and electrical properties over time. Establishing a baseline of material properties at installation and conducting periodic comparisons can help track any gradual changes in performance. Additionally, maintaining clean surfaces and minimizing exposure to UV radiation can help preserve the material's protective properties and extend its service life in corrosive environments.
Conclusion
G10 epoxy sheet stands out as a superior material for applications requiring exceptional resistance to moisture and chemicals. Its unique composition of epoxy resin and fiberglass reinforcement creates a synergistic barrier against environmental degradation. The material's low moisture absorption, broad chemical resistance, and ability to maintain its properties under varying conditions make it an invaluable choice for demanding industrial applications. By understanding G10's performance characteristics and implementing appropriate maintenance strategies, engineers and designers can leverage its benefits to create durable, long-lasting solutions in challenging environments.
