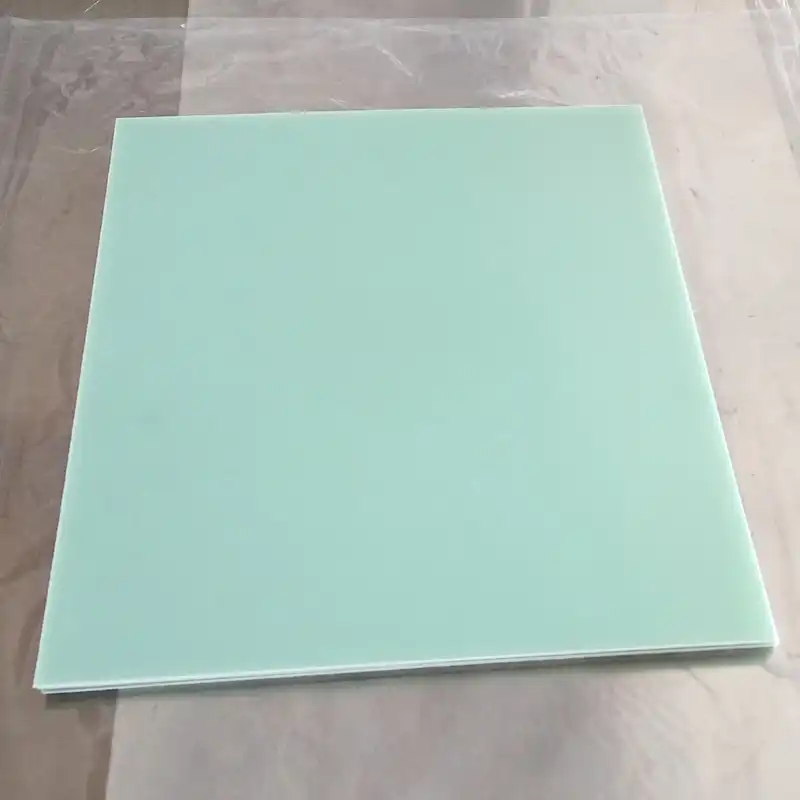

What Makes G10 Epoxy Sheet Resistant to Heat and Flame?
Chemical Composition and Structure
G10 epoxy sheet's resistance to heat and flame stems from its unique chemical composition and structure. The material consists of multiple layers of glass fabric reinforcement bonded together with epoxy resin. This combination creates a dense, cross-linked polymer matrix that inherently resists thermal degradation. The glass fibers provide structural support and act as a barrier to heat transfer, while the epoxy resin forms a protective char layer when exposed to high temperatures.
Thermal Decomposition Process
When subjected to heat, G10 epoxy sheet undergoes a controlled thermal decomposition process. As the temperature rises, the epoxy resin begins to degrade, forming a carbonaceous char layer on the surface. This char acts as an insulating barrier, slowing down heat transfer to the underlying layers and protecting the material's core. The glass fibers within the laminate further contribute to this process by maintaining structural integrity and preventing the material from collapsing or deforming under heat stress.
Flame Retardant Additives
Many G10 epoxy sheet formulations incorporate flame retardant additives to enhance their fire-resistant properties. These additives work through various mechanisms, such as releasing flame-inhibiting gases, promoting char formation, or absorbing heat energy. The synergistic effect of these additives with the base material significantly improves the overall flame retardancy of G10 epoxy sheet, making it suitable for use in environments with stringent fire safety requirements.
Comparing G10 Epoxy Sheet with Other Low-Flame Insulation Materials
Thermal Performance Comparison
When compared to other low-flame insulation materials, G10 epoxy sheet demonstrates superior thermal performance. Its ability to withstand high temperatures without significant degradation surpasses that of many conventional insulation materials. While materials like polyurethane foam or polystyrene may begin to soften or melt at relatively low temperatures, G10 epoxy sheet maintains its structural integrity and insulating properties at much higher temperature ranges. This thermal stability makes it particularly valuable in applications where sustained exposure to heat is a concern.
Flame Spread and Smoke Generation
G10 epoxy sheet outperforms many traditional insulation materials in terms of flame spread and smoke generation. Unlike some polymer-based insulations that can rapidly propagate flames and produce thick, toxic smoke, G10 epoxy sheet exhibits low flame spread characteristics and minimal smoke production. This property is crucial in confined spaces or areas where rapid evacuation may be necessary in the event of a fire. The reduced smoke generation also enhances visibility and reduces the risk of smoke inhalation, further contributing to overall safety.
Long-Term Durability and Reliability
In terms of long-term durability and reliability, G10 epoxy sheet stands out among low-flame insulation materials. Its resistance to environmental factors such as moisture, chemicals, and UV radiation ensures that its flame-retardant properties remain effective over extended periods. Unlike some organic insulation materials that may degrade or lose their fire-resistant properties over time, G10 epoxy sheet maintains its performance characteristics throughout its service life, providing consistent protection in low flame retardancy environments.
Performance Benefits of G10 Epoxy Sheet in Safety-Critical Applications
Electrical Insulation in High-Temperature Environments
G10 epoxy sheet excels in providing electrical insulation in high-temperature environments, a critical requirement in many safety-critical applications. Its high dielectric strength and low dielectric constant remain stable even when exposed to elevated temperatures. This property makes G10 epoxy sheet an ideal choice for insulating components in electrical systems operating under extreme conditions, such as those found in power generation facilities or industrial machinery. The material's ability to maintain its insulating properties under thermal stress contributes significantly to the overall safety and reliability of these systems.
Structural Integrity Under Fire Conditions
In safety-critical applications where structural integrity during fire events is paramount, G10 epoxy sheet demonstrates exceptional performance. The material's high mechanical strength and dimensional stability are retained even when exposed to intense heat. This characteristic is particularly valuable in aerospace and transportation industries, where the ability to maintain structural integrity under fire conditions can be life-saving. G10 epoxy sheet's resistance to warping, delamination, and thermal expansion ensures that critical components remain functional during emergency situations, providing valuable time for safety measures to be implemented.
Chemical Resistance in Hazardous Environments
G10 epoxy sheet's excellent chemical resistance complements its flame-retardant properties, making it suitable for use in hazardous environments where both fire and chemical exposure are concerns. The material's resistance to a wide range of chemicals, including acids, alkalis, and solvents, ensures that its flame-retardant properties are not compromised by exposure to corrosive substances. This dual resistance is particularly beneficial in industrial settings where chemical processes and fire risks coexist, providing a reliable barrier against multiple potential hazards.
Conclusion
G10 epoxy sheet emerges as a superior material for low flame retardancy insulation environments, offering a unique combination of thermal stability, flame resistance, and mechanical strength. Its performance in safety-critical applications underscores its value in industries where fire safety is paramount. As advancements in material science continue, G10 epoxy sheet remains at the forefront of flame-retardant materials, providing reliable protection and peace of mind in challenging environments. Its versatility and proven track record make it an indispensable component in the design of fire-safe systems and structures.
FAQs
What is the maximum temperature G10 epoxy sheet can withstand?
G10 epoxy sheet can typically withstand temperatures up to 140°C (284°F) continuously.
Is G10 epoxy sheet suitable for outdoor applications?
While G10 epoxy sheet has good weather resistance, prolonged exposure to UV radiation can affect its properties. For outdoor use, additional UV protection may be necessary.
How does G10 epoxy sheet compare to G11 in terms of flame retardancy?
Both G10 and G11 offer excellent flame retardancy, with G11 generally having slightly better high-temperature performance.
Experience the Superior Performance of G10 Epoxy Sheet with J&Q
At J&Q, we bring over two decades of expertise in manufacturing and supplying high-quality G10 epoxy sheets. Our commitment to excellence and global reach ensure that you receive top-tier products for your low flame retardancy insulation needs. With our own logistics company, we offer seamless, one-stop service from production to delivery. Discover the J&Q difference in G10 epoxy sheet performance. Contact us at info@jhd-material.com for more information or to place an order.
