Can FR4 Withstand UV Exposure and Moisture?
UV Resistance Properties of FR4
FR4 epoxy sheet possesses inherent UV resistance due to its composite structure. The glass fiber reinforcement and epoxy resin matrix work synergistically to mitigate UV degradation. While prolonged exposure may lead to surface yellowing, the core properties of FR4 remain largely unaffected, ensuring continued performance in outdoor settings.
Moisture Absorption Characteristics
One of FR4's notable attributes is its low moisture absorption rate. The material's tightly cross-linked epoxy structure limits water ingress, maintaining dimensional stability and electrical properties even in humid conditions. This characteristic is crucial for outdoor applications where moisture exposure is inevitable.
Impact of Combined UV and Moisture Exposure
When subjected to both UV radiation and moisture, FR4 epoxy sheet demonstrates remarkable resilience. The synergistic effect of these environmental factors may accelerate surface degradation over time, but the material's core functionality remains intact for extended periods, making it suitable for long-term outdoor use.
Weather Resistance and Long-Term Durability
Temperature Cycling and Thermal Shock Resistance
FR4 epoxy sheet demonstrates outstanding resistance to temperature cycling and thermal shock, making it highly suitable for outdoor applications. Its polymer matrix, reinforced with glass fibers, maintains structural integrity and electrical insulation even under repeated heating and cooling cycles. This stability ensures that mechanical properties such as flexural strength and rigidity are preserved, while dielectric performance remains consistent. Consequently, FR4 can endure environmental extremes without warping, cracking, or electrical degradation, contributing to the long-term reliability of outdoor installations.
Chemical Resistance in Outdoor Settings
The chemical resistance of FR4 epoxy sheet is a key factor in its durability in outdoor environments. The material can withstand exposure to acids, bases, oils, and other environmental pollutants without significant degradation. This property prevents corrosion, swelling, or surface deterioration, maintaining both mechanical and electrical performance over time. By resisting chemical attack, FR4 ensures reliable insulation and structural stability for components such as electrical housings, signage, and protective panels, even in industrial, coastal, or heavily polluted outdoor conditions.
Weathering Effects on Mechanical Properties
Prolonged exposure to sunlight, moisture, and varying temperatures can impact surface characteristics of FR4 epoxy sheet, such as minor discoloration or superficial roughness. However, the material’s core mechanical properties remain highly stable due to the glass fiber reinforcement within its matrix. Flexural strength, impact resistance, and dimensional stability are largely unaffected, ensuring that components maintain performance integrity over long periods. This resilience makes FR4 a dependable choice for outdoor structural elements and electrical applications subjected to continuous environmental stress.
Outdoor Applications for FR4 Epoxy Sheet
Electrical Enclosures and Junction Boxes
FR4 epoxy sheet’s excellent electrical insulation properties, combined with its resistance to moisture, UV radiation, and temperature fluctuations, make it an ideal choice for outdoor electrical enclosures and junction boxes. These applications require protection of sensitive components from rain, dust, and extreme weather while ensuring safe operation. FR4’s durability helps prevent electrical failures, corrosion, and material degradation, making it suitable for long-term outdoor use in utility systems, renewable energy installations, and other critical infrastructure.
Signage and Display Panels
FR4 epoxy sheet provides a stable, weather-resistant substrate for outdoor signage and display panels. Its dimensional stability prevents warping, while UV-resistant properties help retain color and appearance over time. The material also withstands mechanical stress, temperature swings, and moisture exposure, ensuring that signs remain legible and structurally sound. This combination of properties makes FR4 suitable for billboards, informational displays, and decorative panels, maintaining aesthetic quality and functional reliability in outdoor environments over extended periods.
Structural Components in Harsh Environments
Industries such as marine, aerospace, and telecommunications often rely on FR4 epoxy sheet for structural components exposed to harsh outdoor conditions. Its mechanical strength allows it to endure physical loads, while chemical and weather resistance prevent degradation from saltwater, humidity, and UV exposure. FR4 maintains its integrity under temperature fluctuations and prolonged environmental stress, providing dependable performance in demanding applications. This reliability ensures long-term operational stability for components such as brackets, mounts, and protective housings in challenging outdoor environments.
Conclusion
FR4 epoxy sheet demonstrates remarkable performance in outdoor environments, showcasing its versatility beyond traditional indoor applications. Its resistance to UV radiation, moisture, and temperature fluctuations, coupled with excellent chemical resistance and mechanical stability, makes it a reliable choice for various exterior uses. While prolonged exposure to harsh outdoor conditions may gradually affect its surface properties, FR4 maintains its core functionality and structural integrity for extended periods. This resilience positions FR4 as a valuable material for outdoor electrical enclosures, signage, and structural components in demanding environments, offering a balance of durability, safety, and performance.
FAQs
What is FR4 epoxy sheet?

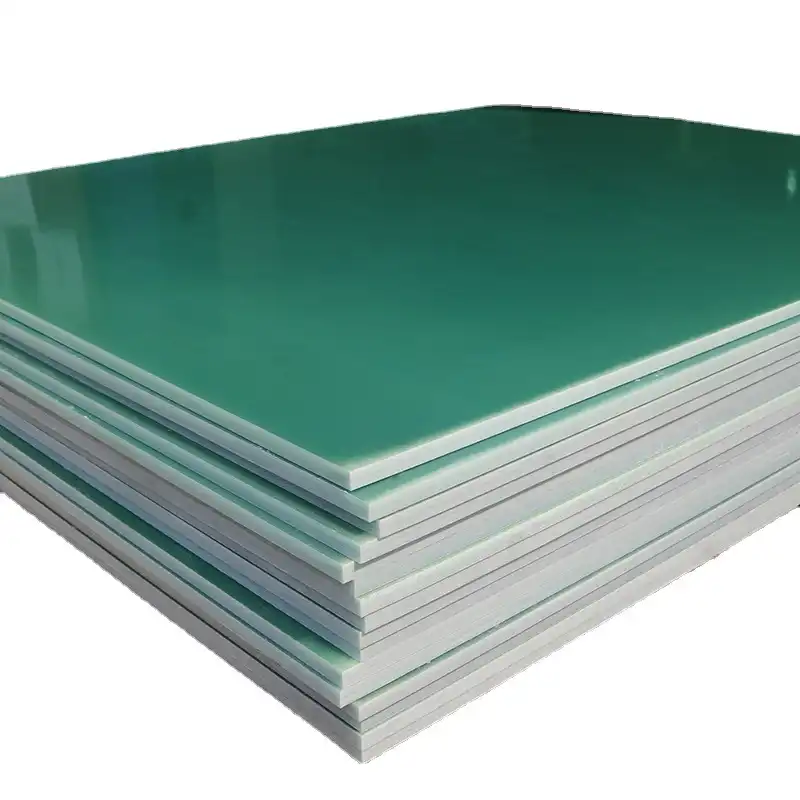

FR4 epoxy sheet is a composite material made of fiberglass reinforced with epoxy resin, known for its flame-retardant properties and excellent electrical insulation.
How long can FR4 epoxy sheet last in outdoor environments?
While performance can vary depending on specific conditions, FR4 epoxy sheet can maintain its core properties for several years in outdoor settings.
Is FR4 epoxy sheet suitable for marine applications?
Yes, FR4's resistance to moisture and chemicals makes it suitable for certain marine applications, particularly in electrical systems and structural components.
Choose J&Q for Your FR4 Epoxy Sheet Needs
J&Q, with over 20 years of experience in producing and selling insulating sheets, operates a reliable insulating sheet factory offering high-quality FR4 epoxy sheets suitable for diverse outdoor applications. Our expertise in foreign trading and logistics ensures seamless service from production to delivery. For more information about our FR4 epoxy sheets and their outdoor performance, contact us at info@jhd-material.com.
