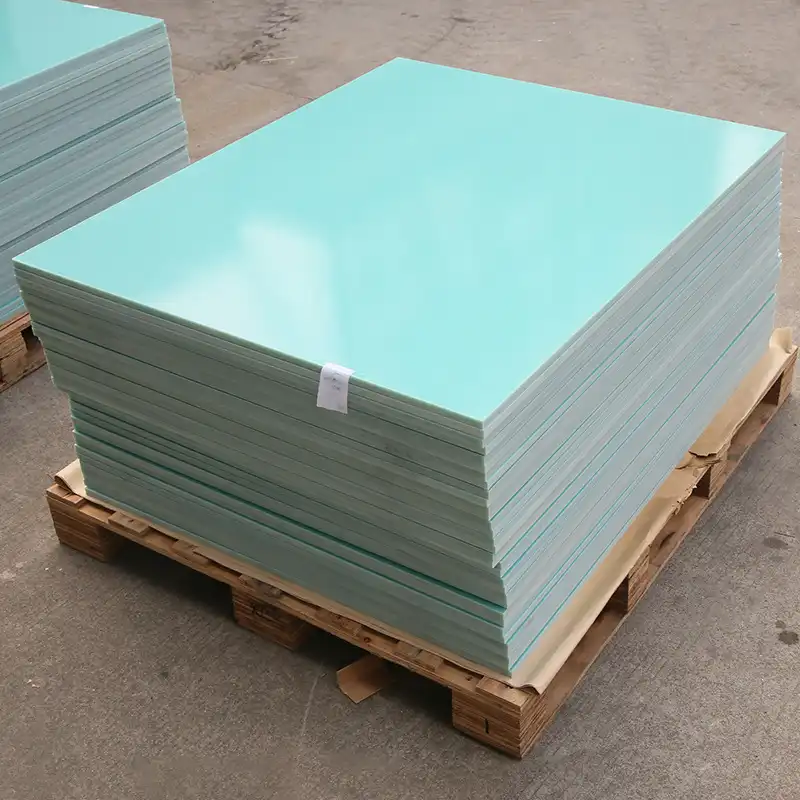

What Performance Properties Make FR4 Epoxy Sheet Reliable?
Exceptional Electrical Insulation
FR4 epoxy sheet is widely recognized for its exceptional electrical insulation properties, establishing it as a primary material in printed circuit board (PCB) manufacturing. Its low dielectric constant minimizes signal loss and distortion, which is critical for high-frequency applications, while the high breakdown voltage effectively prevents current leakage, thereby safeguarding circuit integrity. This reliable insulation is essential for reducing electromagnetic interference and ensuring stable performance in sensitive electronic devices. By maintaining consistent electrical characteristics under various operating conditions, FR4 significantly enhances the durability and safety of products, from everyday gadgets to advanced telecommunications equipment, making it a trusted choice across the electronics industry.
Mechanical Robustness
The mechanical robustness of FR4 epoxy sheet is largely attributed to its glass fiber reinforcement, which creates a durable composite structure capable of withstanding substantial physical stress. This design offers superior resistance to bending, impact, and vibration, ensuring that mounted components stay securely in place even in demanding environments like automotive or aerospace systems. Additionally, the material's exceptional dimensional stability helps maintain precise tolerances during fabrication and throughout the product's operational life, reducing the risk of mechanical failure. Such reliability supports long-term functionality and minimizes maintenance needs, contributing to the widespread use of FR4 in applications where mechanical endurance is paramount.
Thermal Endurance
FR4 epoxy sheet demonstrates remarkable thermal endurance, with standard grades reliably operating at temperatures up to 130°C and specialized variants capable of enduring even higher thermal loads. This heat resistance prevents common issues such as warping, delamination, or degradation of electrical properties, which are crucial for preserving circuit reliability in thermally challenging settings. The material's ability to perform consistently across a broad temperature spectrum makes it suitable for diverse applications, ranging from consumer electronics to industrial machinery and automotive systems. Excellent thermal management ensures that FR4-based products remain stable and efficient, extending their service life and supporting use in variable climatic conditions.
Durability and Efficiency Advantages of FR4 Epoxy Sheet
Flame Retardant Properties
One of the key durability features of FR4 epoxy sheet is its inherent flame retardancy. The "FR" in its name stands for "Flame Retardant," indicating its ability to self-extinguish and prevent fire propagation. This crucial safety characteristic not only enhances product reliability but also ensures compliance with stringent safety regulations across various industries.
Moisture Resistance
FR4 epoxy sheet exhibits excellent resistance to moisture absorption, maintaining its electrical and mechanical properties even in humid conditions. This moisture resistance prevents issues such as delamination, corrosion, and electrical shorts, which could otherwise compromise the longevity and performance of electronic devices. The material's stability in varying humidity levels contributes to its efficiency in diverse operating environments.
Chemical Inertness
The chemical inertness of FR4 epoxy sheet adds another layer to its durability profile. This material resists degradation from exposure to various chemicals, solvents, and oils commonly encountered in industrial and consumer applications. Such resistance ensures that products maintain their integrity and functionality over extended periods, even when subjected to harsh chemical environments or cleaning processes.
FR4 Epoxy Sheet as a Cost-Reduction Strategy in Manufacturing
Streamlined Production Processes
Incorporating FR4 epoxy sheet into manufacturing processes can lead to significant cost reductions. Its excellent machinability allows for efficient cutting, drilling, and shaping, reducing production time and labor costs. The material's consistent quality and dimensional stability minimize reject rates and rework, further optimizing production efficiency and reducing overall manufacturing expenses.
Extended Product Lifespan
The durability and reliability of FR4 epoxy sheet translate directly into extended product lifespans. This longevity reduces the frequency of replacements and repairs, resulting in lower long-term costs for both manufacturers and end-users. The material's resistance to environmental factors and wear ensures that products maintain their performance characteristics over time, enhancing customer satisfaction and reducing warranty claims.
Versatility and Material Consolidation
FR4 epoxy sheet's versatility allows it to replace multiple materials in various applications, leading to inventory simplification and cost savings. Its broad range of properties makes it suitable for use in diverse products, from simple insulators to complex multi-layer PCBs. This versatility enables manufacturers to consolidate their material stocks, streamline supply chains, and potentially negotiate better pricing through increased volume purchases of a single material.
Conclusion
FR4 epoxy sheet stands out as a crucial material in enhancing product reliability and reducing manufacturing costs across various industries. Its exceptional electrical, mechanical, and thermal properties ensure durable and efficient products, while its flame retardancy and resistance to moisture and chemicals further bolster its reliability. From a cost perspective, FR4 epoxy sheet offers streamlined production processes, extended product lifespans, and material consolidation opportunities. As industries continue to seek high-performance, cost-effective solutions, FR4 epoxy sheet remains an invaluable asset in achieving these goals.
FAQs
1. What makes FR4 epoxy sheet an ideal choice for PCB manufacturing?
FR4 epoxy sheet is ideal for PCB manufacturing due to its excellent electrical insulation, mechanical strength, and thermal stability. It provides a reliable substrate for circuit traces and components, ensuring long-term performance and durability of electronic devices.
2. How does FR4 epoxy sheet contribute to cost reduction in manufacturing?
FR4 epoxy sheet reduces costs by streamlining production processes, extending product lifespans, and allowing for material consolidation. Its ease of machining, consistent quality, and versatility lead to improved efficiency and reduced long-term expenses.
Enhance Your Product Reliability and Cut Costs with J&Q's FR4 Epoxy Sheet
J&Q, with over 20 years of experience in insulating sheet production and 10 years in foreign trade, offers premium FR4 epoxy sheets to improve your product reliability and reduce costs. Our extensive industry knowledge and in-house logistics company ensure seamless, one-stop service for all your FR4 epoxy sheet needs. For more information about our high-quality FR4 epoxy sheets and customized solutions, contact our expert team at info@jhd-material.com.
