Properties and Composition of G10 and G11 Materials
Chemical Composition and Manufacturing Process
G10 and G11 materials are both composite laminates made from epoxy resin reinforced with glass fibers. The manufacturing process involves impregnating glass fabric layers with epoxy resin and subjecting them to high pressure and heat. This process creates a dense, uniform material with excellent mechanical and electrical properties.
The key contrast lies in the particular detailing of the epoxy tar utilized. G11 consolidates a adjusted epoxy gum that improves its warm resistance and warm solidness. This adjustment permits G11 to keep up its properties at higher temperatures compared to G10.
Mechanical Properties
Both G10 sheet and G11 materials exhibit impressive mechanical properties, including high tensile strength, flexural strength, and compressive strength. G10 typically offers slightly higher mechanical strength at room temperature, making it an excellent choice for structural applications.
G11, whereas still having strong mechanical properties, is outlined to keep up its quality and dimensional solidness at lifted temperatures. This characteristic makes G11 especially profitable in high-temperature situations where G10 might start to relax or debase.
Electrical Properties
G10 and G11 are renowned for their exceptional electrical insulation properties. Both materials offer high dielectric strength, low dielectric constant, and excellent arc resistance. These properties make them ideal for use in electrical and electronic applications where insulation is crucial.
While G10 is often the go-to choice for many electrical applications due to its slightly better insulation properties at room temperature, G11 maintains its electrical characteristics more effectively at higher temperatures.
Applications and Performance Comparison
Industrial and Electrical Applications

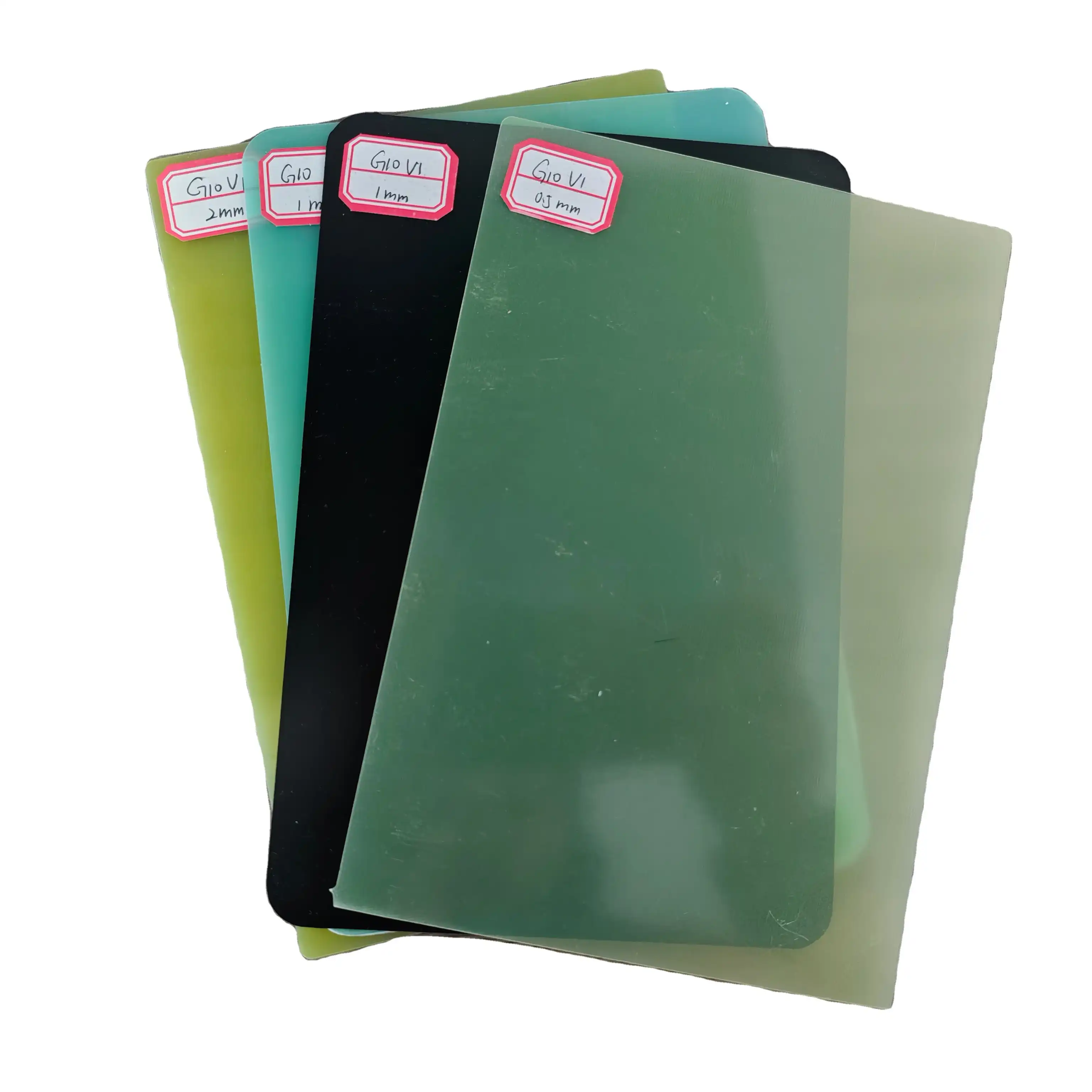

G10 sheet and G10 epoxy sheet find extensive use in various industrial and electrical applications. They are commonly employed in the manufacture of circuit boards, switchgear components, transformer parts, and electrical insulators. The material's combination of electrical insulation and mechanical strength makes it ideal for these applications.
G11, with its upgraded warm resistance, is frequently favored in high-temperature electrical situations. It's commonly utilized in applications such as engine cover, high-temperature transformers, and electrical components in mechanical broilers or heaters.
Aerospace and Automotive Industries
Both G10 and G11 materials have found their put in the aviation and car businesses. G10 is regularly utilized in auxiliary components, radomes, and non-load-bearing parts due to its fabulous strength-to-weight proportion and protection properties.
G11, with its superior heat resistance, is particularly valuable in these industries for applications near heat sources. It's used in components close to engines, exhaust systems, and other high-temperature areas where maintaining dimensional stability is crucial.
Performance in Extreme Environments
When it comes to performance in extreme environments, G11 generally has the edge over G10. While G10 performs exceptionally well in a wide range of conditions, its properties begin to degrade at temperatures above 130°C (266°F).
G11, on the other hand, can maintain its mechanical and electrical properties at temperatures up to 180°C (356°F). This higher temperature resistance makes G11 the preferred choice for applications in harsh, high-temperature environments where G10 might not be suitable.
Cost-Benefit Analysis and Selection Criteria
Cost Considerations
When considering G10 and G11 materials, cost is an important factor to take into account. Generally, G10 is more cost-effective due to its simpler formulation and wider availability. The G10 sheet and G10 epoxy sheet are produced in larger quantities, which often translates to lower prices.
G11, with its specialized formulation for high-temperature applications, tends to be more expensive. However, in applications where high-temperature performance is crucial, the additional cost of G11 can be justified by its superior performance and longevity in extreme conditions.
Performance vs. Cost Trade-offs
Selecting between G10 and G11 regularly includes adjusting execution necessities with budget imperatives. For applications working at room temperature or direct conditions, G10 regularly gives the best esteem, advertising great execution at a lower taken a toll.
In high-temperature situations or applications where long-term dimensional steadiness beneath warm is vital, the higher taken a toll of G11 is frequently balanced by its predominant execution and longer benefit life. The choice between G10 and G11 ought to be based on a cautious assessment of the particular application prerequisites and working conditions.
Selection Criteria for Specific Applications
When choosing between G10 and G11 materials, consider the following criteria:
- Operating Temperature: If the application involves temperatures above 130°C, G11 is likely the better choice.
- Mechanical Strength Requirements: For applications prioritizing mechanical strength at room temperature, G10 might be preferable.
- Electrical Insulation Needs: Both materials offer excellent electrical insulation, but G11 maintains these properties better at high temperatures.
- Dimensional Stability: For applications requiring precise dimensional stability under varying temperatures, G11 has the advantage.
- Cost Constraints: If budget is a primary concern and high-temperature performance is not critical, G10 often provides the best value.
- Environmental Conditions: Consider factors like humidity, chemical exposure, and thermal cycling when making your selection.
Conclusion
The choice between G10 sheet and G11 materials depends on the specific requirements of your application. G10 excels in providing excellent mechanical and electrical properties at room temperature, making it a versatile and cost-effective choice for many applications. G11, with its superior heat resistance and thermal stability, is the go-to material for high-temperature environments where maintaining properties is crucial. By carefully considering factors such as operating temperature, mechanical requirements, electrical needs, and budget constraints, you can make an informed decision that ensures optimal performance and longevity for your specific application.
