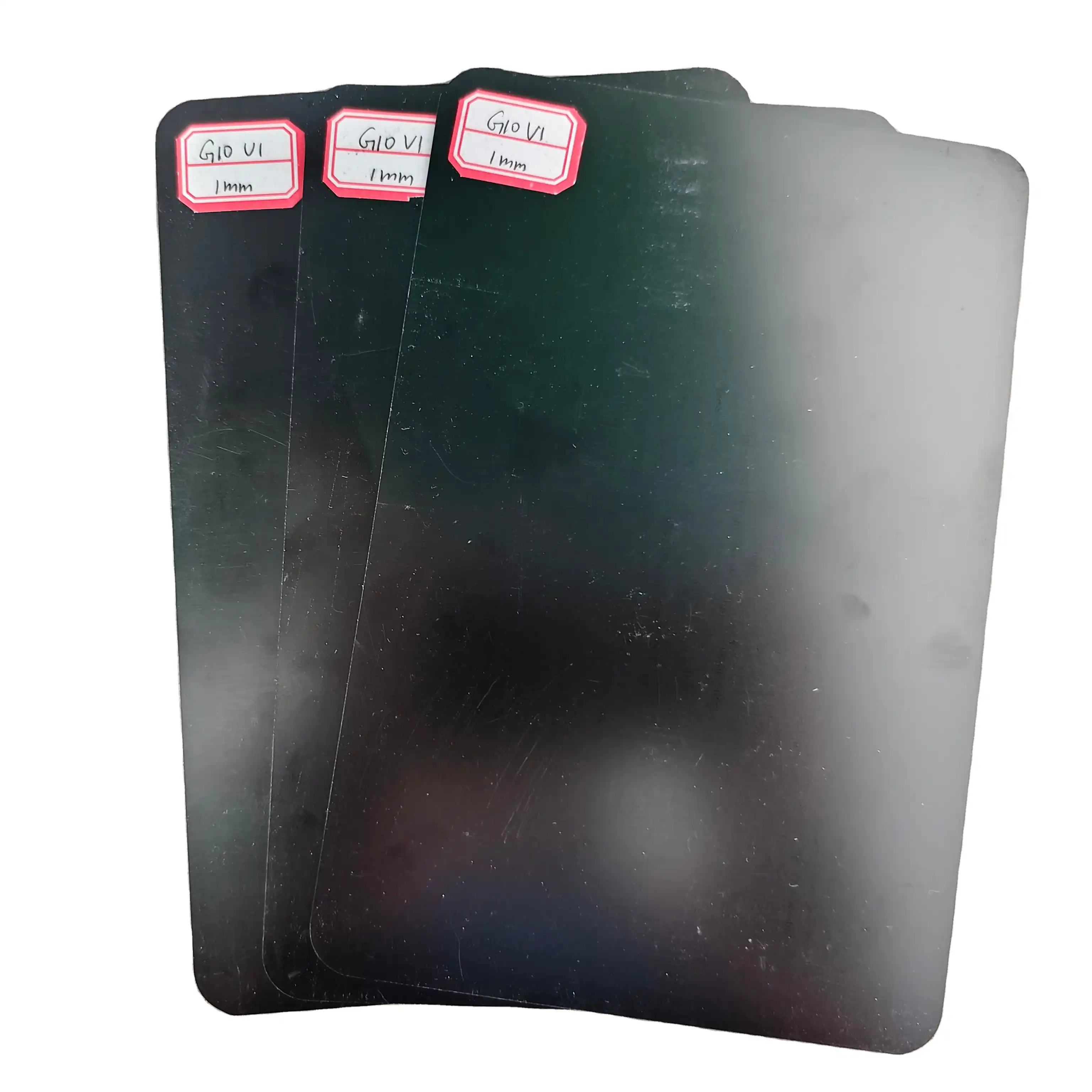

What Are the Key Components of G10 Sheet?
Glass Fiber Reinforcement
The exceptional strength and stability of G10 sheets primarily stem from their glass fiber reinforcement. These fibers, usually made from high-grade E-glass, are woven into multi-directional layers that evenly distribute stress and resist deformation under load. This fiber structure provides excellent tensile and flexural strength, enabling G10 to endure significant mechanical forces without cracking or warping. Additionally, the glass fibers enhance dimensional stability, ensuring consistent performance in applications requiring precision and long-term structural reliability.
Epoxy Resin Matrix
The epoxy resin matrix serves as the cohesive element that binds the glass fibers into a unified, durable composite. During manufacturing, the thermoset epoxy penetrates and encapsulates the fiber layers, eliminating air pockets and creating a dense, homogeneous structure. This matrix not only reinforces the laminate’s mechanical strength but also contributes to its superior electrical insulation and resistance to chemicals and moisture. The epoxy's cross-linked molecular network ensures long-lasting durability, making G10 ideal for use in electrical, marine, and industrial environments.
Additives and Modifiers
To tailor G10 sheets for specific performance requirements, various additives and modifiers are integrated into the resin system. Flame retardants are commonly included to enhance fire resistance, while UV stabilizers protect the material from sunlight degradation in outdoor applications. Colorants or pigments may also be added to improve identification or aesthetic appeal. In certain formulations, anti-static agents or impact modifiers are introduced to boost functionality. These enhancements make G10 an adaptable material suitable for diverse industrial and engineering applications.
How Material Composition Influences Mechanical and Thermal Properties?
Impact on Strength and Rigidity
The interplay between glass fibers and epoxy resin significantly influences G10's strength and rigidity. The glass fibers provide high tensile strength and stiffness, while the epoxy resin ensures efficient load transfer between fibers. This synergistic effect results in a composite material with exceptional mechanical properties, including high flexural strength and compressive strength, making G10 sheets suitable for load-bearing applications.
Thermal Stability and Insulation
G10's composition also plays a crucial role in its thermal properties. The epoxy resin's cross-linked structure contributes to excellent thermal stability, allowing G10 to maintain its mechanical properties over a wide temperature range. Additionally, the glass fibers' low thermal conductivity, combined with the epoxy matrix, results in superior thermal insulation capabilities, making G10 an ideal choice for applications requiring thermal management.
Electrical Insulation Characteristics
The unique material composition of G10 sheets imparts outstanding electrical insulation properties. The glass fibers are inherently non-conductive, while the epoxy resin provides a high dielectric strength. This combination results in a material with excellent electrical resistance and low dielectric loss, making G10 sheets highly valued in electrical and electronic applications where insulation is critical.
Industrial Advantages of High-Strength G10 Material
Aerospace and Aviation Applications
In aerospace and aviation, G10 material is highly valued for its exceptional strength-to-weight ratio and mechanical stability. It is frequently used in aircraft interior panels, insulation boards, and structural reinforcements, helping to reduce overall weight while maintaining safety and durability. The material resists thermal cycling, vibration, and environmental stress, ensuring consistent performance at varying altitudes and temperatures. G10's resistance to moisture and chemical exposure also prevents degradation, making it an ideal choice for both commercial and defense aviation systems.
Electrical and Electronics Sector
Within the electrical and electronics industry, G10 sheet plays a vital role as an insulating and structural material. Its superior dielectric strength and low moisture absorption make it ideal for printed circuit boards, transformer spacers, and high-voltage insulating parts. G10's thermal stability ensures that electronic components maintain performance even under high operating temperatures. Additionally, its mechanical rigidity prevents deformation during assembly, guaranteeing precision in manufacturing. These combined properties make G10 indispensable for reliable and long-lasting electrical and electronic applications.
Marine and Automotive Industries
In marine and automotive environments, G10's resistance to corrosion, saltwater, and humidity provides a significant advantage over traditional materials. It is used for manufacturing hull reinforcements, electrical insulators, and structural brackets that must endure vibration and constant exposure to the elements. Its lightweight yet strong composition contributes to improved fuel efficiency and handling in vehicles and boats. Furthermore, G10’s dimensional stability and mechanical toughness ensure components retain integrity over time, supporting safety and performance in demanding, high-moisture operating conditions.
Conclusion
The exceptional strength of G10 material stems from its unique composition of glass fibers and epoxy resin. This synergistic combination results in a high-performance composite that offers superior mechanical properties, electrical insulation, and chemical resistance. The versatility of G10 sheets makes them invaluable across various industries, from aerospace to electronics. As manufacturers continue to seek materials that offer strength, lightweight properties, and reliability, G10 remains at the forefront of composite technology, driving innovation and performance in countless applications.
FAQs
What makes G10 sheets so strong?
G10's strength comes from its composite structure of woven glass fibers and epoxy resin, providing high tensile strength and durability.
How does G10 compare to other materials in terms of electrical insulation?
G10 offers excellent electrical insulation properties, making it superior to many other materials for high-voltage applications.
Can G10 sheets be customized for specific applications?
Yes, G10 sheets can be tailored with various additives to enhance specific properties like flame retardancy or UV resistance.
What industries benefit most from using G10 sheets?
Aerospace, electrical, marine, and automotive industries particularly benefit from G10's unique combination of properties.
Experience the Strength of G10 Sheets with J&Q
At J&Q, we leverage over 20 years of experience in producing and selling high-quality insulating sheets, including G10. Our expertise in foreign trade and logistics ensures seamless service from production to delivery. For unparalleled strength and performance in your applications, choose J&Q as your trusted G10 sheet supplier and manufacturer. Contact us at info@jhd-material.com to explore how our G10 sheets can elevate your projects.
