G10 Epoxy Sheet vs FR4: Which Insulation Material Should You Choose?

When it comes to choosing the best insulating material for your electrical or mechanical projects, the choice between FR4 epoxy sheet and G10 epoxy sheet might be quite important. Both materials are great insulation properties, but they have different features that make them better for different uses. Most people agree that G10 epoxy sheet is better than other types of epoxy sheet when it comes to mechanical strength, thermal stability, and moisture resistance. This makes it perfect for high-performance use in tough conditions. FR4 epoxy sheet, on the other hand, is more cost-effective and more common in the electronics industry, especially for printed circuit boards (PCBs). Your pick should be based on your needs, such as the temperature at which it will be used, the amount of mechanical stress it can handle, and your budget. To pick a wise option that works for your project, think about things like how well it works with electricity, how stable it is in size, and how easy it is to machine.

Understanding G10 Epoxy Sheet and FR4 Epoxy Sheet

Composition and Manufacturing Process

Both G10 epoxy sheet and FR4 epoxy sheet are composite materials, however they are made in different ways and have different compositions. Most of the time, G10 is created from a glass fabric with a continuous filament that has been soaked in an epoxy resin system. To make this glass fabric, several sheets are stacked on top of each other and compressed under great pressure and temperature to make a thick, even substance.

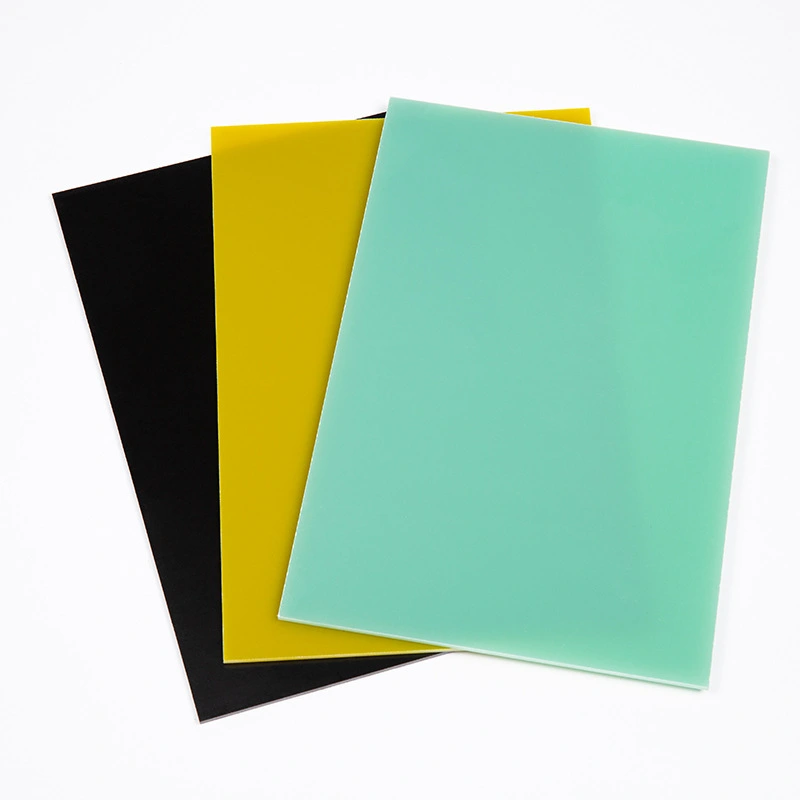

FR4, on the other hand, is made of woven fiberglass cloth that has been soaked in an epoxy resin that stops flames from spreading. The "FR" in FR4 stands for "Flame Retardant," and the "4" tells you what kind of material it is. The procedure for making FR4 is identical to that for G10, except flame-retardant chemicals are added to make it more fire-resistant.

Physical Properties and Characteristics

G10 epoxy sheetis noted for its great electrical insulation, low moisture absorption, and high mechanical strength. It keeps its shape and structure over a wide variety of temperatures and doesn't change much in size as the environment changes. These features make G10 perfect for uses that need great performance and dependability in tough conditions.

FR4 epoxy sheet is mostly appreciated for its ability to resist flames, but it also has strong electrical and mechanical qualities. It has a lower dielectric constant than G10, which can be helpful in some electronic uses. FR4 is a common choice for building PCBs since it is usually more flexible and easier to manufacture than G10.

Thermal and Electrical Performance

G10 and FR4 epoxy sheets both do a great job of insulating electricity, but they don't work the same way when it comes to heat. Compared to FR4, G10 usually has a stronger heat resistance and can keep its qualities at higher temperatures. This means that G10 is better for uses that involve high temperatures or thermal cycling.

When it comes to electrical performance, G10 usually has a higher dielectric strength and volume resistivity than FR4. But FR4's lower dielectric constant can be helpful in high-frequency situations when keeping the signal clean is very important. The precise electrical needs of the application frequently determine which of the two materials to choose.

Applications and Industry Uses

G10 Epoxy Sheet Applications

G10 epoxy sheet is widely used in fields that need high-performance shielding materials. In aerospace and defense uses, where dependability in harsh conditions is very important, it is often used. Also, precise parts for mechanical and electrical systems are made from G10. These include insulators, bushings, and washers.

In the energy industry, G10 is preferred because it is good at keeping electricity from flowing and can handle hard conditions. It is used to make parts for transformers, to insulate switches, and for high-voltage uses. Being dimensionally stable and not absorbing much water makes the material perfect for use in wet or muggy places.

In addition, G10 epoxy sheet is used in the car industry for a variety of insulating parts and in the building of industrial machinery that needs to be strong and not conduct electricity. Because it can be used in many different ways and is strong, engineers choose it when they need solid performance in tough situations.

FR4 Epoxy Sheet Applications

FR4 epoxy sheet is mostly used in the electronics business. Printed circuit boards (PCBs) are the most common thing that it is used for. Because it doesn't catch fire and is cheap and good at conducting electricity, the material is commonly used for PCB substrates in household electronics, telecommunications equipment, and industrial control systems.

FR4 is not only used to make PCBs, but also electrical casings, terminal blocks, and insulating parts for many different kinds of electronics. Because it is cheap and easy to machine, it is a good material for making a lot of electrical parts and assemblies.

In the car industry, FR4 is used for electrical connectors and parts of the dashboard. The flame-retardant qualities of the material are very useful in places where fire safety is important, like in public transportation systems and the inside of airplanes.

Comparative Advantages in Different Industries

There are a number of things to consider when comparing G10 and FR4 epoxy sheetsin different fields. G10 has better mechanical properties and thermal stability than other materials used in aerospace and defense, especially for parts that have to work in harsh circumstances. In these important uses, the material's dependability and performance make up for its higher cost.

Because it is cost-effective and has balanced properties, FR4 is the most popular material for making PCBs in the electronics business. But because it is better at handling electricity and heat, G10 may be better for high-frequency or high-temperature electronic uses.

Most of the time, the choice between G10 and FR4 for industrial machinery and equipment relies on the needs of the job. When parts need to be able to handle a lot of mechanical stress or work in difficult conditions, G10 is usually the best choice. On the other hand, FR4 might be better for less demanding uses or when fire resistance is the most important thing.

G10 is the best material for use in the energy industry, especially for high-voltage uses, because it is more resistant to moisture and has better dielectric strength. On the other hand, FR4 can be used in lower-voltage situations or when flame resistance is very important.

Factors Influencing Material Selection

Performance Requirements

Performance needs are very important when choosing between G10 epoxy sheet and FR4 epoxy sheet. Engineers have to think about the specific needs of their job, like the amount of mechanical stress, the need for electricity insulation, and the weather. When it comes to mechanical strength, G10 usually does better than FR4, which means it can be used in places where there is a lot of stress or pressure. Since G10 has a higher dielectric strength and a lower loss tangent, it may be a better choice for better electrical protection, especially at high voltages or frequencies.

Another important factor is thermal stability. G10 keeps its properties at higher temperatures and keeps its shape better when temperatures change, which is important for uses where temps change. Even though FR4 has good thermal qualities, it might not be a good choice for places with very high or very low temperatures

For applications where fire safety is paramount, FR4's inherent flame-retardant properties give it an advantage. However, it's important to note that flame-retardant versions of G10 are also available for applications requiring both high performance and fire resistance.

Cost Considerations

Cost is often a significant factor in material selection, and it's an area where FR4 typically has an advantage over G10. FR4 is generally less expensive to produce and is available in larger quantities due to its widespread use in the electronics industry. This can make FR4 more attractive for large-scale production or applications where budget constraints are a primary concern.

However, it's crucial to consider the total cost of ownership rather than just the initial material cost. G10 epoxy sheet's superior durability and performance in harsh environments may result in longer component lifespans and reduced maintenance costs, potentially offsetting its higher initial price in certain applications.

Additionally, the cost difference between G10 and FR4 can vary depending on the specific grade or formulation required. High-performance versions of FR4 may approach the cost of standard G10, while specialized grades of G10 can be significantly more expensive.

Environmental and Regulatory Considerations

Environmental impact and regulatory compliance are increasingly important factors in material selection. Both G10 and FR4 epoxy sheets are thermoset materials, which means they cannot be melted and recycled like thermoplastics. However, both materials are durable and long-lasting, which can contribute to reduced waste over time.

FR4's flame-retardant properties are achieved through the addition of specific chemicals, some of which have faced scrutiny due to environmental concerns. Regulations regarding flame retardants vary by region and application, so it's essential to ensure compliance with relevant standards when selecting materials.

G10, while not inherently flame-retardant, can be formulated to meet specific fire safety standards without the use of controversial additives. This can be an advantage in applications where environmental considerations are paramount.

Both materials may be subject to regulations governing electrical and electronic equipment, such as RoHS (Restriction of Hazardous Substances) in the European Union. Ensure that the specific grade of material you choose complies with all applicable regulations for your intended application and market.

Conclusion

Application needs determine whether to use G10 or FR4 epoxy sheet. G10 performs well in high-performance applications that require mechanical strength, thermal stability, and electrical characteristics. FR4, flame-retardant and cost-effectiveness, is the standard for PCBs and many electronic applications. Consider operating environment, performance needs, budget limits, and regulatory requirements while choosing. You can choose the insulation material that best meets your project goals and ensures performance and reliability by carefully examining these factors.
