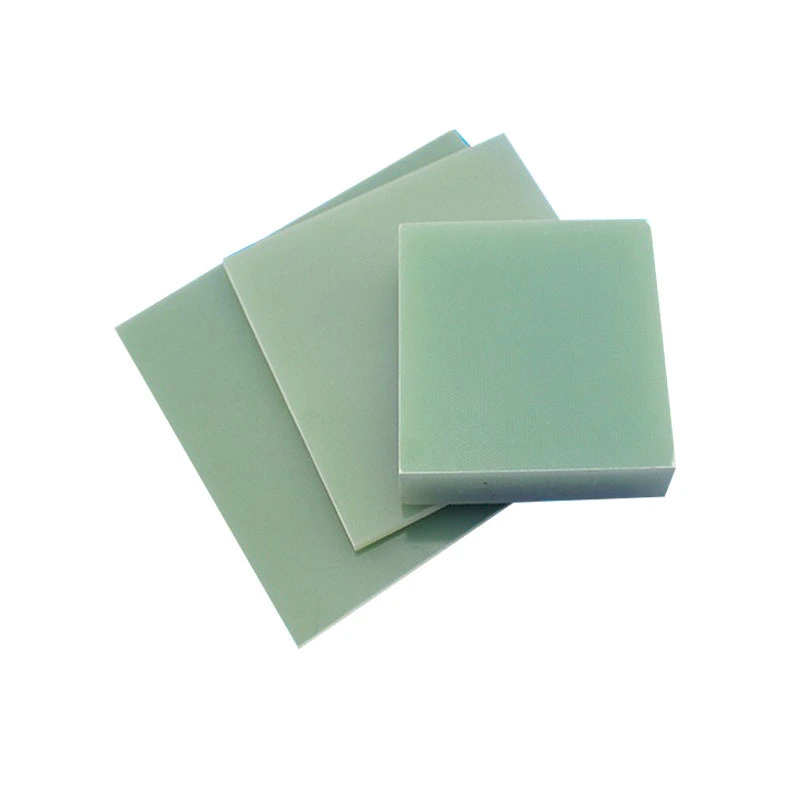

What Defines the Structural Strength of G10 Epoxy Sheets?
Composition and Manufacturing Process
G10 epoxy sheets derive their remarkable strength from a meticulous manufacturing process. High-quality glass fibers are precisely woven into a cloth, which is then thoroughly impregnated with epoxy resin. This composite undergoes a carefully controlled curing process under heat and pressure, resulting in a dense, void-free material with exceptional structural integrity. The intricate interplay between the glass reinforcement and the epoxy matrix creates a synergy that amplifies the material's overall strength.
Mechanical Properties and Performance
The mechanical prowess of G10 epoxy sheets is truly impressive. These materials boast a tensile strength typically exceeding 40,000 psi, coupled with a compressive strength of around 65,000 psi. Their flexural strength, often surpassing 75,000 psi, ensures they can withstand significant bending forces without failure. The material's high impact resistance and dimensional stability further contribute to its structural reliability across a wide range of temperatures and environmental conditions.
Environmental Resistance and Durability
G10 epoxy sheets exhibit remarkable resilience against environmental factors. Their low moisture absorption rate, typically less than 0.1% over 24 hours, ensures dimensional stability even in humid conditions. The material's resistance to a broad spectrum of chemicals, including acids, alkalis, and solvents, enhances its longevity in corrosive environments. Additionally, G10 sheets maintain their mechanical properties at elevated temperatures, with some grades capable of continuous operation at temperatures up to 140°C.
Electrical Insulation and Dielectric Performance Explained
Dielectric Strength and Breakdown Voltage
G10 epoxy sheets excel in electrical insulation, boasting impressive dielectric strength. This property, often exceeding 500 volts per mil, ensures the material can withstand high voltage gradients without electrical breakdown. The sheet's ability to maintain its insulative properties under various environmental conditions makes it a reliable choice for critical electrical applications. The high breakdown voltage of G10 sheets provides an essential safety margin in high-voltage systems.
Volume and Surface Resistivity
The electrical insulation capabilities of G10 epoxy sheets are further enhanced by their high volume and surface resistivity. With volume resistivity often exceeding 10^16 ohm-cm and surface resistivity surpassing 10^14 ohms, these materials effectively prevent current leakage and maintain electrical isolation. This characteristic is crucial in applications where maintaining signal integrity and preventing electromagnetic interference is paramount.
Frequency Dependence and Loss Tangent
G10 epoxy sheets demonstrate excellent performance across a wide frequency range, making them suitable for various electronic and RF applications. The material's low dielectric constant, typically around 4.5 at 1 MHz, minimizes signal distortion and propagation delays in high-frequency circuits. Additionally, the low dissipation factor or loss tangent of G10 sheets ensures minimal energy loss in alternating electric fields, contributing to the overall efficiency of electrical systems.
Applications Requiring G10 Epoxy Sheet Durability and Precision
Aerospace and Aviation Industry
In the aerospace sector, G10 epoxy sheets find extensive use due to their exceptional strength-to-weight ratio and electrical insulation properties. These materials are employed in aircraft structural components, electrical panels, and insulating bushings. Their ability to withstand extreme temperatures and resist moisture absorption makes them ideal for both interior and exterior applications in aircraft design. G10 sheets also play a crucial role in radar systems and avionics, where their consistent dielectric properties ensure reliable performance.
Electrical Power Generation and Distribution
The power industry relies heavily on G10 epoxy sheets for various insulation applications. These materials are used in transformer construction, switchgear components, and high-voltage bushings. Their high dielectric strength and excellent arc resistance make them indispensable in maintaining the safety and reliability of power distribution systems. G10 sheets also find application in the manufacturing of circuit breakers and isolators, where their mechanical strength and electrical insulation properties are equally critical.
Precision Engineering and Automotive Applications
G10 epoxy sheets are increasingly utilized in precision engineering applications, particularly in the automotive industry. Their dimensional stability and machinability make them suitable for creating precise components such as gears, bearings, and spacers. In electric and hybrid vehicles, G10 sheets are employed in battery insulation systems and motor components, where their combination of electrical insulation and mechanical strength is paramount. The material's resistance to chemicals and lubricants further enhances its suitability for various automotive applications.
Conclusion
G10 epoxy sheets represent a remarkable fusion of strength and electrical insulation, making them an indispensable material across numerous industries. Their unique combination of high mechanical strength, excellent dielectric properties, and environmental resistance positions them as a versatile solution for challenging applications. As industries continue to push the boundaries of performance and reliability, G10 epoxy sheets stand ready to meet these evolving demands, offering engineers and designers a material that excels in both structural integrity and electrical isolation.
FAQs
What makes G10 epoxy sheets unique?
G10 epoxy sheets are unique due to their exceptional combination of high mechanical strength, excellent electrical insulation properties, and resistance to environmental factors. They offer a rare blend of durability, dielectric performance, and versatility that makes them suitable for a wide range of applications across various industries.
Can G10 epoxy sheets be used in marine environments?
Yes, G10 epoxy sheets are well-suited for marine applications due to their excellent resistance to moisture absorption and corrosion. They are often used in boat construction, marine electrical systems, and underwater equipment.
Choose J&Q for Your G10 Epoxy Sheet Needs
At J&Q, we bring over two decades of expertise in manufacturing and supplying top-quality insulating sheets, including G10 epoxy sheets. Our global presence and extensive experience in foreign trade ensure we can meet your specific requirements with precision and reliability. As a leading G10 epoxy sheet supplier and manufacturer, we offer comprehensive solutions backed by our in-house logistics company. For more information about our G10 epoxy sheet products, contact us at info@jhd-material.com.
