How Effective Is G10 Epoxy Sheet as an Electrical Insulator?
Unparalleled Insulation Properties

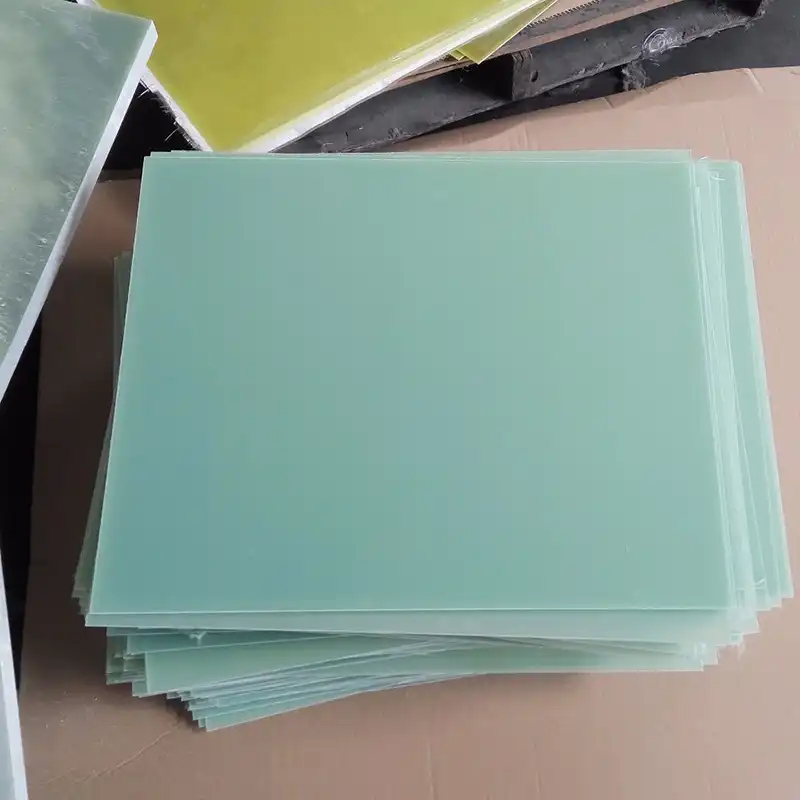

G10 epoxy sheet exhibits extraordinary effectiveness as an electrical insulator. Its unique composition of woven glass fabric impregnated with epoxy resin creates a dense, uniform structure that impedes electron flow. This results in a material with superior insulation capabilities, capable of withstanding high voltages without breakdown.
Consistency Across Varying Conditions
One of the hallmarks of G10 epoxy sheet is its consistent performance across a wide range of environmental conditions. Unlike some insulators that may degrade in humid or high-temperature environments, G10 maintains its insulating properties admirably. This stability makes it an excellent choice for applications where reliability is paramount.
Long-Term Durability
The longevity of G10 epoxy sheet as an insulator is noteworthy. Its resistance to aging, chemical attack, and moisture absorption means that it can provide effective insulation for extended periods without significant degradation. This durability translates to reduced maintenance and replacement costs in industrial applications.
Dielectric Strength and Thermal Endurance of G10 Epoxy Sheet
Impressive Dielectric Strength
G10 epoxy sheet demonstrates remarkable dielectric strength, typically ranging from 800 to 1000 volts per mil, making it highly suitable for high-voltage electrical applications. Its ability to resist electrical breakdown ensures that strong electric fields do not cause current leakage or compromise insulation integrity. This property is essential in transformers, switchgear, and motor components, where reliable insulation under extreme voltages is critical. The high dielectric strength of G10 confirms its effectiveness as a premium insulating material for industrial and commercial electrical systems.
Temperature Resilience
Thermal endurance is a defining feature of G10 epoxy sheet, allowing it to maintain both mechanical and electrical performance in high-temperature environments. It can operate continuously at temperatures up to 130°C (266°F), with short-term exposure tolerances reaching even higher levels. This stability ensures that insulation remains effective under thermal stress, preventing degradation or failure. Engineers rely on G10 in applications where consistent performance is required under fluctuating or elevated temperatures, such as in power electronics, industrial motors, and high-performance electrical systems.
Low Dielectric Loss
G10 epoxy sheet exhibits low dielectric loss, meaning it converts minimal electrical energy into heat when subjected to alternating currents. This characteristic is especially important in high-frequency applications, such as telecommunications, RF circuits, and precision instrumentation, where energy efficiency and thermal management are critical. By minimizing energy dissipation, G10 reduces the risk of overheating and helps maintain the stability of electrical systems. Its combination of low dielectric loss and strong insulation properties makes it an ideal material for both industrial and sensitive electronic applications.
Industrial Benefits of G10 Epoxy Sheet in Electrical Systems
Versatility in Application
G10 epoxy sheet offers exceptional versatility, making it indispensable in a variety of industrial electrical systems. Its combination of high dielectric strength, mechanical robustness, and thermal resistance allows engineers to employ it in diverse applications, including circuit boards, transformers, switchgear components, and motor insulation. The material’s adaptability enables it to meet the specific demands of multiple sectors, from heavy industry to consumer electronics, providing consistent performance while simplifying material selection and standardization across different electrical systems.
Enhanced Safety and Reliability
Incorporating G10 epoxy sheet into electrical systems significantly improves both safety and operational reliability. Its superior dielectric strength minimizes the risk of electrical breakdown, while its flame-retardant performance, compliant with UL94 V-0 standards, enhances fire safety. The material maintains stable properties under fluctuating temperatures, humidity, and mechanical stress, ensuring consistent performance over time. This reliability reduces the likelihood of system failures, protects sensitive equipment, and contributes to safer industrial environments, making G10 a trusted choice for critical electrical applications.
Cost-Effective Long-Term Solution
Although the upfront cost of G10 epoxy sheet may be higher than some alternative materials, its long-term advantages often justify the investment. Its durability and resistance to wear, thermal stress, and chemical degradation reduce the frequency of replacements and maintenance downtime. Additionally, the material’s excellent insulating properties improve energy efficiency in electrical systems, potentially lowering operational costs over time. These combined benefits make G10 epoxy sheet a cost-effective solution for industries seeking reliable, long-lasting, and efficient electrical system components.
Conclusion
G10 epoxy sheet stands as a paragon of electrical insulation performance, offering a unique blend of high dielectric strength, thermal endurance, and mechanical robustness. Its effectiveness across varied environmental conditions, coupled with long-term durability, positions it as an indispensable material in modern electrical systems. As industries continue to demand more from their insulation materials, G10 epoxy sheet rises to the challenge, providing reliable, efficient, and versatile solutions for a wide array of applications.
