Preparation and Cutting Techniques for FR4 Sheets
Material Selection and Inspection

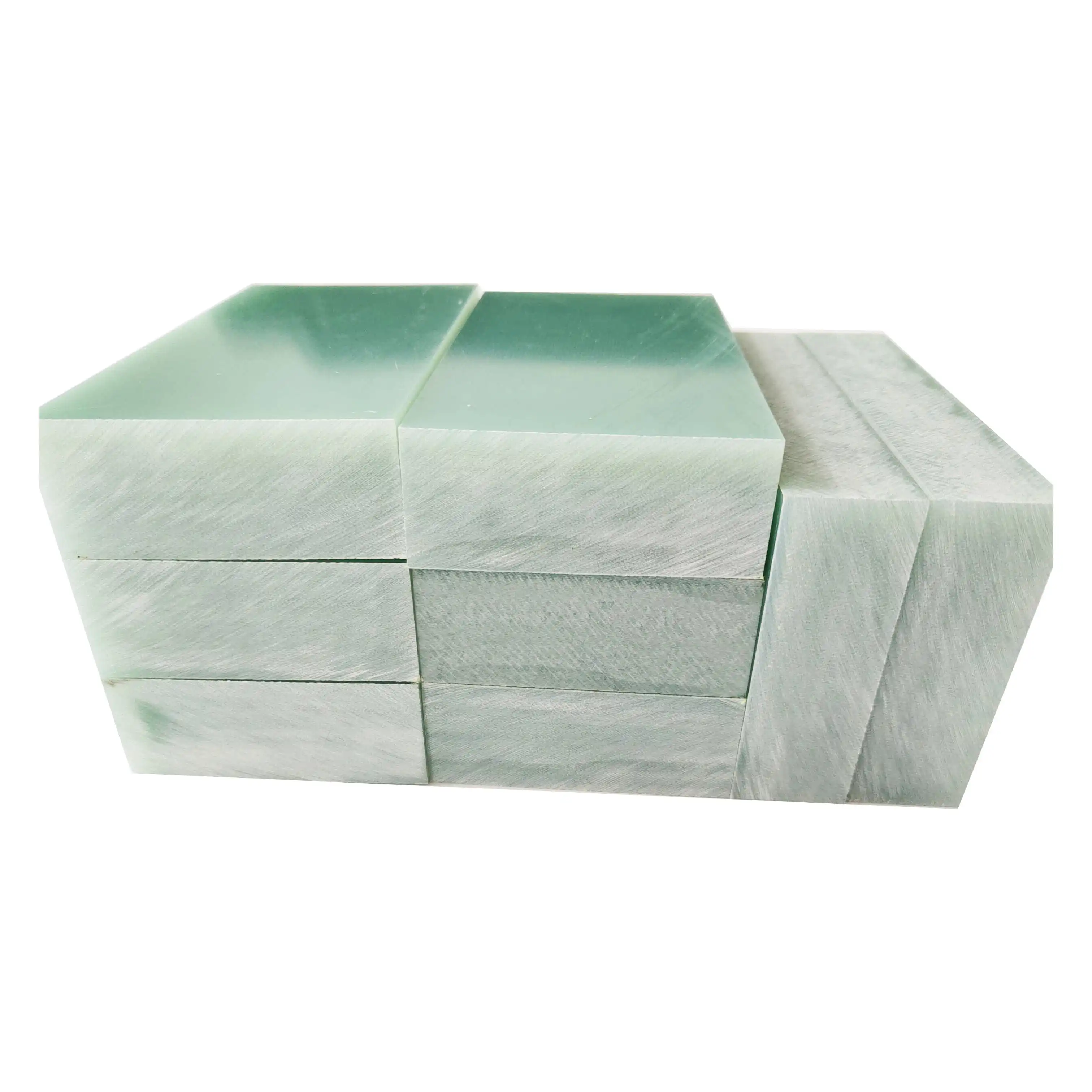

The journey of FR4 sheet processing begins with careful material selection. FR4, a glass-reinforced epoxy laminate, is renowned for its excellent electrical insulation properties and mechanical strength. Before cutting, a thorough inspection of the FR4 sheets is crucial. This involves checking for any visible defects, such as warping, delamination, or inconsistencies in thickness. Quality control at this stage is paramount to ensure the final product meets the required specifications.
Precision Measurement and Marking
Accurate measurement is the foundation of successful FR4 sheet processing. Using precision measuring tools such as digital calipers and micrometers, technicians meticulously mark the sheets according to the design specifications. This step is critical for achieving the exact dimensions required for the final product. Advanced facilities may employ computer-aided design (CAD) systems to generate cutting patterns, maximizing material utilization and reducing waste.
Cutting Methods and Equipment
The cutting phase involves selecting the appropriate method based on the project requirements. Common cutting techniques for FR4 sheets include:
- CNC Routing: Offers high precision and complex shape capabilities.
- Laser Cutting: Provides clean edges and is suitable for intricate designs.
- Water Jet Cutting: Ideal for thicker FR4 sheets and reduces heat-affected zones.
- Shearing: Efficient for straight cuts on thinner FR4 sheets.
Each method has its advantages, and the choice depends on factors such as sheet thickness, required accuracy, and production volume. Proper equipment maintenance and operator training are essential to ensure consistent cutting quality.Surface Treatment and Lamination Processes
Surface Cleaning and Preparation
After cutting, the FR4 sheets undergo thorough cleaning to remove any debris, dust, or oils that may have accumulated during the cutting process. This step is crucial for ensuring proper adhesion in subsequent processes. Advanced cleaning methods may include:
- Ultrasonic cleaning baths
- Plasma treatment for enhanced surface activation
- Chemical cleaning solutions specifically formulated for FR4 material
The goal is to create a pristine surface that will bond effectively with copper foils or other materials in the lamination process.Copper Foil Application
Many FR4 applications require the addition of copper layers for electrical conductivity. The process of applying copper foil to FR4 sheets demands precision and controlled environmental conditions. Key aspects include:
- Selection of appropriate copper foil thickness
- Uniform application to prevent air bubbles or wrinkles
- Use of specialized presses to ensure proper adhesion
The quality of this copper lamination significantly impacts the performance of the final PCB or electronic component.Multi-layer Lamination Techniques
For complex electronic applications, multi-layer FR4 structures are often required. This involves a sophisticated lamination process where multiple layers of FR4 and copper are bonded together. The process typically includes:
- Precise alignment of layers using registration pins
- Application of prepreg (pre-impregnated) layers between FR4 sheets
- Use of hydraulic presses with controlled temperature and pressure cycles
The result is a robust, multi-layer structure that forms the backbone of many advanced electronic devices.Drilling and Finishing Operations
Precision Drilling Techniques
Drilling is a critical operation in FR4 sheet processing, creating pathways for electrical connections and component mounting. The drilling process requires specialized equipment and expertise:
- CNC drilling machines for high-speed, high-precision hole creation
- Selection of appropriate drill bits based on hole size and FR4 thickness
- Implementation of entry and backup boards to prevent burring and ensure clean holes
Advanced facilities may employ laser drilling for ultra-fine holes or unique geometries that traditional mechanical drilling cannot achieve.Post-Drilling Treatments
After drilling, several post-processing steps are necessary to ensure the quality and functionality of the holes:
- Deburring to remove any rough edges or protrusions
- Desmear processes to clean the inner walls of the holes
- Electroless copper plating to create conductive pathways through the holes
These treatments are essential for creating reliable electrical connections and ensuring the longevity of the FR4 component.Final Inspection and Quality Assurance
The final stage of FR4 sheet processing involves rigorous quality control measures:
- Dimensional checks to verify compliance with design specifications
- Electrical testing to ensure proper conductivity and insulation
- Visual inspections for surface defects or anomalies
- Automated optical inspection (AOI) for high-volume production
Only FR4 components that pass these stringent quality checks are approved for use in electronic applications, ensuring the reliability and performance of the final products.Conclusion
FR4 sheet processing technology is a multifaceted discipline that requires precision, expertise, and advanced equipment at every stage. From the initial cutting to the final drilling and quality assurance, each step plays a crucial role in producing high-quality FR4 components for electronic applications. As technology advances, so too do the techniques and equipment used in FR4 processing, continually pushing the boundaries of what's possible in electronic design and manufacturing. By understanding and mastering these processes, manufacturers can ensure the production of reliable, high-performance FR4-based products that meet the ever-increasing demands of the electronics industry.
