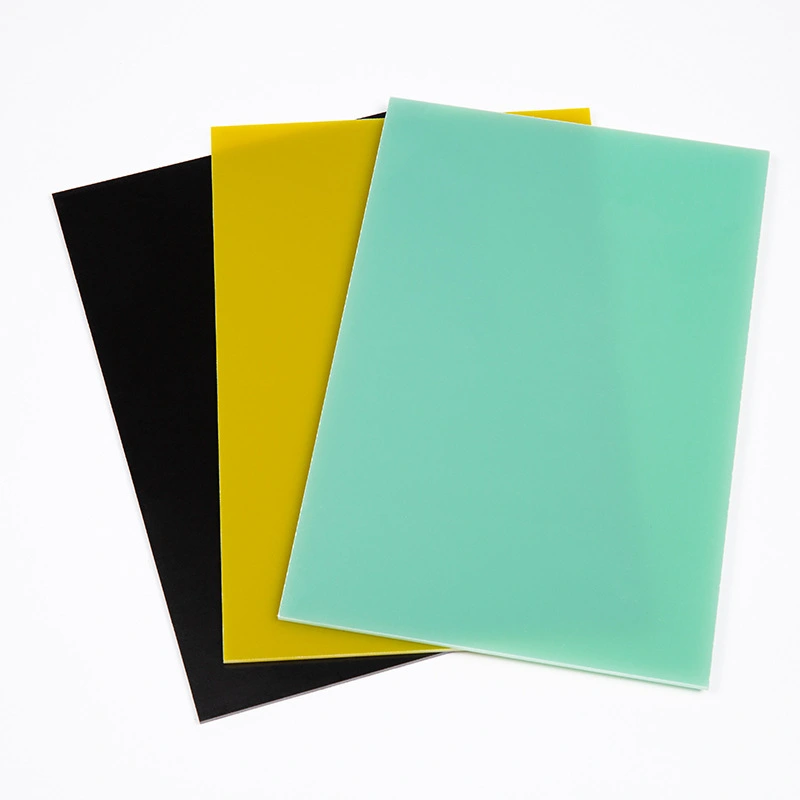

FR4 Epoxy Sheet Thermal Conductivity Data and Analysis

FR4 epoxy sheets are widely used in the electronics industry, particularly for printed circuit boards (PCBs). Understanding their thermal conductivity is crucial for optimal design and performance of electronic devices. This article delves into the thermal conductivity data of FR4 epoxy sheets, analyzing various factors that influence heat dissipation. We'll explore how FR4 compares to other PCB substrate materials and discuss its implications for thermal management in electronic applications. By examining these aspects, we aim to provide valuable insights for engineers and designers working with FR4 epoxy sheets in their projects.

What Is the Typical Thermal Conductivity of FR4?

FR4 epoxy sheets typically exhibit thermal conductivity values ranging from 0.29 to 0.81 W/(m·K). The through-plane thermal conductivity is generally lower, around 0.29 W/(m·K), while the in-plane thermal conductivity is higher, approximately 0.81 W/(m·K). This anisotropic behavior is due to the layered structure of FR4, with glass fibers providing better heat conduction along the plane of the sheet.

Variations in FR4 Thermal Conductivity

The thermal conductivity of FR4 can vary depending on factors such as the specific grade, manufacturer, and composition. Some enhanced FR4 formulations may offer slightly improved thermal properties, but generally, FR4 is considered a relatively poor thermal conductor compared to metals or ceramics used in electronics.

Temperature Dependence of FR4 Thermal Conductivity

FR4 epoxy sheet's thermal conductivity exhibits some temperature dependence, typically increasing slightly with temperature. However, this increase is relatively modest within the normal operating temperature range of most electronic devices.

Measuring FR4 Thermal Conductivity

Various methods are used to measure the thermal conductivity of FR4, including the guarded hot plate method, laser flash analysis, and transient plane source technique. Each method has its advantages and limitations, contributing to the range of reported values in literature.

Factors Affecting Heat Dissipation in FR4 Epoxy Sheet

Several factors influence the heat dissipation capabilities of FR4 epoxy sheets in PCB applications. Understanding these factors is essential for optimizing thermal management in electronic designs.

Material Composition and Fillers

The thermal conductivity of FR4 epoxy sheets is largely determined by the composition of the epoxy resin and the density of the glass fiber reinforcement. The inherent properties of the base resin generally provide low thermal conductivity, but the addition of thermally conductive fillers, such as ceramic particles or metal oxides, can significantly improve heat dissipation. However, these modifications increase both the cost and processing complexity, so they are typically reserved for applications requiring enhanced thermal performance and reliability.

PCB Layer Stack-up and Copper Content

The design of the PCB stack-up and the proportion of copper layers play a vital role in determining heat dissipation efficiency. Since copper possesses high thermal conductivity, thicker copper traces, larger ground planes, and well-distributed power layers can effectively conduct heat away from active components. Multilayer boards with optimized copper distribution therefore provide better thermal spreading compared to simple two-layer FR4 boards, ensuring that heat does not concentrate in localized areas and cause performance degradation.

Surface Finish and Thermal Interface Materials

The surface characteristics of FR4 epoxy sheets and the use of thermal interface materials (TIMs) strongly influence heat transfer between the PCB substrate and electronic components. A smooth and properly applied surface finish helps maintain good contact, while high-quality TIMs, such as thermal pads or pastes, minimize thermal resistance at critical junctions. Selecting and applying the right combination of finishes and TIMs enhances overall thermal management, allowing FR4-based PCBs to maintain stable performance under elevated temperature conditions.

How Does FR4 Compare to Other PCB Substrate Materials?

Comparing FR4 to other PCB substrate materials provides context for its thermal performance and helps in material selection for specific applications.

FR4 vs. Aluminum PCB Substrates

Aluminum PCB substrates demonstrate a much higher thermal conductivity, typically ranging from 1 to 3 W/(m·K), in comparison to standard FR4 epoxy sheet materials. This superior heat transfer capability makes aluminum substrates the preferred choice in power electronics, especially in high-power LED lighting systems and automotive applications where efficient heat dissipation is essential. While FR4 epoxy sheet offers good mechanical and electrical properties, aluminum substrates excel in thermal management, ensuring longer device life and improved performance in thermally demanding environments.

FR4 vs. Ceramic Substrates

Ceramic substrates, such as alumina and aluminum nitride, surpass FR4 by a large margin in terms of thermal conductivity, with values ranging between 20 and 180 W/(m·K). This exceptional thermal performance allows ceramics to be utilized in high-frequency, high-power, and microwave applications, where managing excess heat is critical. Compared to FR4, ceramics also provide excellent dimensional stability and dielectric properties under high temperatures. However, they are more expensive and brittle, making FR4 a more cost-effective choice for general-purpose electronic circuits.

FR4 vs. Flexible PCB Materials

Flexible PCB materials, such as polyimide films, usually present lower thermal conductivity values than FR4. Nevertheless, their inherent flexibility allows them to conform to three-dimensional shapes and dynamic installations, which opens new possibilities for design in compact and wearable electronics. While FR4 provides rigidity and mechanical strength, flexible materials enable innovative thermal management strategies through design adaptability. As a result, FR4 and flexible substrates serve complementary roles, with each being selected according to the balance between thermal performance and structural requirements.

Conclusion

FR4 epoxy sheets, despite their relatively low thermal conductivity, remain a popular choice for PCB substrates due to their balanced electrical, mechanical, and cost properties. Understanding the thermal characteristics of FR4 is crucial for effective thermal management in electronic designs. While FR4 may not be the best choice for high-power or thermally demanding applications, its versatility and cost-effectiveness make it suitable for a wide range of electronic products. As technology advances, ongoing research into enhancing the thermal properties of FR4 and developing novel PCB materials continues to expand the possibilities for thermal management in electronics.

FAQs

Can FR4 epoxy sheets be used in high-temperature applications?

FR4 can typically withstand temperatures up to 140°C, but prolonged exposure to high temperatures may affect its properties.

How does the thickness of FR4 affect its thermal performance?

Thicker FR4 sheets generally provide better thermal insulation, while thinner sheets may allow for faster heat dissipation.

Are there any environmentally friendly alternatives to FR4?

Yes, some manufacturers offer halogen-free and more environmentally friendly versions of FR4-like materials.

Choose J&Q for Your FR4 Epoxy Sheet Needs

J&Q, a leading FR4 epoxy sheet manufacturer, offers high-quality products with excellent thermal management properties. Our sheets feature a specific gravity of 1.850 g/cm³, water absorption less than 0.10%, and a temperature index of 140°C. With over 20 years of production experience and 10 years in foreign trade, we provide superior service and one-stop solutions. Contact us at info@jhd-material.com for more information on our FR4 epoxy sheets and other insulating materials.
