How Efficient Is FR4 in Conducting and Dissipating Heat?
Thermal Performance of FR4

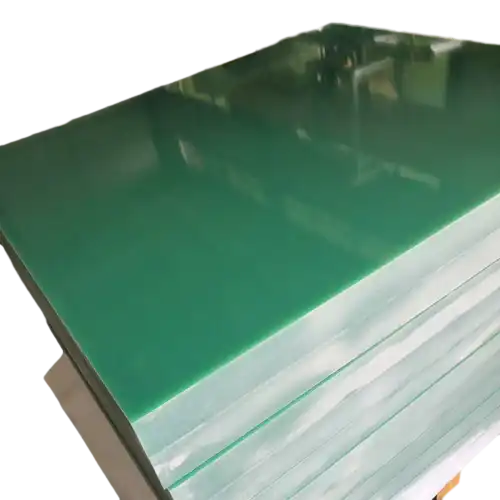

FR4 epoxy sheet demonstrates moderate efficiency in conducting and dissipating heat. Its thermal conductivity, while not as high as some metals, is sufficient for many electronic applications. The material's ability to withstand elevated temperatures without significant degradation contributes to its overall thermal performance.
Comparison with Other Materials
When compared to other materials used in electronics, FR4 falls in the middle range for thermal conductivity. Metals like copper and aluminum offer superior heat conduction, while some plastics have lower thermal conductivity. FR4's balance of thermal properties with other desirable characteristics makes it a versatile choice for many applications.
Factors Affecting Heat Dissipation
Several factors influence FR4's heat dissipation capabilities, including thickness, layer structure, and copper content in PCBs. The presence of thermal vias and proper board design can significantly enhance heat dissipation in FR4-based circuits. Environmental conditions and the specific application requirements also play crucial roles in determining the material's thermal performance.
Thermal Conductivity Ratings and Material Properties
Understanding Thermal Conductivity Measurements
Thermal conductivity in FR4 epoxy sheets is measured in watts per meter-kelvin (W/(m·K)). The through-plane and in-plane measurements provide a comprehensive understanding of the material's heat transfer capabilities. These ratings help engineers and designers predict the material's behavior in various thermal environments.
FR4 Composition and Its Impact on Thermal Properties
The composition of FR4, primarily fiberglass reinforced with epoxy resin, significantly influences its thermal properties. The fiberglass provides structural integrity, while the epoxy resin contributes to the material's thermal characteristics. The balance between these components affects the overall thermal conductivity and heat dissipation capabilities of FR4 sheets.
Thermal Expansion and Stability
FR4 epoxy sheets exhibit relatively low thermal expansion, which is crucial for maintaining dimensional stability in fluctuating temperature conditions. This property ensures that PCBs and other components made from FR4 remain reliable across a wide range of operating temperatures, contributing to the material's overall thermal management capabilities.
Applications Requiring Effective Heat Management
High-Power Electronics
In high-power electronics, efficient thermal control is essential to ensure both safety and performance. FR4 epoxy sheet, although not intended for extremely high-temperature environments, provides reliable heat management in applications such as power supply units, motor controllers, and industrial drives. When used with proper circuit design and heat dissipation methods, FR4 can maintain electrical insulation even under elevated operating temperatures. This balance of insulation and moderate thermal performance makes it a trusted material for high-current and power-intensive electronic systems.
Thermal Management in Multilayer PCBs
In multilayer PCB design, FR4 serves as both a structural base and an active participant in thermal management. By integrating FR4 cores and prepreg layers with copper planes, ground layers, and thermal vias, designers create efficient pathways to channel heat away from critical components. This is particularly important in high-density circuit assemblies where component spacing is limited. The material’s ability to retain electrical performance while supporting thermal dissipation helps extend the operational life of multilayer boards in demanding electronic applications.
Aerospace and Defense Electronics
The aerospace and defense sectors demand materials that can withstand rigorous operational environments without compromising reliability. FR4 meets these requirements by combining thermal stability with dependable electrical insulation and mechanical durability. Its performance under fluctuating temperatures, high vibration, and varying atmospheric conditions makes it suitable for avionics systems, radar modules, and communication devices. The ability of FR4 to support effective heat dissipation ensures system integrity and reduces the risk of thermal failure, contributing to mission-critical reliability in aerospace and defense electronics.
Conclusion
FR4 epoxy sheet stands as a versatile material in the realm of electronic applications, offering a balanced approach to thermal conductivity and heat dissipation. While not the most thermally conductive option available, its combination of properties makes it an indispensable choice for numerous applications. The material's ability to maintain stability and performance across a range of temperatures, coupled with its excellent electrical insulation properties, ensures its continued relevance in the ever-evolving landscape of electronic design and manufacturing.
FAQs
What is the thermal conductivity of FR4 epoxy sheet?
FR4 epoxy sheet has a through-plane thermal conductivity of 0.29 W/(m·K) and an in-plane thermal conductivity of 0.81 W/(m·K).
How does FR4 compare to other materials in terms of heat dissipation?
FR4 offers moderate heat dissipation capabilities, falling between highly conductive metals and less conductive plastics. Its balanced properties make it suitable for many electronic applications.
Can FR4 be used in high-temperature applications?
FR4 can withstand temperatures up to 140°C, making it suitable for many high-temperature applications. However, for extreme heat scenarios, other materials may be more appropriate.
Experience the Superior Thermal Performance of J&Q's FR4 Epoxy Sheets
At J&Q, we specialize in manufacturing high-quality FR4 epoxy sheets with exceptional thermal conductivity and heat dissipation properties. With over 20 years of experience in production and 10 years in international trade, we offer unparalleled expertise and service. Our FR4 sheets are rigorously tested to meet NEMA FR-4 and IECEPGC202 standards, ensuring optimal performance in high-temperature environments. For more information about our products, contact us at info@jhd-material.com.
