How Does FR4 Withstand High Temperatures?
Chemical Composition and Thermal Stability

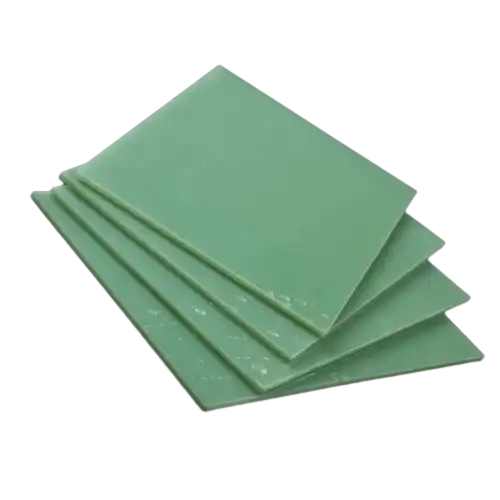

The remarkable temperature resistance of FR4 epoxy sheet is rooted in its chemical composition. The epoxy resin used in FR4 is a thermoset polymer, which means it forms a tightly cross-linked network when cured. This network structure provides excellent thermal stability, allowing the material to maintain its shape and properties even at elevated temperatures. The glass fibers reinforcing the epoxy matrix contribute to the overall thermal resistance by providing a high melting point and low coefficient of thermal expansion.
Glass Transition Temperature (Tg)
A key factor in FR4's temperature resistance is its glass transition temperature (Tg). The Tg is the temperature at which the epoxy resin transitions from a rigid, glassy state to a more flexible, rubbery state. For standard FR4, the Tg typically ranges from 130°C to 140°C. Above this temperature, the material begins to soften, potentially affecting its mechanical and electrical properties. However, it's important to note that FR4 can still function effectively at temperatures approaching its Tg, making it suitable for a wide range of high-temperature applications.
Thermal Decomposition Resistance
FR4 epoxy sheet exhibits impressive resistance to thermal decomposition. The material can withstand prolonged exposure to temperatures up to its maximum operating temperature without significant degradation. This resistance to thermal breakdown is attributed to the strong chemical bonds within the epoxy resin and between the resin and glass fibers. Even at temperatures above its Tg, FR4 maintains its structural integrity and continues to provide electrical insulation, albeit with some reduction in mechanical strength.
Heat Deflection and Thermal Stability Characteristics
Heat Deflection Temperature (HDT)
The heat deflection temperature is another crucial parameter when considering FR4's temperature resistance. HDT is the temperature at which a standardized test bar deflects by a specified amount under a defined load. For FR4, the HDT is typically around 150°C under a load of 1.8 MPa. This high HDT indicates that FR4 can maintain its dimensional stability and load-bearing capacity at elevated temperatures, making it suitable for applications where structural integrity under heat is critical.
Coefficient of Thermal Expansion (CTE)
FR4 epoxy sheet exhibits a relatively low coefficient of thermal expansion, particularly when compared to other polymers. The CTE of FR4 is typically around 14-17 ppm/°C in the x and y directions (in-plane) and 50-70 ppm/°C in the z direction (through-thickness). This low CTE contributes to the material's dimensional stability across a wide temperature range, minimizing warpage and stress on components in high-temperature environments.
Thermal Conductivity
While FR4 is primarily valued for its electrical insulation properties, its thermal conductivity also plays a role in its temperature resistance. FR4 has a relatively low thermal conductivity, typically around 0.3-0.5 W/mK. This property helps prevent rapid heat transfer through the material, which can be advantageous in certain applications. However, it also means that heat dissipation should be carefully considered in designs using FR4, especially in high-power electronics.
Industrial Applications Requiring Temperature-Resistant Materials
Aerospace and Aviation
The aerospace industry relies heavily on FR4 epoxy sheet for its temperature resistance and lightweight properties. In aircraft and spacecraft, FR4 is used in various components that must withstand extreme temperature fluctuations, from the frigid conditions at high altitudes to the heat generated by engines and electronic systems. FR4 is commonly found in avionics systems, circuit boards for flight control systems, and structural components in areas exposed to high temperatures.
Automotive Electronics
Modern vehicles are equipped with increasingly complex electronic systems, many of which operate in high-temperature environments. FR4 epoxy sheet is widely used in automotive electronics for its ability to withstand the heat generated by engine compartments and other hot zones within vehicles. Applications include engine control units, transmission control modules, and power distribution systems. The temperature resistance of FR4 ensures reliable operation of these critical components even under demanding conditions.
Industrial Control Systems
In industrial settings, control systems and machinery often operate in environments with elevated temperatures. FR4 epoxy sheet is a preferred material for circuit boards and insulating components in industrial control systems due to its temperature resistance and electrical properties. It's commonly used in motor controls, power distribution panels, and process control equipment where exposure to heat from machinery or industrial processes is a concern.
Conclusion
FR4 epoxy sheet's remarkable temperature resistance makes it an invaluable material across various industries. Its ability to maintain structural integrity and electrical properties at elevated temperatures stems from its unique composition and chemical structure. Understanding the thermal characteristics of FR4, including its glass transition temperature, heat deflection temperature, and thermal stability, is essential for engineers and designers working on high-temperature applications. As technology continues to advance, the demand for temperature-resistant materials like FR4 is likely to grow, driving further innovations in this versatile and reliable material.
