FR4 Epoxy Sheet Applications in PCB Manufacturing

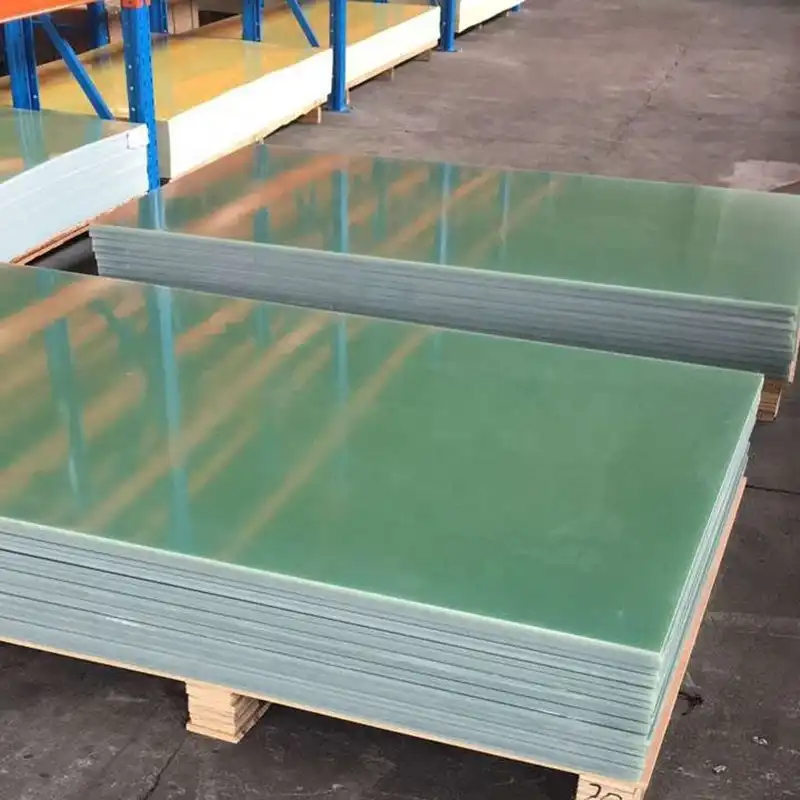

FR4 epoxy sheet is a cornerstone material in the realm of Printed Circuit Board (PCB) manufacturing, serving as the primary substrate for a wide array of electronic applications. This versatile material, composed of woven fiberglass cloth impregnated with epoxy resin, offers an optimal balance of electrical insulation, mechanical strength, and thermal stability. In PCB production, FR4 sheets form the foundation upon which conductive traces are etched, components are mounted, and complex electronic systems are built. From consumer electronics to aerospace technology, FR4's unique properties make it indispensable in crafting reliable, high-performance circuit boards that power our modern world. Its widespread use stems from its exceptional durability, flame-retardant characteristics, and cost-effectiveness, making it the go-to choice for manufacturers seeking to create robust and efficient PCBs.

Why FR4 Is Essential in PCB Production?

Unparalleled Electrical Properties

FR4 epoxy sheet boasts remarkable electrical insulation capabilities, crucial for preventing short circuits and maintaining signal integrity across PCB layers. Its stable dielectric constant ensures consistent electrical performance, vital for precise impedance control in high-frequency applications. The material's low dissipation factor minimizes signal loss, enhancing overall circuit efficiency and reliability.

Mechanical Robustness

The exceptional mechanical strength of FR4 sheets provides PCBs with the necessary rigidity to withstand various stresses during manufacturing, assembly, and operation. This durability safeguards against warping, cracking, and delamination, ensuring the longevity of the finished product. FR4's dimensional stability under thermal stress further contributes to its reliability in diverse operating environments.

Thermal Management Capabilities

FR4's thermal properties play a pivotal role in PCB performance. Its ability to withstand high temperatures without degradation ensures circuit integrity even under demanding conditions. The material's low thermal expansion coefficient minimizes stress on solder joints and components during temperature fluctuations, enhancing the overall reliability and lifespan of the PCB.

FR4 in Single-Layer, Multi-Layer, and Flexible PCBs

Single-Layer PCB Applications

In single-layer PCBs, FR4 epoxy sheet serves as the sole substrate, offering a cost-effective solution for simpler electronic designs. Its excellent insulation properties and ease of fabrication make it ideal for applications such as LED lighting circuits, power supplies, and basic control panels. The material's uniform thickness and flatness ensure consistent performance across the board's surface.

Multi-Layer PCB Construction

FR4's versatility shines in multi-layer PCB designs, where it acts as both the core material and the interlaminar dielectric. Its ability to bond securely with copper foils and prepregs enables the creation of complex, high-density interconnect structures. This characteristic is particularly valuable in advanced electronics, including smartphones, computers, and sophisticated medical devices, where space optimization and signal integrity are paramount.

Flexible PCB Integration

While traditionally associated with rigid boards, FR4 epoxy sheet also finds application in flexible and rigid-flex PCBs. When used in conjunction with flexible materials like polyimide, FR4 can provide rigid support sections within a flexible circuit. This hybrid approach combines the benefits of FR4's electrical and mechanical properties with the adaptability of flexible substrates, catering to designs that require both rigidity and flexibility.

Enhancing PCB Reliability with FR4 Materials

Moisture Resistance and Environmental Protection

FR4 epoxy sheet exhibits exceptional resistance to moisture absorption, a critical factor in maintaining PCB integrity over time. This property prevents delamination and reduces the risk of electrical shorts caused by moisture ingress. The material's inherent resistance to chemicals and solvents further protects the PCB from environmental contaminants, enhancing its longevity and reliability in diverse operating conditions.

Flame Retardancy and Safety Compliance

The flame-retardant nature of FR4 is a key attribute that significantly enhances PCB safety. This characteristic helps prevent the spread of fire in the event of an electrical fault, meeting stringent safety standards across various industries. The self-extinguishing properties of FR4 make it an essential choice for applications where fire safety is paramount, such as in aerospace, automotive, and consumer electronics.

Thermal Cycling and Stress Management

FR4's ability to withstand repeated thermal cycling without significant degradation is crucial for PCB reliability. This property ensures that the board maintains its structural and electrical integrity even when subjected to frequent temperature fluctuations. The material's consistent coefficient of thermal expansion across a wide temperature range minimizes stress on solder joints and component connections, reducing the risk of failure due to thermal fatigue.

Conclusion

FR4 epoxy sheet stands as a cornerstone in PCB manufacturing, offering a unique combination of electrical, mechanical, and thermal properties that make it indispensable across a wide spectrum of electronic applications. Its versatility in single-layer, multi-layer, and flexible PCB designs, coupled with its inherent reliability-enhancing characteristics, solidifies its position as the material of choice for PCB manufacturers worldwide. As electronic devices continue to evolve, demanding ever-higher performance and reliability, FR4 remains at the forefront, adapting to new challenges and enabling innovations in circuit design and functionality.

FAQs

What makes FR4 epoxy sheet ideal for PCB manufacturing?

FR4 epoxy sheet offers excellent electrical insulation, mechanical strength, and thermal stability, making it perfect for PCB production. Its versatility allows use in various PCB types, from single-layer to complex multi-layer designs.

Can FR4 be used in high-frequency applications?

While FR4 is suitable for many applications, it may not be ideal for very high-frequency circuits due to its dielectric properties. For such applications, specialized materials might be preferred.

How does FR4 contribute to PCB reliability?

FR4 enhances PCB reliability through its moisture resistance, flame retardancy, and ability to withstand thermal cycling. These properties protect against environmental factors and improve overall safety and longevity of the PCB.

Choose J&Q for Your FR4 Epoxy Sheet Needs in PCB Manufacturing

At J&Q, we leverage over 20 years of experience in producing and selling insulating sheets to deliver top-quality FR4 epoxy sheets for PCB manufacturing. Our global reach and dedicated logistics company ensure seamless supply chain management and superior customer service. For unparalleled expertise in FR4 materials and comprehensive support in your PCB projects, contact us at info@jhd-material.com.
