What Is 3240 Epoxy Board Made Of?
Raw Materials and Composition
3240 epoxy board is a composite material primarily consisting of two main components: fiberglass cloth and epoxy resin. The fiberglass cloth serves as the reinforcement, providing strength and dimensional stability to the laminate. Typically, an alkali-free E-glass cloth is used due to its excellent electrical properties and compatibility with epoxy resins.
The matrix of the composite is formed by epoxy resin, often combined with phenolic resin to enhance certain properties. Epoxy resins are known for their superior adhesion, chemical resistance, and electrical insulation characteristics. The addition of phenolic resin can improve heat resistance and mechanical properties.
Manufacturing Process
The production of 3240 epoxy board involves a meticulous process that ensures the final product meets stringent quality standards. Initially, the fiberglass cloth is carefully impregnated with the epoxy resin mixture. This step is crucial as it determines the uniform distribution of resin throughout the fabric.
Once impregnated, multiple layers of the resin-soaked cloth are stacked to achieve the desired thickness. The layered stack is then subjected to heat and pressure in a process known as hot pressing. This curing process allows the resin to polymerize and bond with the fiberglass reinforcement, creating a solid, homogeneous material.
Post-Processing and Quality Control
After the initial curing, the 3240 epoxy boards undergo additional post-processing steps. These may include trimming to standard sizes, surface finishing for improved smoothness, and rigorous quality control inspections. Manufacturers often conduct tests to verify the electrical, mechanical, and thermal properties of each batch, ensuring consistency and reliability in the final product.
Mechanical and Electrical Properties of 3240 Sheets
Mechanical Strength and Durability
3240 epoxy sheets boast impressive mechanical properties that make them suitable for a wide range of applications. They exhibit high tensile and flexural strength, allowing them to withstand significant loads without deformation. The material's excellent impact resistance contributes to its durability, making it ideal for use in environments subject to vibrations or potential impacts.
Moreover, 3240 epoxy boards maintain their mechanical integrity across a broad temperature range, a crucial factor in many industrial applications. Their low water absorption rate further enhances their stability in humid or wet environments, preventing swelling or degradation that could compromise structural integrity.
Electrical Insulation Characteristics
One of the primary reasons for the widespread use of 3240 epoxy boards is their superior electrical insulation properties. These laminates demonstrate high dielectric strength, effectively preventing current flow even under high voltage conditions. This makes them invaluable in the construction of electrical equipment where safety and reliability are paramount.
The material also exhibits low dielectric loss, minimizing energy dissipation in high-frequency applications. Its volume and surface resistivity remain stable across a wide range of environmental conditions, ensuring consistent performance in various operational scenarios. These properties make 3240 epoxy boards an excellent choice for applications ranging from power distribution equipment to sensitive electronic devices.
Thermal Performance and Flame Resistance
3240 epoxy sheets are engineered to perform well under elevated temperatures. They maintain their structural and electrical properties at continuous operating temperatures up to 130°C, with short-term exposure capabilities at even higher temperatures. This thermal stability is crucial in applications where heat generation is a concern, such as in motor windings or power electronics.
Additionally, these laminates often incorporate flame-retardant additives, enhancing their safety profile. Many 3240 epoxy board variants meet stringent flame resistance standards, such as UL94 V-0, making them suitable for use in environments where fire safety is a critical consideration. This combination of thermal endurance and flame resistance broadens the application spectrum of 3240 epoxy boards across various industries.
Common Industrial Applications of 3240 Epoxy Laminates
Electrical and Electronics Sector
In the electrical and electronics industry, 3240 epoxy boards find extensive use due to their exceptional insulating properties. They are commonly employed in the manufacture of switchgear components, transformer parts, and motor insulation. The material's ability to maintain its electrical characteristics under varying environmental conditions makes it ideal for outdoor electrical equipment and installations in humid climates.
Circuit board manufacturers also utilize 3240 epoxy laminates as substrates for specialized applications requiring high thermal resistance and mechanical strength. These boards serve as reliable foundations for mounting electronic components in high-performance devices and industrial control systems.
Automotive and Transportation
The automotive sector leverages the unique properties of 3240 epoxy boards in various applications. These laminates are used in the production of insulating components for electric and hybrid vehicles, where high voltage insulation and thermal management are critical. The material's resistance to oils and chemicals also makes it suitable for use in engine compartments and other harsh environments within vehicles.
In the broader transportation industry, 3240 epoxy laminates contribute to the construction of lightweight yet durable components in aircraft, trains, and marine vessels. Their high strength-to-weight ratio and excellent fatigue resistance make them valuable in applications where weight reduction and long-term reliability are essential.
Industrial Machinery and Equipment

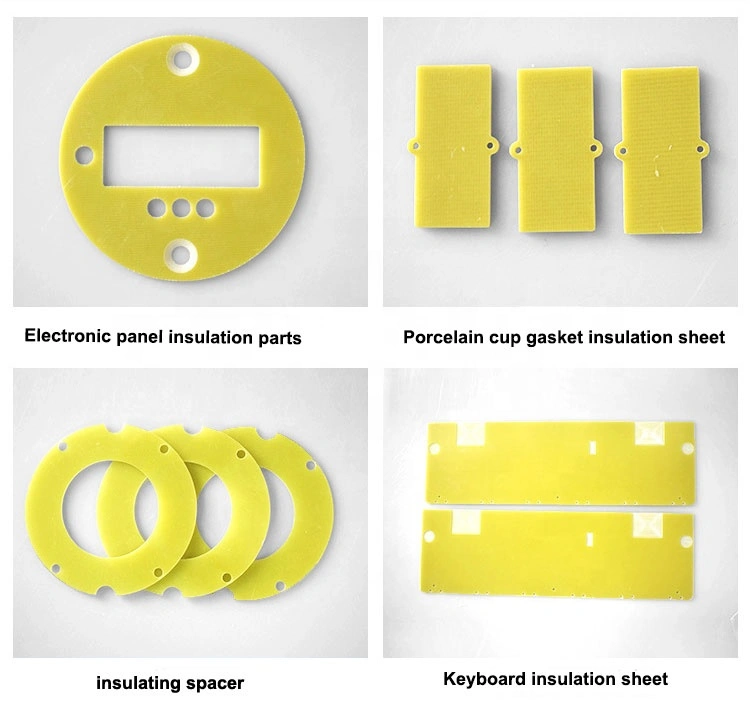

3240 epoxy boards play a crucial role in the manufacturing of industrial machinery and equipment. They are often used to create insulating barriers, structural components, and wear-resistant surfaces in various types of machinery. The material's machinability allows for the production of custom parts with precise tolerances, meeting the specific requirements of different industrial applications.
In the field of robotics and automation, 3240 epoxy laminates are utilized for creating durable and electrically insulating components. Their stability and resistance to environmental factors ensure consistent performance in automated systems operating under challenging conditions. From conveyor systems to CNC machines, these versatile laminates contribute to the efficiency and reliability of modern industrial equipment.
Conclusion
3240 epoxy board stands out as a versatile and high-performance material in the realm of industrial laminates. Its unique combination of mechanical strength, electrical insulation, and thermal resistance makes it an indispensable component in various sectors. From powering electrical systems to enabling advancements in automotive technology, 3240 epoxy boards continue to play a crucial role in shaping modern industry. As technological demands evolve, this material's adaptability and reliable performance ensure its continued relevance in future innovations across diverse industrial applications.
