Understanding the Composition and Properties of FR4 Epoxy Board
The Manufacturing Process of FR4 Epoxy Board

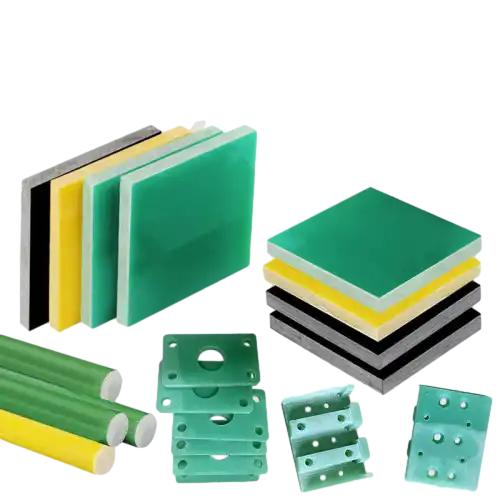

FR4 epoxy board, also known as FR4 sheet or FR4 epoxy sheet, is a high-performance composite material widely used in the electronics industry. The manufacturing process involves impregnating woven fiberglass cloth with epoxy resin under controlled temperature and pressure conditions. This process results in a laminate with exceptional electrical and mechanical properties.
The fiberglass cloth provides strength and dimensional stability, while the epoxy resin contributes to the material's excellent electrical insulation and flame-retardant properties. The "FR" in FR4 stands for "Flame Retardant," indicating its ability to self-extinguish when exposed to fire.
Key Properties of FR4 Epoxy Board
FR4 epoxy board boasts a unique combination of properties that make it indispensable in various applications:
- Excellent electrical insulation
- High mechanical strength
- Low moisture absorption
- Good dimensional stability
- Flame retardancy
- Resistance to chemicals and solvents
These properties make FR4 epoxy sheet an ideal choice for printed circuit boards (PCBs), electrical insulation, and other applications requiring high performance and reliability.
Applications of FR4 Epoxy Board
The versatility of FR4 epoxy board extends its use across various industries:
- Electronics: PCBs, circuit breakers, and switchgear
- Aerospace: Insulation in aircraft components
- Automotive: Electrical systems and control panels
- Industrial machinery: Insulation and structural components
- Telecommunications: Base stations and communication equipment
The widespread adoption of FR4 epoxy board in these industries underscores its reliability and performance in demanding environments.
Comparing Fiberglass Board and FR4 Epoxy Board
Similarities Between Fiberglass Board and FR4 Epoxy Board
Fiberglass board and FR4 epoxy board share some common characteristics, as both are composite materials reinforced with glass fibers. Both materials offer excellent electrical insulation properties and are known for their durability and resistance to environmental factors.
Additionally, both fiberglass board and FR4 epoxy board exhibit good dimensional stability and can be machined or fabricated into various shapes and sizes. Their ability to withstand high temperatures also makes them suitable for applications in challenging environments.
Key Differences in Composition and Performance
Despite their similarities, fiberglass board and FR4 epoxy board have distinct differences:
- Resin System: FR4 epoxy board uses a specific epoxy resin formulation, while fiberglass board may use various resin systems, including polyester or vinylester.
- Flame Retardancy: FR4 epoxy board is inherently flame retardant, whereas fiberglass board may require additional treatments for flame resistance.
- Electrical Properties: FR4 epoxy board typically offers superior electrical insulation and consistent dielectric properties compared to standard fiberglass board.
- Moisture Absorption: FR4 epoxy sheet generally has lower moisture absorption rates than regular fiberglass board.
- Cost: FR4 epoxy board is often more expensive due to its specialized formulation and manufacturing process.
Choosing Between Fiberglass Board and FR4 Epoxy Board
The choice between fiberglass board and FR4 epoxy board depends on the specific requirements of the application:
- For general-purpose electrical insulation, fiberglass board may be sufficient and more cost-effective.
- When precise electrical properties, flame retardancy, and reliability are crucial, such as in PCB manufacturing, FR4 epoxy board is the preferred choice.
- Applications requiring high mechanical strength and chemical resistance may benefit from FR4 epoxy sheet.
- For outdoor or marine applications, fiberglass board with appropriate resin systems may be more suitable.
Understanding these differences allows engineers and designers to select the most appropriate material for their specific needs, ensuring optimal performance and cost-effectiveness.
Fiberboard: A Distinct Material in the Insulation Landscape
Composition and Manufacturing of Fiberboard
Fiberboard is a engineered wood product made from wood fibers or other plant-based fibers. The manufacturing process involves breaking down wood or plant material into fibers, which are then combined with adhesives and pressed into boards under high temperature and pressure.
Unlike FR4 epoxy board or fiberglass board, fiberboard does not contain glass fibers or epoxy resins. The type of fibers used and the density of the board can vary, resulting in different grades of fiberboard, such as low-density fiberboard (LDF), medium-density fiberboard (MDF), and high-density fiberboard (HDF).
Properties and Applications of Fiberboard
Fiberboard offers a unique set of properties that distinguish it from FR4 epoxy board and fiberglass board:
- Thermal Insulation: Fiberboard provides good thermal insulation, making it suitable for construction applications.
- Sound Absorption: Its porous structure makes fiberboard an excellent sound-absorbing material.
- Workability: Fiberboard is easy to cut, shape, and finish, making it popular in furniture manufacturing.
- Sustainability: Many fiberboards are made from recycled wood or agricultural byproducts, offering an eco-friendly option.
- Cost-Effectiveness: Generally, fiberboard is more affordable than FR4 epoxy sheet or specialized fiberglass boards.
The applications of fiberboard are primarily in construction and furniture industries:
- Wall and ceiling panels
- Subflooring and underlayment
- Furniture and cabinetry
- Door cores
- Packaging materials
Comparing Fiberboard with FR4 Epoxy Board and Fiberglass Board
When comparing fiberboard to FR4 epoxy board and fiberglass board, several key differences emerge:
- Electrical Properties: Fiberboard is not typically used for electrical insulation, unlike FR4 epoxy sheet and fiberglass board.
- Moisture Resistance: Fiberboard is more susceptible to moisture damage compared to FR4 epoxy board or treated fiberglass board.
- Fire Resistance: While some fiberboards are treated for fire resistance, they generally do not match the flame-retardant properties of FR4 epoxy board.
- Strength-to-Weight Ratio: FR4 epoxy board and fiberglass board often offer superior strength-to-weight ratios compared to fiberboard.
- Environmental Impact: Fiberboard can be more environmentally friendly, especially when made from recycled materials.
Understanding these distinctions is crucial for selecting the appropriate material for specific applications, ensuring optimal performance, cost-effectiveness, and sustainability in various industries.
Conclusion
In conclusion, fiberglass board, FR4 epoxy board, and FR4 sheet each possess unique characteristics that make them suitable for different applications. FR4 sheet stands out for its exceptional electrical properties and flame resistance, making it indispensable in the electronics industry. FR4 epoxy board offers similar advantages and is widely used in printed circuit boards. Fiberglass board offers versatility and can be tailored for various insulation needs. Fiberboard, while distinct in its composition, excels in thermal insulation and acoustics. By understanding the nuances of these materials, professionals can make informed decisions, selecting the most appropriate option for their specific requirements, ultimately enhancing product performance and efficiency across diverse industries.
