What Are the Main Categories of FR4 Epoxy Sheet?
Standard FR4 Epoxy Sheets

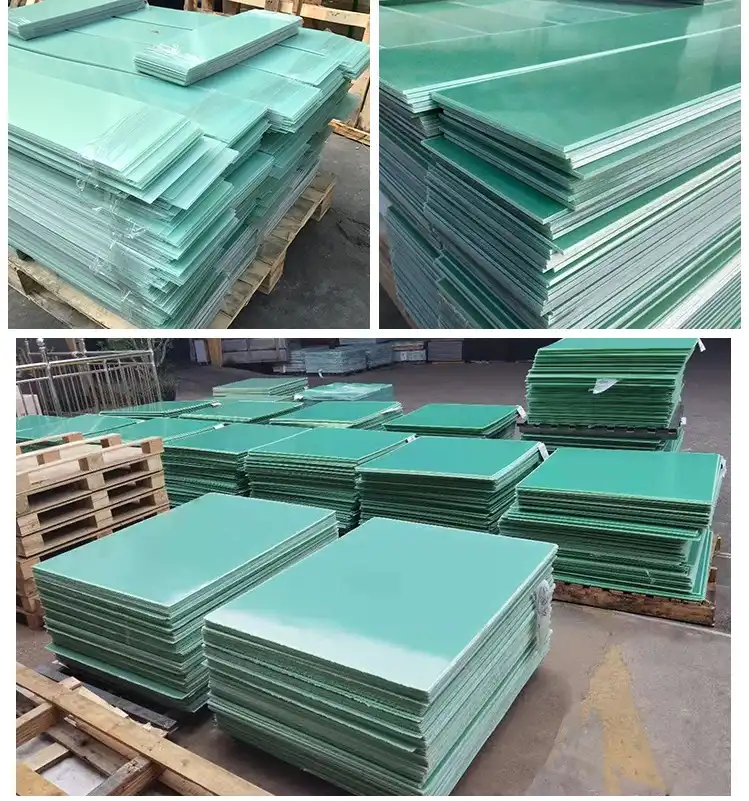

Standard FR4 epoxy sheets are the most common and widely used variant in the electronics industry. These sheets are composed of woven fiberglass cloth impregnated with epoxy resin, creating a robust and flame-retardant material. The standard grade offers excellent electrical insulation properties, mechanical strength, and moisture resistance, making it suitable for a wide range of PCB applications. Typically, standard FR4 sheets have a glass transition temperature (Tg) of around 130-140°C, which is adequate for many consumer electronics and industrial applications.
High-Tg FR4 Epoxy Sheets
High-Tg FR4 epoxy sheets are engineered to withstand higher temperatures and offer improved thermal stability. These sheets typically have a glass transition temperature ranging from 170°C to 180°C or even higher. The increased Tg makes these sheets ideal for applications that involve high-temperature soldering processes or operate in environments with elevated temperatures. High-Tg FR4 sheets maintain their electrical and mechanical properties at higher temperatures, ensuring the reliability of the PCB in demanding conditions.
Halogen-Free FR4 Epoxy Sheets
Halogen-free FR4 epoxy sheets are designed to meet environmental regulations and reduce the environmental impact of electronic products. These sheets use alternative flame retardants that do not contain halogenated compounds, such as bromine or chlorine. Halogen-free FR4 sheets offer similar electrical and mechanical properties to standard FR4 but with the added benefit of reduced toxicity and improved recyclability. They are increasingly preferred in industries where environmental considerations are paramount, such as automotive and aerospace.
Standard FR4 vs High-TG and Halogen-Free Variants
Thermal Performance Comparison
When comparing standard FR4 to high-Tg variants, the most significant difference lies in their thermal performance. Standard FR4 sheets typically have a Tg of 130-140°C, which is sufficient for many applications. However, high-Tg FR4 sheets, with their elevated glass transition temperatures of 170°C or higher, offer superior thermal stability. This enhanced thermal resistance makes high-Tg variants more suitable for applications involving lead-free soldering processes, which require higher temperatures. Additionally, high-Tg FR4 sheets maintain their mechanical and electrical properties at elevated temperatures, ensuring better reliability in high-heat environments.
Environmental and Regulatory Considerations
Halogen-free FR4 variants address growing environmental concerns and regulatory requirements. Unlike standard FR4 sheets, which often contain brominated flame retardants, halogen-free options use alternative compounds to achieve flame retardancy. This shift reduces the potential for harmful emissions during the product's lifecycle and improves recyclability. Many industries, particularly in Europe and Asia, are moving towards halogen-free materials to comply with regulations such as RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals).
Cost and Availability Factors
Standard FR4 epoxy sheets remain the most cost-effective and readily available option in the market. Their widespread use and established manufacturing processes contribute to their lower cost. High-Tg and halogen-free variants, while offering enhanced performance and environmental benefits, typically come at a premium. The higher cost is attributed to specialized formulations and manufacturing processes. However, as demand for these advanced materials grows, their availability is increasing, and costs are gradually becoming more competitive. When selecting between these variants, it's essential to balance performance requirements with budget constraints and consider the long-term value proposition of each option.
How to Select the Right FR4 Epoxy Sheet Type for Your Project?
Assessing Application Requirements
Selecting the appropriate FR4 epoxy sheet begins with a thorough assessment of your project's specific requirements. Consider factors such as the operating temperature range, exposure to environmental stressors, and the complexity of the circuit design. For applications involving high-frequency signals or demanding thermal conditions, high-Tg FR4 sheets may be necessary to ensure reliability and performance. Conversely, for standard consumer electronics or less demanding industrial applications, standard FR4 sheets might suffice. Evaluate the potential for thermal cycling, mechanical stress, and exposure to moisture or chemicals to determine the level of performance required from the FR4 material.
Regulatory Compliance and Industry Standards
Understanding and adhering to relevant regulatory requirements and industry standards is crucial when selecting FR4 epoxy sheets. Different sectors, such as aerospace, automotive, and medical devices, have specific regulations governing material selection. For instance, if your project needs to comply with stringent environmental standards or RoHS directives, opting for halogen-free FR4 variants might be necessary. Familiarize yourself with standards like UL 94 for flammability ratings and IPC-4101 for PCB material specifications to ensure your chosen FR4 sheet meets all applicable requirements.
Balancing Performance and Cost-Effectiveness
Finding the right balance between performance and cost-effectiveness is key to optimal FR4 epoxy sheet selection. While high-performance variants like high-Tg or halogen-free options offer superior characteristics, they come at a higher price point. Evaluate whether the enhanced properties justify the additional cost for your specific application. Consider factors such as production volume, expected product lifespan, and the potential consequences of material failure. In some cases, investing in premium FR4 sheets can lead to long-term cost savings by improving reliability and reducing the risk of field failures. Conduct a comprehensive cost-benefit analysis, taking into account not just material costs but also potential impacts on manufacturing processes and overall product performance.
Conclusion
Understanding the different types of FR4 epoxy sheets is crucial for making informed decisions in electronic design and manufacturing. From standard FR4 to high-Tg and halogen-free variants, each type offers unique properties suited to specific applications. By carefully considering factors such as thermal performance, environmental impact, and regulatory compliance, engineers and designers can select the optimal FR4 sheet for their projects. As technology advances and environmental concerns grow, the landscape of FR4 materials continues to evolve, offering new possibilities for innovation in the electronics industry.
FAQs
What is the main difference between standard FR4 and high-Tg FR4?
The main difference lies in their glass transition temperature (Tg). High-Tg FR4 has a higher Tg, typically above 170°C, offering better thermal stability and performance at elevated temperatures compared to standard FR4.
Are halogen-free FR4 sheets less flame-retardant than standard FR4?
No, halogen-free FR4 sheets are designed to provide equivalent flame retardancy using alternative compounds that do not contain halogens, maintaining safety standards while being more environmentally friendly.
How do I determine if I need high-Tg FR4 for my project?
Consider factors such as operating temperature, soldering processes, and thermal cycling requirements. If your application involves high temperatures or lead-free soldering, high-Tg FR4 might be necessary.
