Composition and Manufacturing Process
Raw Materials and Their Impact on Properties
The composition of Garolite and G10 sheets plays a crucial role in determining their unique properties. Garolite utilizes phenolic resin, which is derived from phenol and formaldehyde. This resin is combined with layers of paper or fabric, typically cotton, to create the final product. The phenolic resin imparts excellent heat resistance and low moisture absorption to Garolite sheets.

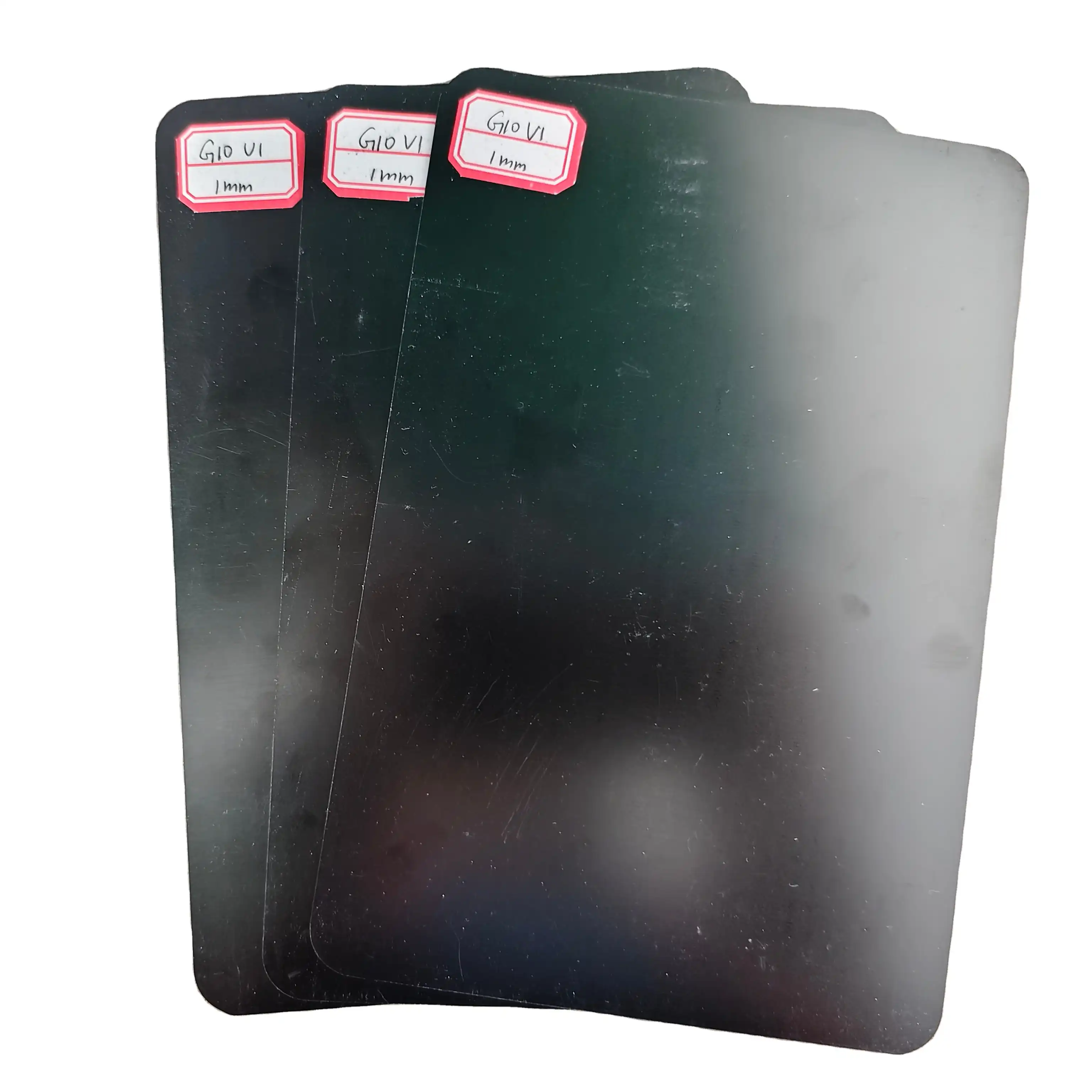

G10 epoxy sheet, conversely, employs epoxy resin as its binding agent. Epoxy resin is known for its exceptional adhesive properties and chemical resistance. The reinforcement in G10 sheets comes from woven glass fabric, which contributes to its superior strength and electrical insulation capabilities. The glass fibers provide a high strength-to-weight ratio, making G10 sheets ideal for applications requiring both lightweight and robust materials.
Manufacturing Techniques
The manufacturing processes for Garolite and G10 sheets differ significantly, influencing their final properties. Garolite sheets are typically produced through a compression molding process. Layers of resin-impregnated paper or fabric are stacked and then subjected to high pressure and heat. This process allows the resin to cure and bond the layers together, resulting in a dense, uniform material.
G10 sheets undergo a more complex manufacturing process. The woven glass fabric is first impregnated with epoxy resin. Multiple layers of this pre-impregnated (prepreg) material are then stacked and subjected to heat and pressure in an autoclave. This process, known as vacuum bagging, ensures thorough resin penetration and removes any trapped air, resulting in a void-free, high-quality laminate.
Impact on Final Product Characteristics
The disparate manufacturing processes and raw materials lead to distinct characteristics in the final products. Garolite sheets tend to have a more uniform appearance and are easier to machine due to their paper or fabric reinforcement. They exhibit good dimensional stability and low water absorption, making them suitable for applications in humid environments.
G10 epoxy sheets, thanks to their glass fiber reinforcement and epoxy resin matrix, boast superior mechanical properties. They demonstrate excellent tensile and flexural strength, high impact resistance, and remarkable dimensional stability across a wide temperature range. The glass fibers also contribute to the material's outstanding electrical insulation properties, crucial for applications in the electronics industry.
Physical and Mechanical Properties
Strength and Durability Comparison
When comparing the strength and durability of Garolite and G10 sheets, G10 emerges as the more robust option. G10 epoxy sheets exhibit superior tensile strength, typically ranging from 275 to 415 MPa, compared to Garolite's 60 to 100 MPa. This substantial difference in tensile strength makes G10 sheets more suitable for applications involving high mechanical stress.
G10 sheets also outperform Garolite in terms of flexural strength and impact resistance. The glass fiber reinforcement in G10 provides excellent resistance to bending and impact forces, making it ideal for structural components in aerospace and automotive industries. Garolite, while less strong, offers adequate strength for many applications and is often chosen for its ease of machining and cost-effectiveness.
Temperature Resistance and Thermal Properties
Both Garolite and G10 sheets demonstrate good temperature resistance, but their performance differs at extreme temperatures. Garolite sheets can typically withstand continuous temperatures up to 125°C, with short-term exposure possible up to 180°C. The phenolic resin in Garolite provides excellent heat resistance and low thermal conductivity.
G10 epoxy sheets, however, exhibit superior temperature resistance. They can maintain their properties at continuous temperatures up to 155°C, with short-term exposure possible up to 180°C. The epoxy resin used in G10 sheets contributes to their excellent dimensional stability across a wide temperature range, making them suitable for applications involving thermal cycling.
Dimensional Stability and Moisture Absorption
Dimensional stability is a critical factor in many industrial applications, and both materials perform well in this aspect. Garolite sheets offer good dimensional stability and low moisture absorption, typically less than 2% by weight. This property makes them suitable for use in humid environments where maintaining dimensional accuracy is crucial.
G10 epoxy sheets, however, demonstrate exceptional dimensional stability, with moisture absorption typically less than 0.1% by weight. This extremely low moisture absorption, combined with the glass fiber reinforcement, ensures that G10 sheets maintain their dimensions and properties even in challenging environmental conditions. This characteristic makes G10 sheets particularly valuable in precision engineering applications and electrical insulation where dimensional consistency is paramount.
Electrical and Thermal Insulation Properties
Dielectric Strength and Breakdown Voltage
The electrical insulation properties of Garolite and G10 sheets are crucial for many applications, particularly in the electronics and electrical industries. Garolite sheets exhibit good dielectric strength, typically ranging from 15 to 20 kV/mm. This makes them suitable for various low to medium voltage insulation applications.
G10 epoxy sheets, however, demonstrate superior dielectric strength, often exceeding 20 kV/mm. This high dielectric strength makes G10 sheets ideal for high-voltage applications and critical electrical insulation components. The combination of epoxy resin and glass fiber reinforcement in G10 sheets contributes to their excellent electrical insulation properties, ensuring reliable performance in demanding electrical environments.
Thermal Conductivity and Heat Dissipation
Both Garolite and G10 sheets are known for their low thermal conductivity, making them effective thermal insulators. Garolite sheets typically have a thermal conductivity ranging from 0.2 to 0.4 W/m·K, depending on the specific grade and reinforcement material used. This low thermal conductivity makes Garolite sheets suitable for applications requiring thermal insulation in moderate temperature environments.
G10 epoxy sheets exhibit slightly higher thermal conductivity, usually between 0.3 to 0.5 W/m·K. While this is still considered low, it allows for slightly better heat dissipation compared to Garolite. In applications where heat management is crucial, such as in printed circuit boards or electrical enclosures, the marginally higher thermal conductivity of G10 sheets can be advantageous, allowing for more efficient heat distribution and dissipation.
Frequency Dependence of Electrical Properties
The electrical properties of both Garolite and G10 sheets can vary with frequency, an important consideration for high-frequency applications. Garolite sheets generally maintain stable electrical properties up to moderate frequencies, typically in the MHz range. However, at higher frequencies, they may experience increased dielectric losses.
G10 epoxy sheets, particularly those designed for high-frequency applications, demonstrate superior performance across a wider frequency range. They maintain their excellent dielectric properties well into the GHz range, making them suitable for use in high-frequency circuit boards and antenna substrates. The low dielectric constant and low dissipation factor of G10 sheets at high frequencies contribute to their widespread use in the telecommunications and aerospace industries.
Conclusion
In conclusion, while both Garolite and G10 sheets are valuable materials in industrial applications, they possess distinct characteristics that make them suitable for different scenarios. Garolite sheets offer good electrical and thermal insulation properties, ease of machining, and cost-effectiveness, making them ideal for less demanding applications. G10 epoxy sheets, with their superior strength, excellent electrical properties, and exceptional dimensional stability, are the preferred choice for high-performance applications in aerospace, electronics, and high-voltage systems. Understanding these differences is crucial for engineers and designers to select the most appropriate material for their specific requirements.
