What Are the Material Differences Between G10 and FR4?
Composition and Manufacturing Process

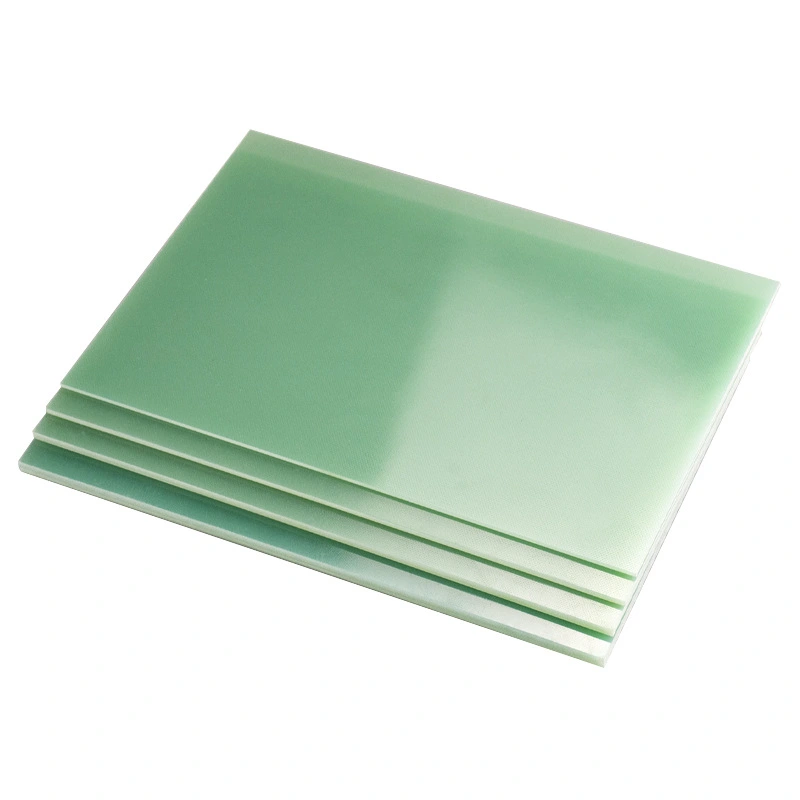

G10 and FR4 are both composite laminates made from layers of glass fiber fabric impregnated with epoxy resin, but their compositions and production methods introduce important differences. G10 is manufactured through a high-pressure lamination process, producing a dense and mechanically strong material with excellent rigidity. FR4 follows a similar process but incorporates flame-retardant additives into the resin system. These additives enhance its fire safety characteristics, making FR4 more suitable for electronic applications where flame resistance is a key requirement.
Chemical Properties
The chemical performance of G10 and FR4 differs slightly due to their distinct formulations. G10 sheet is known for its superior resistance to a wide range of corrosive agents, including solvents, fuels, and mild acids, which makes it highly reliable in industrial and chemical processing environments. FR4, while still offering good chemical resistance, may be more vulnerable to gradual degradation when continuously exposed to aggressive chemicals. This difference makes G10 a preferred choice in environments where chemical durability is critical.
Flame Retardancy
The most notable distinction between G10 and FR4 lies in flame resistance. FR4, as its name implies (Flame Retardant), is specifically engineered with additives that slow combustion and reduce flame propagation, earning it compliance with safety standards like UL94 V-0. G10, by contrast, does not naturally contain flame-retardant chemicals. While it can be modified with additives to improve fire resistance, it generally cannot achieve the same level of protection as FR4, making FR4 more suitable for fire-sensitive electronic and electrical applications.
Mechanical and Thermal Performance in Transformer Applications
Mechanical Strength and Durability
Both G10 and FR4 exhibit excellent mechanical properties, crucial for transformer insulation. G10 typically offers slightly higher tensile and flexural strength, making it particularly suitable for applications where mechanical stress is a significant factor. FR4, while still robust, may have a slight edge in terms of machinability, allowing for easier fabrication of complex shapes.
Thermal Stability and Heat Resistance
In high-voltage transformer applications, thermal stability is paramount. G10 sheet generally demonstrates superior thermal performance, maintaining its mechanical and electrical properties at higher temperatures. FR4, while still suitable for many high-temperature applications, may experience slight degradation in its properties at extremely high temperatures compared to G10.
Dimensional Stability
Both materials exhibit good dimensional stability, crucial for maintaining precise tolerances in transformer components. However, G10 often edges out FR4 in this aspect, showing less propensity for warping or dimensional changes under thermal stress or prolonged exposure to high temperatures.
Which Material Provides Superior Reliability Under High Voltage Stress?
Dielectric Strength and Breakdown Voltage
For high-voltage applications, the dielectric strength of insulation material is one of the most important performance metrics. Both G10 and FR4 are known for their strong dielectric properties, ensuring they can effectively isolate electrical currents and prevent failure. However, G10 often demonstrates slightly higher dielectric strength and breakdown voltage values. This allows it to tolerate more extreme voltage gradients before failure occurs, making it the more reliable option in equipment where electrical insulation must withstand exceptionally high stresses.
Long-term Electrical Performance
Reliability under sustained electrical stress is critical when selecting insulation for transformers and other high-voltage devices. G10 has been shown to deliver excellent long-term stability, maintaining its dielectric properties even after prolonged exposure to high electric fields. This stability helps reduce maintenance frequency and supports safe operation in demanding environments. FR4 sheet also provides consistent performance, but under extreme conditions it may exhibit slightly faster degradation, which could limit its long-term effectiveness in highly specialized high-voltage applications.
Partial Discharge Resistance
Partial discharges, small localized dielectric breakdowns, can gradually erode insulation and compromise system reliability. Both G10 and FR4 offer good resistance to partial discharge, providing protection against premature material failure. Yet G10’s denser microstructure and naturally higher dielectric strength often give it an advantage in mitigating these effects. This makes it particularly valuable in equipment where continuous exposure to high electric fields is expected, as it helps extend insulation life and improve the reliability of electrical systems in critical applications.
Conclusion
In the realm of high-voltage transformer insulation, both G10 and FR4 sheets offer compelling advantages. G10 excels in mechanical strength, thermal stability, and overall electrical performance, making it ideal for applications involving extreme temperatures or high mechanical stress. FR4, with its superior flame-retardant properties, is the go-to choice when fire safety is a primary concern. The selection between G10 and FR4 ultimately depends on the specific requirements of the transformer application, balancing factors such as operating conditions, safety standards, and long-term reliability needs.
FAQs
Can G10 and FR4 be used interchangeably in transformer applications?
While G10 and FR4 share many similar properties, they are not always interchangeable. The choice depends on specific application requirements such as temperature resistance, mechanical strength, and flame retardancy needs.
How does the cost of G10 compare to FR4?
Generally, G10 tends to be slightly more expensive than FR4 due to its superior mechanical and thermal properties. However, the cost difference can vary based on specific grades and manufacturers.
Are there any environmental considerations when choosing between G10 and FR4?
Both materials are composite materials and can be challenging to recycle. However, FR4's flame-retardant additives may pose slightly more environmental concerns in some regions due to specific regulations on flame-retardant chemicals.
Choose J&Q for Your High-Voltage Transformer Insulation Needs
At J&Q, we specialize in providing top-quality G10 and FR4 sheets for high-voltage transformer insulation. With over 20 years of experience as a leading manufacturer and supplier of insulating sheets, we offer expert guidance to help you choose the right material for your specific application. Our comprehensive services, including our own logistics company, ensure a seamless experience from order to delivery. For more information about our G10 and FR4 sheets, contact us at info@jhd-material.com.
