What Are the Most Widely Used Electrical Insulation Sheets?
Polyimide Films: High-Performance Insulation
Polyimide films are renowned for their exceptional thermal stability and electrical insulation properties. These sheets exhibit remarkable resistance to high temperatures, making them ideal for use in extreme environments. Their low thermal expansion coefficient ensures dimensional stability, crucial for applications in flexible printed circuits and aerospace components. Polyimide films also boast excellent chemical resistance, maintaining their integrity when exposed to various solvents and oils.

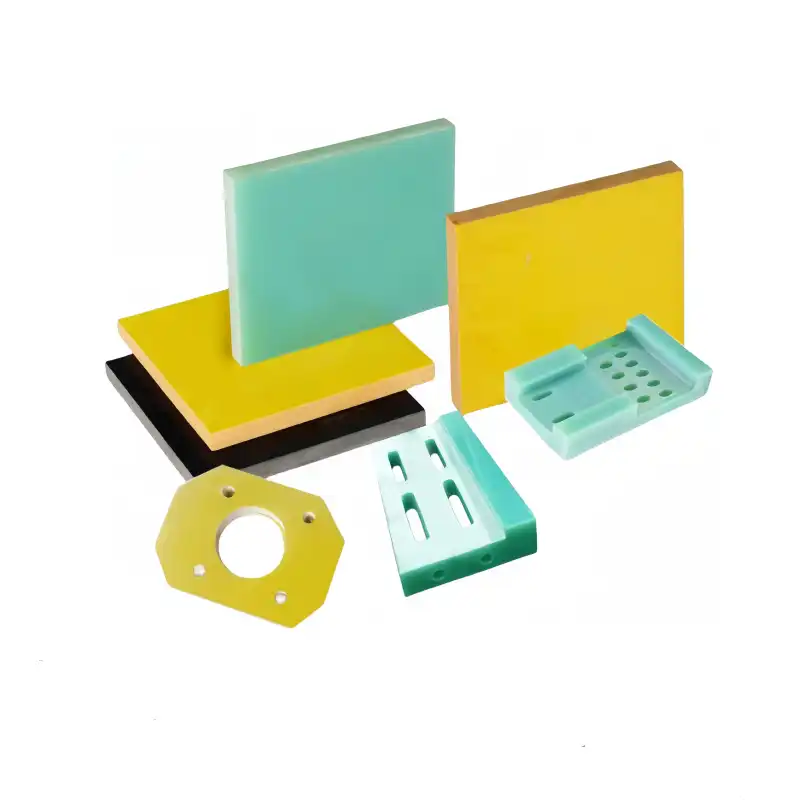

Epoxy Glass Laminates: Versatile and Robust
Epoxy glass laminates, commonly known as FR-4, are widely utilized in the electronics industry. These insulation sheets combine epoxy resin with glass fiber reinforcement, resulting in a material with superior mechanical strength and electrical insulation properties. FR-4 laminates exhibit excellent dimensional stability, low moisture absorption, and good machinability. Their versatility makes them suitable for printed circuit boards, switchgear components, and electrical enclosures.
Mica Sheets: Natural Mineral Insulation
Mica sheets are derived from natural mica minerals, offering unique insulation properties. These sheets possess exceptional heat resistance, low thermal conductivity, and high dielectric strength. Mica's natural laminar structure allows for easy splitting into thin, flexible sheets. This characteristic makes mica insulation sheets ideal for applications in high-temperature environments, such as in electrical motors, generators, and transformers. Mica sheets also provide excellent arc resistance, enhancing safety in electrical systems.
Material Properties and Performance Comparisons
Thermal Conductivity and Heat Resistance
The thermal properties of insulation sheets are crucial for their performance in various applications. Polyimide films exhibit low thermal conductivity, typically ranging from 0.12 to 0.16 W/mK, making them excellent thermal insulators. They can withstand continuous operating temperatures up to 250°C, with short-term exposure capabilities reaching 400°C. Epoxy glass laminates have slightly higher thermal conductivity, around 0.3 W/mK, but still provide good insulation. Their heat resistance is lower compared to polyimide, with continuous operating temperatures up to 130°C. Mica sheets excel in heat resistance, withstanding temperatures up to 600°C, making them suitable for high-temperature applications.
Dielectric Strength and Electrical Properties
Dielectric strength is a critical parameter for insulation sheets, determining their ability to withstand electric fields without breakdown. Polyimide films boast impressive dielectric strength, typically ranging from 200 to 300 kV/mm. This high value ensures excellent electrical insulation even in thin layers. Epoxy glass laminates offer dielectric strength around 20-30 kV/mm, suitable for most electronic applications. Mica sheets provide exceptional dielectric strength, often exceeding 60 kV/mm, making them ideal for high-voltage insulation. Additionally, the volume resistivity of these materials plays a crucial role in their insulation performance. Polyimide films and mica sheets exhibit volume resistivity in the range of 10^16 to 10^18 ohm-cm, while epoxy glass laminates typically have values around 10^14 to 10^16 ohm-cm.
Mechanical Properties and Durability
The mechanical properties of insulation sheets determine their durability and ability to withstand physical stress. Polyimide films offer high tensile strength, typically ranging from 100 to 150 MPa, coupled with excellent flexibility. This combination allows for use in applications requiring both strength and conformability. Epoxy glass laminates excel in mechanical strength, with flexural strength often exceeding 300 MPa. Their rigid structure makes them suitable for load-bearing applications in electrical systems. Mica sheets, while not as strong as epoxy laminates, provide good mechanical stability and can be easily shaped or molded. Their unique layered structure allows for customization in thickness and flexibility, adapting to various application requirements.
Applications Across Different Industrial Sectors
Aerospace and Aviation
In the aerospace industry, electrical insulation sheets play a critical role in ensuring the safety and reliability of aircraft systems. Polyimide films are extensively used in this sector due to their exceptional heat resistance and low weight. These sheets find applications in wire harness insulation, flexible printed circuits for avionics, and thermal blankets for spacecraft. The ability of polyimide films to maintain their properties in extreme temperature conditions, from the frigid upper atmosphere to the heat of re-entry, makes them indispensable in aerospace applications. Additionally, their resistance to cosmic radiation further enhances their suitability for space-based systems.
Power Generation and Distribution
The power generation and distribution sector heavily relies on high-performance insulation sheets to ensure efficient and safe operation of electrical systems. Mica sheets are particularly prominent in this field, used extensively in high-voltage generators, transformers, and switchgear. Their exceptional heat resistance and dielectric strength make them ideal for insulating components subjected to intense electrical and thermal stress. Epoxy glass laminates also find applications in this sector, particularly in the construction of switchboards and electrical panels. These materials provide the necessary insulation and structural integrity required in power distribution equipment, ensuring reliable operation and minimizing the risk of electrical failures.
Electronics and Telecommunications
In the rapidly evolving electronics and telecommunications industry, insulation sheets play a crucial role in miniaturization and performance enhancement of devices. Polyimide films are widely used in flexible printed circuits, enabling the creation of compact and lightweight electronic devices. Their excellent dielectric properties and thermal stability make them suitable for high-frequency applications in telecommunications equipment. Epoxy glass laminates, particularly FR-4, form the backbone of printed circuit board manufacturing. These sheets provide the necessary insulation and mechanical support for electronic components, ensuring signal integrity and thermal management in a wide range of devices, from smartphones to network routers.
Conclusion
Electrical insulation sheets are indispensable components in modern electrical and electronic systems, offering critical protection and performance enhancement across various industries. The diverse range of materials available, from polyimide films to mica sheets, provides engineers and manufacturers with options to meet specific application requirements. As technology continues to advance, the demand for high-performance insulation materials is likely to grow, driving innovation in material science and manufacturing processes. Understanding the properties and applications of these insulation sheets is crucial for professionals in the field to make informed decisions and optimize system performance.
