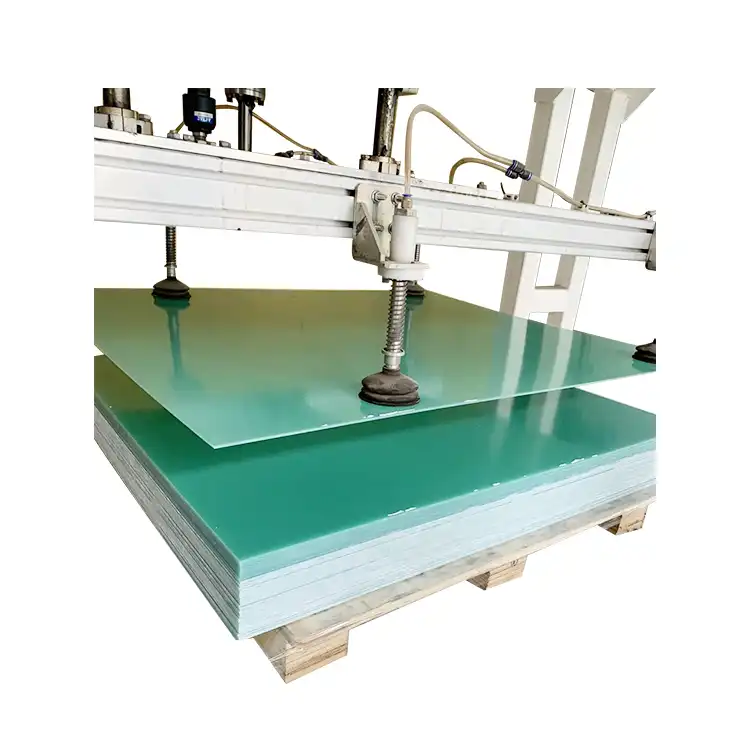

What Are the Different Grades of FR4 Epoxy Sheet?
FR4-Standard Grade
FR4-Standard is the most commonly used grade of FR4 epoxy sheet. It offers a balanced combination of electrical, mechanical, and thermal properties, making it suitable for a wide range of applications. This grade typically has a glass transition temperature (Tg) of around 130-140°C and provides good dimensional stability and electrical insulation. FR4-Standard is often the go-to choice for general-purpose PCBs in consumer electronics, automotive components, and industrial control systems.
FR4-High Tg Grade
FR4-High Tg grade is designed for applications that require enhanced thermal performance. With a glass transition temperature typically ranging from 170°C to 180°C, this grade offers improved resistance to heat-induced deformation and better electrical stability at elevated temperatures. FR4-High Tg is commonly used in high-reliability electronics, aerospace applications, and devices that operate in harsh environments where thermal management is critical.
FR4-Halogen-Free Grade
As environmental concerns grow, FR4-Halogen-Free grade has gained popularity. This grade maintains the excellent electrical and mechanical properties of standard FR4 while eliminating halogenated flame retardants. It's particularly favored in industries with strict environmental regulations or those prioritizing eco-friendly manufacturing processes. FR4-Halogen-Free is often used in medical devices, consumer electronics, and green energy applications.
Performance Characteristics of Each Grade
Thermal Properties
The thermal properties of FR4 epoxy sheets vary significantly between grades. FR4-Standard grade typically has a Tg of 130-140°C, which is sufficient for most general applications. FR4-High Tg grade, with its elevated Tg of 170-180°C, offers superior thermal stability, making it ideal for high-temperature environments. FR4-Halogen-Free grade usually maintains a Tg similar to the standard grade but achieves flame retardancy through alternative, environmentally friendly methods.
Electrical Properties
All grades of FR4 epoxy sheet provide excellent electrical insulation, but there are subtle differences. FR4-Standard grade offers a dielectric constant typically around 4.2-4.8 at 1 MHz, suitable for most applications. FR4-High Tg grade often exhibits slightly better electrical stability at elevated temperatures. FR4-Halogen-Free grade maintains comparable electrical properties to the standard grade, ensuring it can be used as a drop-in replacement in many applications without sacrificing performance.
Mechanical Strength
The mechanical strength of FR4 epoxy sheets is crucial for the structural integrity of PCBs and other applications. FR4-Standard grade provides good mechanical strength with a flexural strength typically around 450-550 MPa. FR4-High Tg grade often offers slightly higher mechanical strength due to its enhanced cross-linking structure. FR4-Halogen-Free grade generally maintains mechanical properties similar to the standard grade, ensuring it can withstand the rigors of manufacturing and use in various applications.
Selecting the Right Grade for Specific Applications
Consumer Electronics
For most consumer electronics applications, FR4 epoxy sheet-Standard grade is often the most cost-effective and suitable choice. It provides the necessary electrical insulation, thermal stability, and mechanical strength for devices like smartphones, laptops, and home appliances. However, for high-end consumer devices that generate more heat or require enhanced reliability, FR4-High Tg grade might be preferred. In regions with strict environmental regulations, FR4-Halogen-Free grade is increasingly being adopted for consumer electronics to meet eco-friendly standards without compromising performance.
Aerospace and Defense
The aerospace and defense industries often require materials that can withstand extreme conditions. FR4-High Tg grade is frequently chosen for these applications due to its superior thermal stability and reliability at elevated temperatures. This grade is particularly suitable for avionics systems, radar equipment, and satellite components where failure is not an option. In some cases, specialized grades of FR4 with even higher Tg values or enhanced electrical properties may be used to meet the exacting standards of aerospace and defense applications.
Industrial and Automotive
Industrial and automotive applications often require FR4 epoxy sheets that can withstand harsh environments and temperature fluctuations. FR4-High Tg grade is commonly used in these sectors, particularly for control systems, power electronics, and sensors that may be exposed to high temperatures. For automotive applications in particular, where under-hood temperatures can be extreme, the thermal stability of FR4-High Tg grade is crucial. In industrial settings where environmental concerns are paramount, FR4-Halogen-Free grade is gaining traction, offering a balance between performance and eco-friendliness.
Conclusion
Understanding the common grades of FR4 epoxy sheet and their specific uses is essential for making informed decisions in electronics manufacturing and design. From the versatile FR4-Standard grade to the high-performance FR4-High Tg and environmentally friendly FR4-Halogen-Free options, each grade offers unique advantages tailored to different applications. By carefully considering the thermal, electrical, and mechanical requirements of a project, engineers and manufacturers can select the most appropriate FR4 grade, ensuring optimal performance, reliability, and cost-effectiveness in their products.
