Standard Dimensional Precision and Surface Finish Specifications
Achievable Tolerances for Different Feature Types
CNC machining of Bakelite sheets can achieve impressive dimensional accuracy across various feature types. For general external dimensions, tolerances of ±0.005" to ±0.010" are standard. Internal features like holes and slots typically fall within ±0.003" to ±0.007". More challenging geometries such as thin walls or deep pockets may require slightly looser tolerances in the ±0.010" to ±0.015" range. With optimized tooling and careful process control, even tighter tolerances down to ±0.001" can be held on critical features.
Surface Roughness Specifications
The surface finish of CNC machined Bakelite parts can be tailored to application requirements. As-machined surfaces typically exhibit roughness values between 63-125 microinches Ra. Further finishing operations can reduce this to 32 microinches Ra or better. For optical or sealing applications, polishing can achieve mirror-like finishes below 8 microinches Ra. The thermosetting nature of Bakelite allows for excellent surface quality retention after machining.
Factors Impacting Precision and Finish
Several factors influence the achievable tolerances and surface finish when CNC machining Bakelite sheets. Tool selection, cutting parameters, and machine rigidity all play crucial roles. The grade and condition of the Bakelite material itself also impacts machinability and finish quality. Environmental factors like temperature fluctuations can affect dimensional stability during machining. Proper fixturing and workholding are essential for maintaining tight tolerances, especially on thin or flexible parts.
How Do Post-Machining Treatments Enhance Performance and Aesthetics?
Heat Treatment for Improved Stability
Post-machining heat treatment can significantly enhance the dimensional stability and mechanical properties of CNC machined Bakelite components. Controlled heating to temperatures between 150-200°C for several hours promotes further cross-linking of the phenolic resin matrix. This process, known as post-curing, reduces internal stresses and moisture absorption, resulting in improved dimensional accuracy and reduced warpage over time. Heat treatment can also boost hardness, impact resistance, and heat deflection temperature for demanding applications.
Surface Coatings for Enhanced Durability
Applying protective coatings to machined Bakelite sheet surfaces can greatly improve wear resistance, chemical resistance, and aesthetic appeal. Common options include epoxy-based paints, polyurethane coatings, and specialized phenolic varnishes. These coatings not only enhance the part's appearance but also provide a barrier against moisture ingress and UV degradation. For electrical applications, conformal coatings can be applied to improve insulation properties and protect against environmental contaminants.
Polishing Techniques for Optical Quality
Advanced polishing techniques can transform the surface of CNC machined Bakelite parts to achieve optical-grade finishes. Multi-stage abrasive polishing using progressively finer grits can produce mirror-like surfaces with roughness values below 1 microinch Ra. For critical optical components, lapping and buffing processes may be employed to achieve ultra-smooth, distortion-free surfaces. These high-quality finishes not only improve aesthetics but can also enhance the part's functionality in optical or fluid-handling applications.
Strategies for Holding Tight Tolerances on Complex Parts
Optimized Toolpath Programming
Achieving tight tolerances on complex Bakelite parts requires careful consideration of toolpath strategies. Adaptive machining techniques that maintain consistent chip loads can improve dimensional accuracy and surface finish. Toolpaths should be optimized to minimize tool deflection, especially when machining deep pockets or thin walls. Roughing operations followed by light finishing passes help maintain geometric accuracy. For intricate features, rest machining strategies ensure complete material removal in tight corners and small radii.
Advanced Fixturing Methods
Proper workholding is crucial for maintaining tight tolerances during CNC machining of Bakelite sheets. Vacuum fixturing can provide uniform clamping pressure across large, flat parts while minimizing distortion. For complex geometries, custom-designed fixtures with conformal support surfaces help distribute clamping forces evenly. In some cases, low-melting point alloys or thermoset compounds can be used to create perfect-fit fixturing that supports delicate or irregularly shaped parts during machining.
In-Process Measurement and Adaptive Control
Implementing in-process measurement and adaptive control systems can significantly improve the dimensional accuracy of CNC machined Bakelite components. Touch probes or laser scanning systems can periodically check critical dimensions during machining, allowing for real-time adjustments to tool offsets or machining parameters. This closed-loop approach compensates for tool wear, thermal expansion, and material variations, ensuring consistent part quality even across large production runs.
Conclusion
CNC machining of Bakelite sheets offers a powerful combination of precision, versatility, and performance for producing high-quality components. By leveraging advanced machining strategies, optimized tooling, and post-processing techniques, manufacturers can achieve tight tolerances and superior surface finishes on complex Bakelite parts. The ability to tailor material properties through heat treatment and enhance durability with protective coatings further expands the application possibilities for CNC machined Bakelite components. As industries continue to demand higher performance and tighter tolerances, the capabilities of CNC machining Bakelite sheets will undoubtedly play a crucial role in meeting these evolving needs.
FAQs
What are the typical tolerances achievable when CNC machining Bakelite sheets?
Standard tolerances range from ±0.005" to ±0.010" for most dimensions, with tighter tolerances down to ±0.001" possible for critical features.
How can surface finish be improved on CNC machined Bakelite parts?
Surface finish can be enhanced through techniques like multi-stage polishing, applying protective coatings, and post-machining heat treatment.
What strategies help maintain tight tolerances on complex Bakelite parts?
Optimized toolpath programming, advanced fixturing methods, and in-process measurement with adaptive control systems are key strategies for achieving tight tolerances on complex geometries.

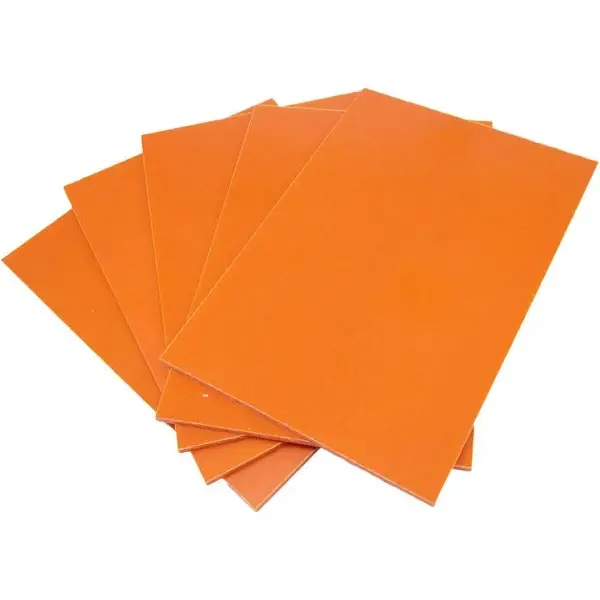

Experience the Quality of Bakelite Sheet Manufacturing with J&Q
At J&Q, we have over 20 years of expertise in producing and supplying high-quality insulating materials, with Bakelite sheets as one of our core products. Our advanced production technology and strict quality control ensure excellent electrical insulation, durability, and heat resistance to meet diverse industrial applications. Whether for electrical equipment, automotive components, or mechanical structures, J&Q provides reliable Bakelite sheets tailored to your needs. Contact us at info@jhd-material.com to learn more about our products and how we can support your projects.
