Understanding Insulation Board Materials for Transformers
Types of Insulation Board Materials
Insulation boards for transformers come in various materials, each with unique properties suitable for different applications. Epoxy sheets are a popular choice due to their excellent electrical insulation properties and mechanical strength. Other common materials include phenolic boards, polyester boards, and composite materials. Each type offers distinct advantages in terms of dielectric strength, thermal conductivity, and resistance to environmental factors.

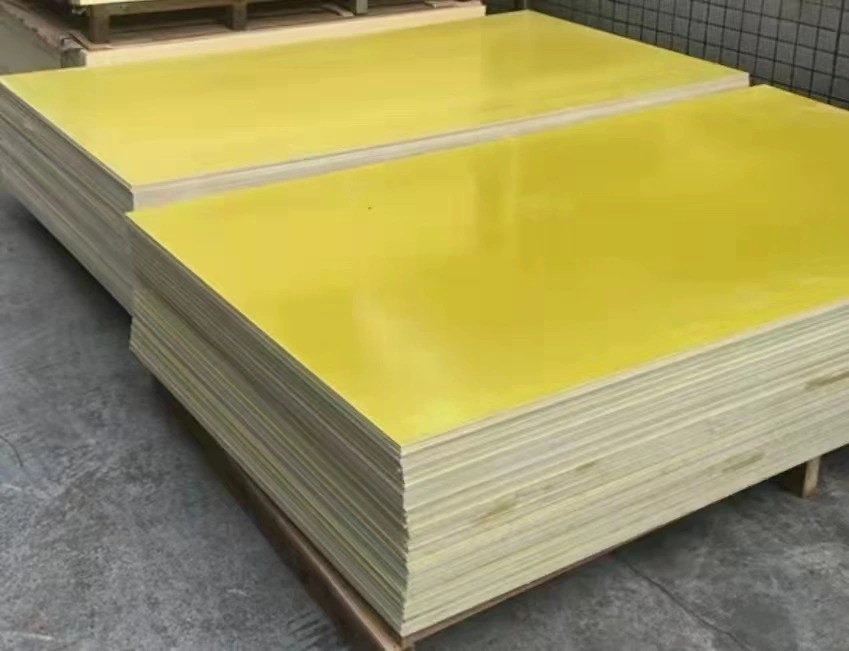

Properties of Epoxy Sheets
Epoxy sheets are renowned for their exceptional electrical insulation capabilities. They possess high dielectric strength, low moisture absorption, and excellent chemical resistance. These properties make epoxy sheets ideal for use in high-voltage applications within transformers. Additionally, epoxy sheets exhibit good dimensional stability and can withstand thermal cycling, ensuring long-term reliability in transformer operations.
Comparative Analysis of Insulation Board Materials
When comparing different insulation board materials, it's essential to consider factors such as dielectric strength, thermal conductivity, mechanical properties, and cost-effectiveness. Epoxy sheets often outperform other materials in terms of electrical insulation and mechanical strength, but they may be more expensive. Phenolic boards offer good heat resistance and machinability, while polyester boards provide excellent flexibility. A thorough analysis of these factors helps in selecting the most suitable material for specific transformer designs.
Key Considerations for Selecting Insulation Boards
Electrical Insulation Requirements
The primary function of insulation boards in transformers is to provide effective electrical insulation. When choosing an insulation board, it's crucial to consider the dielectric strength, which determines the material's ability to withstand high voltages without breakdown. The insulation board must be capable of handling the maximum operating voltage of the transformer with an adequate safety margin. Additionally, factors such as partial discharge resistance and surface resistivity play important roles in ensuring long-term insulation performance.
Thermal Management Considerations
Efficient heat dissipation is essential for maintaining transformer performance and longevity. The thermal conductivity of the insulation board affects the transformer's ability to dissipate heat generated during operation. While insulation boards primarily serve as electrical insulators, some materials offer better thermal management properties than others. Balancing the need for electrical insulation with adequate heat dissipation is crucial in selecting the right insulation board for optimal transformer performance.
Mechanical Strength and Durability
Insulation boards must possess sufficient mechanical strength to withstand the physical stresses encountered in transformer operation. Factors such as compressive strength, flexural strength, and impact resistance are important considerations. The insulation board should maintain its structural integrity under various operating conditions, including thermal cycling and mechanical vibrations. Durability is also a key factor, as the insulation board must retain its properties over the transformer's expected lifespan.
Application-Specific Considerations for Insulation Board Selection
Power Transformer Insulation Requirements
Power transformers operate at high voltages and handle substantial power loads, necessitating robust insulation systems. For these applications, insulation boards must exhibit exceptional dielectric strength and thermal stability. Epoxy sheets are often preferred in power transformer insulation due to their superior electrical properties and ability to withstand high temperatures. The insulation board should also possess excellent oil resistance, as many power transformers use oil as a coolant and insulating medium.
Distribution Transformer Insulation Needs
Distribution transformers typically operate at lower voltages compared to power transformers but still require effective insulation. In these applications, the focus may shift towards cost-effectiveness and ease of manufacturing while maintaining adequate insulation properties. Insulation boards for distribution transformers should offer good electrical insulation, reasonable thermal management, and sufficient mechanical strength to withstand the stresses of installation and operation in various environments.
Specialty Transformer Insulation Considerations
Specialty transformers, such as those used in renewable energy systems or electric vehicle charging stations, may have unique insulation requirements. These transformers often operate in challenging environments and may be subject to frequent load variations. When selecting insulation boards for specialty transformers, factors such as environmental resistance, frequency response, and compatibility with specific cooling systems must be carefully evaluated. Custom-engineered insulation solutions may be necessary to meet the specific demands of these specialized applications.
Conclusion
Choosing the right insulation board for transformer manufacturing is a critical decision that impacts the performance, reliability, and lifespan of the transformer. By carefully considering factors such as electrical insulation properties, thermal management capabilities, and mechanical strength, manufacturers can select the optimal insulation board for their specific application. Epoxy sheets and other advanced insulation materials offer a range of options to meet diverse transformer requirements. Thorough evaluation of these factors, coupled with an understanding of the specific application needs, ensures the selection of an insulation board that enhances transformer efficiency and durability.
