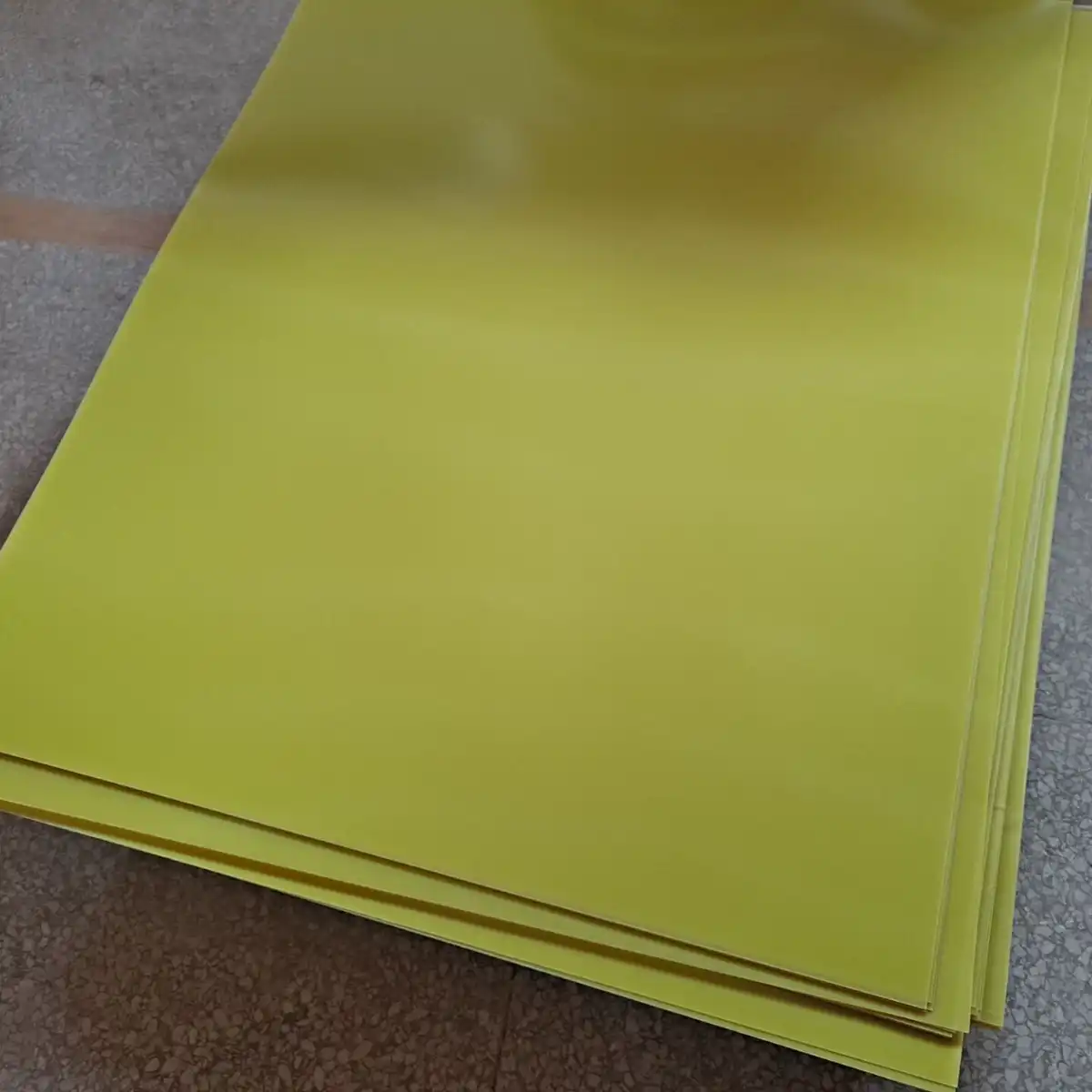

Properties and Characteristics of Epoxy Sheets for High-Voltage Applications
Dielectric Strength and Insulation Resistance
Epoxy sheets used in high-voltage equipment manufacturing boast exceptional dielectric strength, which is crucial for preventing electrical breakdown under intense electric fields. These materials can withstand voltages exceeding 20 kV/mm, making them ideal for applications where high electrical insulation is required. The insulation resistance of epoxy sheets remains stable over time, even under challenging environmental conditions, ensuring long-term reliability in high-voltage systems.
Thermal and Mechanical Properties
High-quality epoxy sheets exhibit remarkable thermal stability, maintaining their electrical and mechanical properties across a wide temperature range. They typically have a heat deflection temperature above 140°C, allowing them to perform reliably in high-temperature environments. Mechanically, these materials offer excellent compressive and flexural strength, as well as high impact resistance, which is essential for withstanding the physical stresses in high-voltage equipment.
Chemical Resistance and Environmental Durability
Epoxy sheets designed for high-voltage applications demonstrate superior resistance to a wide range of chemicals, oils, and solvents. This characteristic is vital for maintaining the integrity of electrical insulation in diverse operating conditions. Furthermore, these materials exhibit low moisture absorption and excellent weathering resistance, ensuring their performance remains consistent even when exposed to harsh environmental factors such as humidity, UV radiation, and temperature fluctuations.
Manufacturing Processes and Quality Control for High-Voltage Epoxy Sheets
Resin Formulation and Reinforcement Selection
The manufacturing of high-quality epoxy sheets for high-voltage applications begins with the careful selection and formulation of epoxy resins. Advanced formulations often incorporate specialized additives to enhance specific properties such as flame retardancy or tracking resistance. The choice of reinforcement materials, typically glass fibers or other high-performance fillers, plays a crucial role in determining the final mechanical and electrical properties of the epoxy sheet.
Production Techniques and Curing Processes
Various production techniques are employed in manufacturing epoxy sheets, including compression molding, vacuum infusion, and continuous lamination processes. Each method offers specific advantages in terms of sheet uniformity, dimensional accuracy, and scalability. The curing process is meticulously controlled to ensure optimal cross-linking of the epoxy resin, which directly impacts the material's electrical and mechanical properties. Advanced curing techniques, such as step-curing or post-curing, may be utilized to achieve superior performance characteristics.
Quality Assurance and Testing Protocols
Rigorous quality control measures are implemented throughout the manufacturing process to ensure the consistency and reliability of epoxy sheets for high-voltage applications. This includes in-process monitoring of key parameters such as resin viscosity, reinforcement distribution, and curing temperatures. Finished sheets undergo comprehensive testing, including dielectric strength measurements, partial discharge tests, and accelerated aging simulations. These quality assurance protocols help guarantee that the epoxy sheets meet or exceed the stringent requirements of high-voltage equipment manufacturing.
Applications and Innovations in High-Voltage Epoxy Sheet Technology
Transformer and Switchgear Components
Epoxy sheets play a crucial role in the manufacturing of transformers and switchgear, serving as insulation barriers and structural components. In power transformers, these materials are used to create spacers, end insulation, and phase barriers, effectively preventing electrical breakdown between windings and other conductive parts. For switchgear applications, epoxy sheets are utilized in the production of insulators, busbars, and arc-quenching chambers, contributing to the overall safety and reliability of the equipment.
Advancements in Nanocomposite Epoxy Materials
Recent innovations in epoxy sheet technology have led to the development of nanocomposite materials, which incorporate nanoscale fillers to enhance specific properties. These advanced epoxy sheets exhibit improved partial discharge resistance, increased thermal conductivity, and enhanced mechanical strength. Nanocomposite epoxy materials are particularly beneficial in high-voltage applications where space constraints necessitate compact designs without compromising insulation performance.
Sustainable and Eco-Friendly Epoxy Formulations
As environmental concerns gain prominence, the high-voltage equipment industry is witnessing a shift towards more sustainable epoxy sheet materials. Manufacturers are developing bio-based epoxy resins derived from renewable sources, reducing the carbon footprint of these essential components. Additionally, research is ongoing to create epoxy formulations with improved end-of-life recyclability, addressing the growing need for environmentally responsible practices in the electrical equipment sector.
Conclusion
The selection of appropriate epoxy sheet materials is crucial for ensuring the reliability, safety, and performance of high-voltage equipment. By leveraging the exceptional electrical insulation properties, mechanical strength, and thermal resistance of advanced epoxy sheets, manufacturers can create robust and efficient high-voltage systems. As technology continues to evolve, innovations in epoxy sheet materials, such as nanocomposites and eco-friendly formulations, are poised to further enhance the capabilities of high-voltage equipment, meeting the ever-increasing demands of the modern electrical grid and industrial applications.
