Physical and Chemical Properties of Bakelite Boards
Thermal Characteristics and Heat Resistance

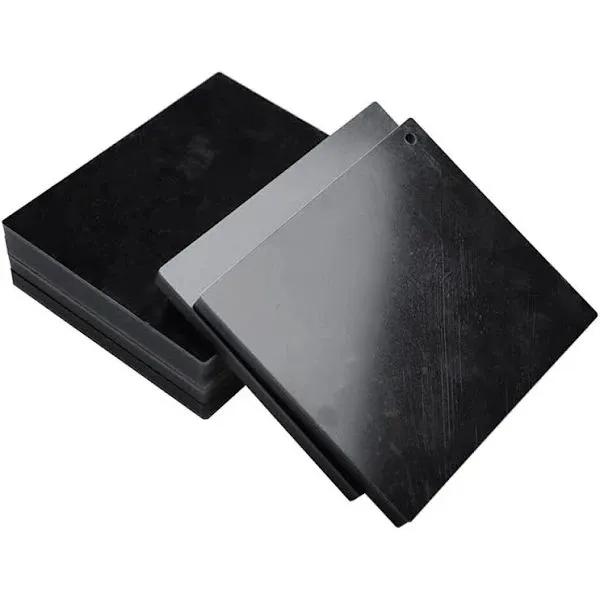

Bakelite boards showcase remarkable thermal properties, making them indispensable in high-temperature applications. These phenolic sheets maintain their structural integrity and electrical insulation capabilities at temperatures exceeding 200°C (392°F). The inherent heat resistance of Bakelite stems from its cross-linked molecular structure, which prevents softening or melting under extreme thermal conditions. This characteristic enables Bakelite boards to serve as reliable components in heat-generating equipment, such as industrial ovens, furnaces, and electrical switchgear.
Electrical Insulation Properties
One of the most salient features of Bakelite sheets is their outstanding electrical insulation. These phenolic Bakelite sheets exhibit high dielectric strength, typically ranging from 15 to 20 kV/mm, depending on the specific grade and composition. The low electrical conductivity of Bakelite makes it an ideal material for manufacturing circuit board substrates, insulating panels, and electrical components. Moreover, Bakelite sheets maintain their insulating properties across a wide range of frequencies, temperatures, and humidity levels, ensuring consistent performance in diverse operating conditions.
Mechanical Strength and Durability
Bakelite boards boast impressive mechanical properties, contributing to their longevity and reliability in various applications. These phenolic sheets demonstrate high compressive strength, typically ranging from 170 to 300 MPa, depending on the grade. The material's inherent rigidity and impact resistance make it suitable for fabricating structural components subjected to mechanical stress. Additionally, Bakelite boards exhibit excellent dimensional stability, maintaining their shape and size even under varying environmental conditions, which is crucial for precision engineering applications.
Manufacturing Processes and Grades of Bakelite Sheets
Raw Materials and Composition
The production of Bakelite boards begins with carefully selected raw materials. The primary components include phenol-formaldehyde resin, which forms the base matrix, and reinforcing materials such as cotton fabric, paper, or glass fibers. The choice of reinforcement significantly influences the final properties of the Bakelite sheet. For instance, cotton fabric-reinforced grades offer superior machinability, while glass fiber-reinforced variants provide enhanced mechanical strength and thermal resistance. The precise formulation of the resin and the type of reinforcement are tailored to meet specific application requirements.
Molding and Curing Techniques
Bakelite boards are typically manufactured through a compression molding process. This involves layering pre-impregnated sheets of reinforcing material with phenolic resin in a mold. The assembly is then subjected to high pressure and temperature, typically around 150-170°C (302-338°F), for a specified duration. During this curing process, the resin undergoes a chemical reaction, forming a three-dimensional cross-linked structure. This irreversible transformation results in the characteristic properties of Bakelite, including its heat resistance and dimensional stability. Advanced manufacturing techniques, such as continuous lamination, allow for the production of large-format Bakelite sheets with consistent quality.
Classification of Bakelite Board Grades
Bakelite boards are available in various grades, each optimized for specific applications. The classification is often based on the reinforcing material and the resin composition. Common grades include:
- Paper-based phenolic (XX): Offers good electrical and mechanical properties at an economical price point.
- Cotton fabric-based phenolic (C): Provides excellent machinability and is widely used in electrical applications.
- Glass mat-reinforced phenolic (G): Exhibits superior mechanical strength and thermal resistance.
- Linen-based phenolic (L): Offers a balance between machinability and mechanical properties.
Each grade is further categorized based on specific properties such as heat resistance, flame retardancy, and electrical characteristics. This diverse range of Bakelite board grades enables manufacturers to select the most suitable material for their particular application requirements.
Industrial Applications and Future Trends
Electrical and Electronic Applications
Bakelite boards have long been a staple in the electrical and electronic industries, owing to their exceptional insulating properties. In switchgear and distribution panels, these phenolic Bakelite sheets serve as arc-resistant barriers and insulating supports. The material's high dielectric strength makes it ideal for manufacturing terminal blocks, busbar supports, and insulating spacers in high-voltage equipment. In the realm of printed circuit boards (PCBs), Bakelite sheets continue to find use in certain niche applications where their heat resistance and dimensional stability are paramount. The material's ability to withstand high temperatures without warping or degrading makes it suitable for PCBs in automotive and industrial control systems exposed to harsh environments.
Mechanical and Structural Applications
Beyond electrical insulation, Bakelite boards find extensive use in mechanical and structural applications. The material's high compressive strength and dimensional stability make it suitable for manufacturing precision components such as gears, bearings, and seals. In the automotive industry, Bakelite is used for producing under-hood components that require high heat resistance and electrical insulation. The aerospace sector leverages Bakelite's lightweight yet durable nature for interior panels and structural elements in aircraft. Moreover, the material's excellent machinability allows for the fabrication of complex shapes and intricate designs, making it valuable in prototyping and custom engineering applications.
Emerging Technologies and Future Prospects
While Bakelite is a well-established material, ongoing research and development continue to expand its potential applications. Recent advancements focus on enhancing the material's properties through novel reinforcements and additives. For instance, the incorporation of nanoparticles into Bakelite formulations has shown promise in improving thermal conductivity and flame retardancy without compromising electrical insulation. In the field of renewable energy, Bakelite boards are being explored for use in solar panel substrates and wind turbine components, leveraging their weather resistance and electrical properties. As industries increasingly prioritize sustainable materials, research into bio-based phenolic resins derived from renewable sources is gaining traction, potentially leading to more environmentally friendly Bakelite alternatives in the future.
Conclusion
Bakelite boards, with their unique combination of electrical insulation, heat resistance, and mechanical strength, continue to play a crucial role in various industries. From electrical switchgear to aerospace components, these versatile phenolic sheets offer reliable performance in demanding applications. As technology advances, Bakelite evolves, with new grades and formulations expanding its capabilities. The enduring relevance of Bakelite boards in modern engineering underscores their importance as a material that bridges traditional reliability with future innovations. Understanding the characteristics and applications of Bakelite empowers engineers and manufacturers to leverage its full potential in their designs and products.
