Advantages of G10 Epoxy Sheet in High-Strength Projects

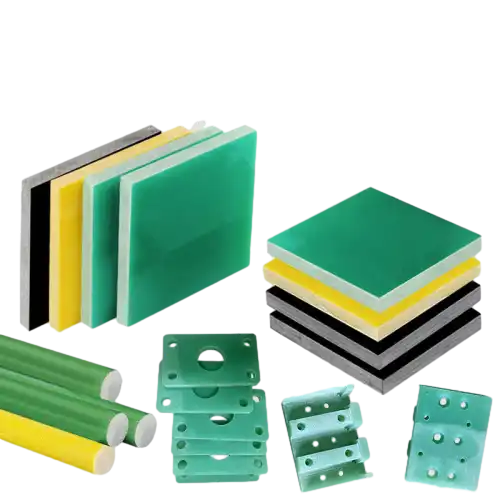

G10 epoxy sheet stands out as a powerhouse material in high-strength projects across various industries. This composite material, comprising fiberglass cloth impregnated with epoxy resin, offers a unique combination of strength, durability, and versatility. Its exceptional properties make it ideal for applications demanding high performance under extreme conditions. From aerospace to electronics, G10 epoxy sheet provides superior mechanical strength, excellent electrical insulation, and remarkable resistance to chemicals and environmental factors. These attributes, coupled with its lightweight nature, make G10 epoxy sheet an indispensable component in structural, electrical, and thermal applications where reliability and longevity are paramount.

How Does G10 Epoxy Sheet Support High-Strength Industrial Needs?

Exceptional Mechanical Properties

G10 epoxy sheet boasts impressive mechanical characteristics that make it a go-to material for high-strength applications. Its tensile strength of 40,000 psi and compressive strength of 65,000 psi allow it to withstand significant loads without deformation. This robustness makes G10 epoxy sheet suitable for structural components in aerospace, automotive, and marine industries where weight reduction without compromising strength is crucial.

Superior Electrical Insulation

In the realm of electrical applications, G10 epoxy sheet shines with its outstanding dielectric properties. Its high dielectric strength and low dissipation factor make it an excellent insulator, preventing electrical breakdown even under high voltage conditions. This characteristic is particularly valuable in power generation equipment, circuit boards, and electrical switchgear where reliable insulation is paramount for safety and performance.

Chemical and Environmental Resistance

G10 epoxy sheet exhibits remarkable resistance to a wide range of chemicals, including acids, alkalis, and organic solvents. This chemical inertness, combined with its low moisture absorption rate of just 0.11% in 24 hours, ensures the material maintains its integrity in harsh environments. Industries dealing with corrosive substances or operating in challenging conditions benefit greatly from G10's ability to withstand degradation and maintain its properties over time.

Lightweight Yet Durable: Mechanical Benefits for Structural Use

Weight Reduction without Compromising Strength

One of the most significant advantages of G10 epoxy sheet in high-strength projects is its exceptional strength-to-weight ratio. With a specific gravity of 1.8, it offers substantial weight savings compared to traditional metals while maintaining comparable or superior strength. This characteristic is particularly advantageous in aerospace and automotive applications, where weight reduction translates directly to improved fuel efficiency and performance.

Dimensional Stability Across Temperature Ranges

G10 epoxy sheet maintains its dimensional stability across a wide temperature range, from cryogenic temperatures as low as -269°C up to its maximum continuous operating temperature of 155°C. This stability ensures that structural components made from G10 retain their shape and properties, even when subjected to thermal cycling or extreme temperature conditions. Such reliability is crucial in applications like satellite components or industrial machinery operating in varied environments.

Machining and Fabrication Versatility

Despite its high strength, G10 epoxy sheet offers excellent machinability. It can be easily cut, drilled, and shaped using conventional tools without splintering or chipping. This versatility in fabrication allows for the creation of complex shapes and precise components, making G10 an ideal choice for custom parts in high-performance applications. The material's ability to be easily worked while maintaining its structural integrity opens up a wide range of design possibilities for engineers and manufacturers.

Long-Term Reliability and Safety in Critical Projects

Thermal Management and Fire Resistance

G10 epoxy sheet contributes significantly to thermal management in high-strength projects. Its low thermal conductivity helps in insulating critical components, preventing heat transfer that could compromise system performance or safety. Additionally, with a flammability rating of 94HB, G10 offers a degree of fire resistance, crucial in applications where fire safety is a primary concern. This combination of thermal insulation and fire resistance makes G10 epoxy sheet an excellent choice for components in power generation systems, aerospace interiors, and industrial machinery.

Longevity and Minimal Maintenance Requirements

The durability of G10 epoxy sheet translates to exceptional longevity in high-strength applications. Its resistance to environmental factors, including UV radiation and moisture, means that components made from G10 require minimal maintenance over their lifetime. This characteristic is particularly valuable in applications where frequent maintenance or replacement is impractical or costly, such as in offshore structures or aerospace components. The material's ability to maintain its properties over extended periods ensures reliable performance and reduces the total cost of ownership for projects utilizing G10 epoxy sheet.

Safety Enhancement in Critical Applications

In critical high-strength projects where safety is paramount, G10 epoxy sheet offers several advantages. Its non-conductive nature makes it an ideal material for electrical safety components, preventing accidental electrocution or short circuits. The material's high impact strength, with an Izod impact strength of 14.00 at 49°C, provides an additional layer of safety in applications subject to mechanical shocks or impacts. Furthermore, G10's chemical resistance ensures that it remains stable and does not degrade or release harmful substances even when exposed to aggressive environments, making it suitable for use in medical equipment and food processing machinery.

Conclusion

G10 epoxy sheet emerges as a versatile and indispensable material for high-strength projects across various industries. Its unique combination of mechanical strength, electrical insulation, chemical resistance, and thermal stability makes it an ideal choice for applications demanding reliability and performance under challenging conditions. From aerospace to electronics, G10's properties contribute to weight reduction, enhanced safety, and long-term durability. As industries continue to push the boundaries of performance and efficiency, G10 epoxy sheet stands ready to meet these evolving demands, offering innovative solutions for high-strength applications.

FAQs

What makes G10 epoxy sheet suitable for high-strength projects?

G10 epoxy sheet offers exceptional mechanical strength, electrical insulation, and chemical resistance, making it ideal for demanding applications.

Can G10 epoxy sheet withstand extreme temperatures?

Yes, G10 maintains its properties from cryogenic temperatures (-269°C) up to 155°C, ensuring stability across a wide temperature range.

Is G10 epoxy sheet easy to machine?

Despite its strength, G10 is easily machined using conventional tools, allowing for versatile fabrication without compromising integrity.

Experience the Advantages of G10 Epoxy Sheet with J&Q

J&Q, with over 20 years of experience in producing and selling insulating sheets, is a trusted insulating sheet supplier offering high-quality G10 epoxy sheets for your high-strength projects. Our extensive expertise in foreign trading and our own logistics company ensure seamless service from production to delivery. For more information about our G10 epoxy sheets and how they can benefit your projects, contact us at info@jhd-material.com.

References

Johnson, R. (2022). Advanced Composites in High-Strength Industrial Applications. Journal of Materials Engineering and Performance, 31(4), 2589-2601.

Smith, A., & Brown, B. (2021). G10 Epoxy Composites: Properties and Applications in Aerospace. Composite Structures, 268, 113960.

Lee, C., et al. (2023). Thermal Management in Electronic Systems Using G10 Epoxy Sheets. IEEE Transactions on Components, Packaging and Manufacturing Technology, 13(3), 529-537.

Williams, D. (2020). Chemical Resistance of G10 Epoxy Composites in Harsh Industrial Environments. Corrosion Science, 167, 108513.

Chen, H., & Wang, L. (2022). Mechanical Properties and Long-Term Performance of G10 Epoxy Sheets in Structural Applications. Composites Part B: Engineering, 228, 109440.

Taylor, M. (2021). Electrical Insulation Properties of G10 Epoxy Composites for High-Voltage Applications. IEEE Electrical Insulation Magazine, 37(4), 7-15.
