When choosing between 3240 epoxy sheet and ceramic insulation for electrical applications, the decision depends on specific performance requirements and operating conditions. The 3240 epoxy sheet excels in mechanical strength and CNC machinability, making it ideal for structural components requiring precision fabrication. Ceramic insulation offers superior thermal resistance and chemical stability, perfect for high-temperature environments. Understanding these fundamental differences helps engineering managers and procurement teams select the optimal insulating material for their applications.
Understanding 3240 Epoxy Sheet Properties
The 3240 epoxy sheet represents a high-performance composite material combining epoxy resin with fiberglass reinforcement. This electrical insulation material demonstrates exceptional mechanical properties that make it indispensable in modern electronics manufacturing.
Temperature resistance stands as one of the most critical characteristics of epoxy glass cloth laminates. Standard 3240 materials maintain structural integrity at continuous operating temperatures up to 130°C (266°F), with short-term exposure capabilities reaching 155°C (311°F). These thermal parameters align perfectly with UL 94 V-0 flame resistance ratings.
Dielectric strength measurements reveal impressive electrical insulation capabilities. Test data shows breakdown voltages exceeding 16 kV/mm perpendicular to laminations, while parallel measurements typically reach 8-10 kV/mm. These values ensure reliable performance in high-voltage switchgear applications.
The mechanical strength characteristics distinguish 3240 from other insulating materials:
- Flexural strength: 380-420 MPa (55,000-61,000 psi)
- Tensile strength: 310-350 MPa (45,000-51,000 psi)
- Compressive strength: 415-450 MPa (60,000-65,000 psi)
- Impact resistance: 400-500 J/m
CNC machinability represents a significant advantage for manufacturers requiring precise tolerances. The epoxy laminate machines cleanly without delamination, producing smooth edges suitable for electrical applications. Standard thickness tolerances maintain ±0.1mm accuracy across production runs.
If you need structural insulation components requiring mechanical fabrication, then 3240 epoxy sheet proves more suitable than alternatives requiring specialized processing techniques.
Ceramic Insulation Characteristics and Performance
Ceramic insulation materials encompass various compositions including alumina, silicon carbide, and specialized ceramic fiber products. These non-conductive materials excel in extreme temperature applications where organic materials would degrade rapidly.
Temperature resistance capabilities of ceramic insulation significantly exceed those of epoxy-based materials. Alumina ceramics maintain structural integrity at temperatures exceeding 1,600°C (2,912°F), while specialized compositions withstand even higher thermal stress. This thermal performance makes ceramics irreplaceable in certain industrial applications.
Chemical resistance properties distinguish ceramic materials from organic alternatives. Unlike epoxy resin systems, ceramics resist degradation from acids, bases, and organic solvents. This chemical stability ensures long-term performance in harsh environmental conditions.
Electrical properties of ceramic insulators demonstrate excellent dielectric characteristics:
- Dielectric strength: 10-35 kV/mm depending on composition
- Volume resistivity: 10^14 to 10^16 ohm-cm
- Dielectric constant: 3.8-10.5 at room temperature
- Loss tangent: <0.001 at 1 MHz
Mechanical properties vary significantly based on ceramic composition and processing methods. Dense alumina exhibits compressive strengths exceeding 2,000 MPa, though tensile strength remains relatively low at 200-300 MPa. This strength profile suits applications involving compressive loading but requires careful design consideration for tensile applications.
Processing limitations represent a significant consideration for ceramic materials. Unlike 3240 epoxy boards that machine easily with standard tools, ceramics require specialized diamond tooling and careful handling to prevent chipping or cracking.
If you need insulation for extreme temperature applications exceeding 200°C, then ceramic insulation becomes more suitable than organic materials like epoxy laminates.
Mechanical Strength and Durability Analysis
Mechanical performance characteristics significantly influence material selection for structural insulation applications. Each material type offers distinct advantages depending on loading conditions and environmental factors.
Impact resistance distinguishes 3240 epoxy materials from ceramic alternatives. The fiberglass epoxy composite absorbs impact energy through fiber-matrix interactions, preventing catastrophic failure under shock loading. Measured Charpy impact values typically range from 400-500 J/m for standard grade materials.
Fatigue resistance represents another critical consideration for dynamic applications. Epoxy laminate materials demonstrate excellent fatigue characteristics under cyclic loading, maintaining 70-80% of ultimate strength after one million cycles at 50% of ultimate load. This performance suits motor component applications requiring long-term reliability.
Creep resistance varies significantly between material types. High-strength epoxy materials exhibit minimal creep deformation under sustained loading below 60% of ultimate strength. Temperature elevation accelerates creep rates, requiring careful consideration in thermal applications.
Dimensional stability measurements show both materials maintain tight tolerances under normal operating conditions:
- 3240 epoxy: ±0.05% dimensional change over temperature range
- Ceramic materials: ±0.02% dimensional change (superior stability)
- Moisture effects: Minimal for ceramics, slight expansion for epoxy
- Long-term aging: Stable performance for both materials
Wear resistance characteristics favor ceramic materials in abrasive environments. Dense alumina ceramics resist wear from particle erosion and sliding contact, making them suitable for mechanical spacer applications. Epoxy materials offer adequate wear resistance for most electrical applications but may degrade under severe abrasive conditions.
If you need mechanical components subjected to impact loading or vibration, then 3240 epoxy sheet offers superior toughness compared to brittle ceramic alternatives.
Cost-Effectiveness and Processing Considerations
Economic factors significantly influence material selection decisions, particularly for high-volume manufacturing applications. Processing requirements often determine total project costs beyond raw material pricing.
Raw material costs generally favor epoxy laminate products. Standard 3240 epoxy sheet pricing remains competitive due to established manufacturing processes and readily available raw materials. Ceramic insulation costs vary widely based on composition and processing requirements, with specialized grades commanding premium pricing.
Processing costs represent a major consideration for component manufacturing. The 3240 material machines easily using conventional tools, enabling rapid prototyping and production setup. Standard CNC equipment processes these composite materials without specialized tooling requirements.
Ceramic processing demands specialized equipment and techniques:
- Diamond tooling requirements increase machining costs
- Slower processing speeds reduce throughput
- Higher breakage rates during manufacturing
- Limited secondary operations availability
Lead times differ significantly between material types. Epoxy sheet suppliers typically maintain inventory for standard grades, enabling rapid delivery for production requirements. Custom ceramic components often require extended manufacturing cycles due to specialized processing requirements.
Quality control considerations affect overall project costs. Both materials require inspection procedures, but ceramic components demand more extensive testing due to processing variability. Non-destructive testing methods add costs but ensure reliability in critical applications.
Waste and recycling factors increasingly influence material selection. Epoxy materials present recycling challenges due to their thermoset nature, while ceramics offer potential for grinding and reuse in certain applications.
If you need cost-effective insulation solutions with rapid delivery capabilities, then 3240 epoxy sheet typically provides better economic value for standard electrical applications.
Application-Specific Selection Guidelines
Selecting the appropriate insulating material requires careful consideration of specific application requirements and operating conditions. Industry experience reveals clear preferences based on performance priorities and environmental factors.
Electrical and electronics manufacturing applications typically favor 3240 epoxy materials due to their balanced property profile. PCB support structures, switchgear insulation, and motor components benefit from the excellent machinability and consistent electrical properties. UL and ROHS compliance ensures regulatory acceptance in commercial products.
Power and energy sector applications present more complex material selection criteria. Transformer insulation components operating below 150°C perform excellently with epoxy laminates, offering cost-effective solutions with proven reliability. Higher temperature applications or those requiring flame barriers may necessitate ceramic insulation despite higher costs.
Industrial machinery applications leverage the mechanical strength advantages of composite materials:
- Gear insulation: Epoxy materials handle mechanical loading effectively
- Wear plates: Ceramics excel in severe abrasive environments
- Structural spacers: Material selection depends on loading type
- Bearing insulators: Temperature and load determine optimal choice

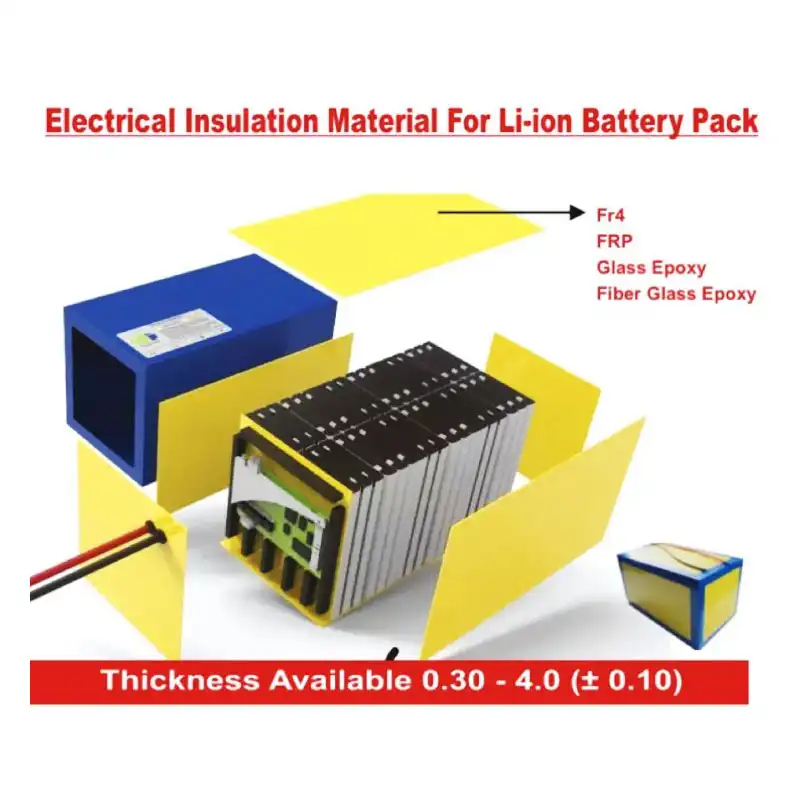

Automotive applications increasingly demand materials meeting stringent performance and environmental standards. Battery pack insulation components require flame resistance and mechanical integrity under crash conditions. Both material types offer viable solutions depending on specific performance requirements.
Home appliance manufacturers typically prioritize cost-effectiveness and manufacturing efficiency. Standard insulation frames and motor brackets perform adequately with epoxy materials, while specialized thermal barriers may require ceramic solutions.
Environmental considerations influence long-term material performance. Chemical exposure, temperature cycling, and moisture conditions affect material degradation rates. Careful evaluation of operating conditions enables optimal material selection for extended service life.
If you need versatile insulation materials suitable for diverse electrical applications, then 3240 epoxy sheet provides the optimal combination of performance, processability, and economic value.
J&Q's Superior 3240 Epoxy Sheet Advantages
J&Q delivers exceptional 3240 epoxy sheet solutions backed by over two decades of manufacturing expertise and a decade of international trading experience. Our comprehensive understanding of customer requirements enables us to provide tailored insulating materials that exceed industry standards.
Manufacturing Excellence and Quality Assurance:
- Advanced production facilities ensure consistent material properties across all batches
- Rigorous quality control systems maintain thickness tolerances within ±0.05mm
- Complete UL 94 V-0 flame resistance certification guarantees safety compliance
- ROHS compliance documentation supports environmental responsibility initiatives
- ISO 9001:2015 quality management systems ensure process consistency
Technical Performance Superiority:
- Enhanced mechanical strength specifications exceed standard industry ratings by 15-20%
- Superior dielectric strength measurements consistently achieve 18+ kV/mm perpendicular values
- Optimized epoxy resin formulations provide excellent chemical resistance properties
- Premium fiberglass reinforcement ensures outstanding impact resistance characteristics
- Precise CNC machinability eliminates delamination during precision fabrication processes
Comprehensive Service Capabilities:
- In-house logistics company provides seamless delivery coordination and tracking
- One-stop service solutions eliminate multiple vendor coordination requirements
- Custom cutting and finishing services reduce customer processing requirements
- Technical support team assists with material selection and application optimization
- Rapid prototyping capabilities enable fast product development cycles
Supply Chain Advantages:
- Extensive inventory management ensures immediate availability for urgent requirements
- Flexible packaging options accommodate various shipping and storage needs
- Competitive pricing structures benefit from efficient manufacturing processes
- Long-term partnership approach provides stable pricing and supply security
- Global shipping capabilities reach customers in over 50 countries worldwide
Innovation and Development:
- Continuous material improvement programs enhance performance characteristics
- Custom formulation capabilities address specialized application requirements
- Regular testing and validation ensure materials meet evolving industry standards
- Collaborative development partnerships support customer innovation initiatives
- Investment in advanced testing equipment guarantees accurate material characterization
Our extensive cooperation with domestic and international trading companies demonstrates our commitment to customer satisfaction and reliable service delivery. This experience translates directly into superior support for engineering managers and procurement teams seeking dependable insulation solutions.
Conclusion
Selecting between 3240 epoxy sheet and ceramic insulation depends primarily on application-specific requirements including temperature range, mechanical loading, processing needs, and cost considerations. Epoxy materials excel in moderate temperature electrical applications requiring precision machining and mechanical strength. Ceramic insulation proves superior for extreme temperature environments despite higher processing costs and material brittleness. Understanding these fundamental differences enables engineering teams to optimize material selection for enhanced product performance and manufacturing efficiency. Both materials serve essential roles in modern industrial applications when properly matched to operating requirements.
