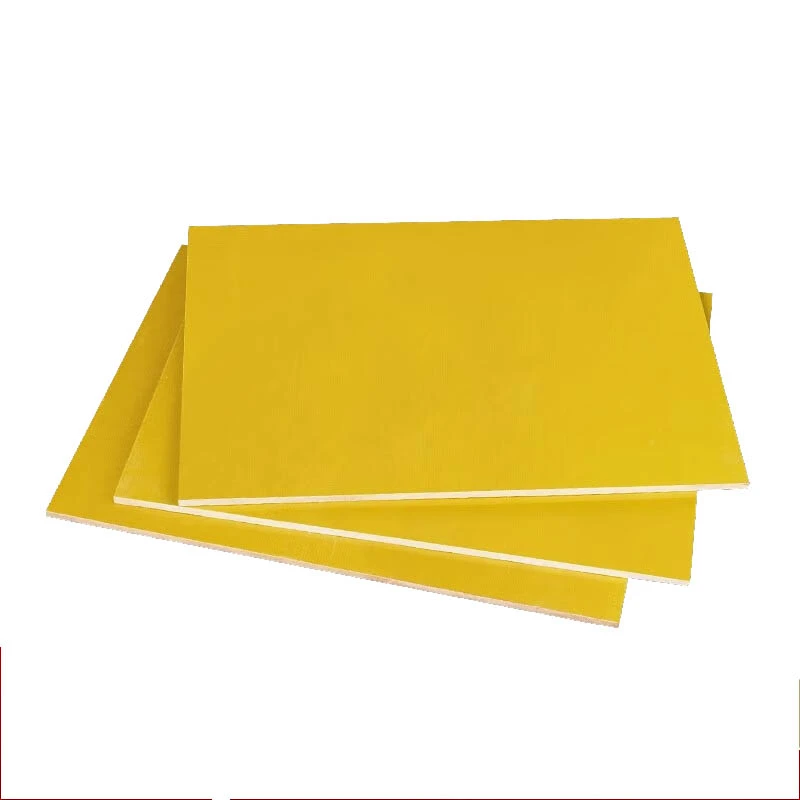

3240 Epoxy Sheet for High-Voltage Applications

3240 epoxy sheet stands as a cornerstone material in high-voltage applications, offering unparalleled performance in electrical insulation and mechanical strength. This versatile composite, crafted from non-alkali fiberglass cloth impregnated with epoxy and phenolic resins, boasts exceptional dielectric properties, heat resistance, and durability. Its ability to maintain stable performance under extreme conditions makes it indispensable in transformers, switchgear, and various high-voltage equipment. The 3240 epoxy sheet's unique combination of electrical insulation, thermal management, and structural integrity ensures reliable operation in the most demanding electrical environments.

Why Is 3240 Epoxy Sheet Ideal for High-Voltage Environments?

Superior Electrical Insulation Properties

3240 epoxy sheet offers outstanding electrical insulation performance, making it highly suitable for high-voltage applications. Its exceptional dielectric strength enables it to resist electrical breakdown under intense electric fields and transient voltage spikes. This capability ensures reliable operation of transformers, switchgear, and other power distribution equipment, preventing arcing and electrical faults. By maintaining stable insulation under high-stress conditions, 3240 epoxy sheet safeguards sensitive components, enhances system reliability, and supports the safe transmission and distribution of electrical energy in both industrial and utility applications.

Exceptional Mechanical Strength

The mechanical resilience of 3240 epoxy sheet is a key factor in its suitability for demanding high-voltage environments. With high tensile strength and excellent resistance to bending, compression, and deformation, the material maintains its structural integrity even when subjected to physical stress, vibration, or thermal expansion. This durability ensures that insulating barriers, support structures, and other critical components remain stable under operational loads. Consequently, 3240 epoxy sheet not only provides electrical insulation but also reinforces the mechanical reliability of high-voltage systems over long-term service.

Resistance to Environmental Factors

3240 epoxy sheet exhibits impressive durability against environmental challenges commonly encountered in high-voltage installations. Its low moisture absorption prevents weakening of insulating properties in humid conditions, while its chemical resistance protects against corrosion and degradation from oils, solvents, and pollutants. This resistance to environmental stress ensures consistent performance and reduces maintenance requirements over the lifespan of transformers, switchgear, and other electrical equipment. By combining electrical, mechanical, and environmental resilience, 3240 epoxy sheet offers a reliable and long-lasting solution for high-voltage industrial and outdoor applications.

Dielectric Strength and Heat Resistance Characteristics

Unparalleled Dielectric Strength

The 3240 epoxy sheet exhibits exceptional dielectric strength, enabling it to endure extremely high voltage gradients without experiencing electrical breakdown. This property is critical for preventing arcing, flashovers, and insulation failures in high-voltage equipment. Its ability to maintain consistent insulating performance under prolonged electrical stress ensures the safety and reliability of transformers, switchgear, and other power systems. By providing robust dielectric protection, 3240 epoxy sheet plays a central role in safeguarding electrical components in both industrial and utility applications where operational reliability is essential.

Thermal Stability Under High Temperatures

Thermal resistance is a defining characteristic of 3240 epoxy sheet, allowing it to retain mechanical integrity and insulating properties even under elevated temperature conditions. High-voltage electrical equipment often generates significant heat during operation, and the sheet's ability to resist thermal degradation ensures stable performance. This thermal stability prevents warping, delamination, or loss of dielectric capability, contributing to the long-term durability and reliability of power system components. Consequently, 3240 epoxy sheet remains a preferred choice in environments where both heat and electrical stress are present.

Low Dielectric Loss Factor

The 3240 epoxy sheet is engineered to exhibit a low dielectric loss factor, which minimizes energy dissipation when subjected to alternating electric fields. This characteristic is particularly important in high-frequency applications, such as transformers and capacitors, where energy efficiency is critical. By reducing dielectric losses, the material helps maintain stable voltage regulation and lowers operating temperatures, thereby extending the service life of electrical equipment. Its combination of low energy loss and high insulating performance ensures optimal efficiency, reliability, and longevity in demanding high-voltage applications.

Use in Transformers, Switchgear, and Power Distribution Equipment

Critical Component in Transformer Construction

In transformer applications, 3240 epoxy sheet serves as a vital insulating material that ensures both electrical safety and mechanical stability. It is widely used for core insulation, winding insulation, and barrier boards, protecting critical components from electrical faults and short circuits. The sheet’s combination of high dielectric strength and mechanical durability allows transformers to operate efficiently under thermal and electrical stress. By maintaining insulation integrity over prolonged service periods, 3240 epoxy sheet contributes to the reliability and longevity of transformers in power generation and distribution networks.

Enhancing Switchgear Reliability

Switchgear systems depend on the exceptional insulating properties of 3240 epoxy sheet to maintain operational integrity and safety. The material is applied in insulating barriers, busbar supports, and arc chutes, where it prevents electrical tracking and withstands high-voltage stress. Its durability under mechanical and thermal loads ensures stable performance in critical protection and control applications. By minimizing the risk of short circuits, flashovers, and equipment failures, 3240 epoxy sheet enhances the reliability, safety, and efficiency of switchgear used in industrial and utility power systems.

Integral to Power Distribution Equipment

In power distribution equipment, 3240 epoxy sheet plays a key role in supporting safe and reliable electrical operations. It is commonly used in the fabrication of insulating components for circuit breakers, isolators, and busbars, protecting against voltage surges and electrical faults. The material’s resistance to electrical tracking, high mechanical strength, and thermal stability ensures long-term performance and reduces maintenance needs. By providing consistent insulation and mechanical support, 3240 epoxy sheet contributes to the durability, safety, and efficiency of modern power distribution infrastructure across industrial and commercial networks.

Conclusion

3240 epoxy sheet has proven to be an indispensable material in high-voltage applications, offering a unique combination of electrical insulation, mechanical strength, and thermal stability. Its widespread use in transformers, switchgear, and power distribution equipment underscores its importance in the electrical industry. As the demand for reliable and efficient high-voltage systems continues to grow, the role of 3240 epoxy sheet in ensuring safe and efficient power distribution remains crucial. Its ongoing development and application will undoubtedly contribute to advancements in electrical engineering and power system design.

FAQs

What makes 3240 epoxy sheet suitable for high-voltage applications?

3240 epoxy sheet is ideal for high-voltage applications due to its excellent dielectric properties, high mechanical strength, and thermal stability. It provides superior insulation, resists electrical tracking, and maintains its performance under extreme conditions.

Can 3240 epoxy sheet be used in humid environments?

Yes, 3240 epoxy sheet performs well in humid environments. It has low moisture absorption and maintains stable dielectric performance even at high humidity levels, making it suitable for various industrial conditions.

What are the typical thicknesses available for 3240 epoxy sheet?

3240 epoxy sheet is available in thicknesses ranging from 0.5mm to 50mm under normal conditions. Thicker boards of up to 150mm can be produced as required for specific applications.

Experience the Power of 3240 Epoxy Sheet with J&Q

At J&Q, we specialize in manufacturing high-quality 3240 epoxy sheets for high-voltage applications. With over 20 years of production experience and 10 years in international trade, we offer superior products and comprehensive services. Our in-house logistics company ensures seamless delivery worldwide. For more information about our 3240 epoxy sheets, contact us at info@jhd-material.com.
